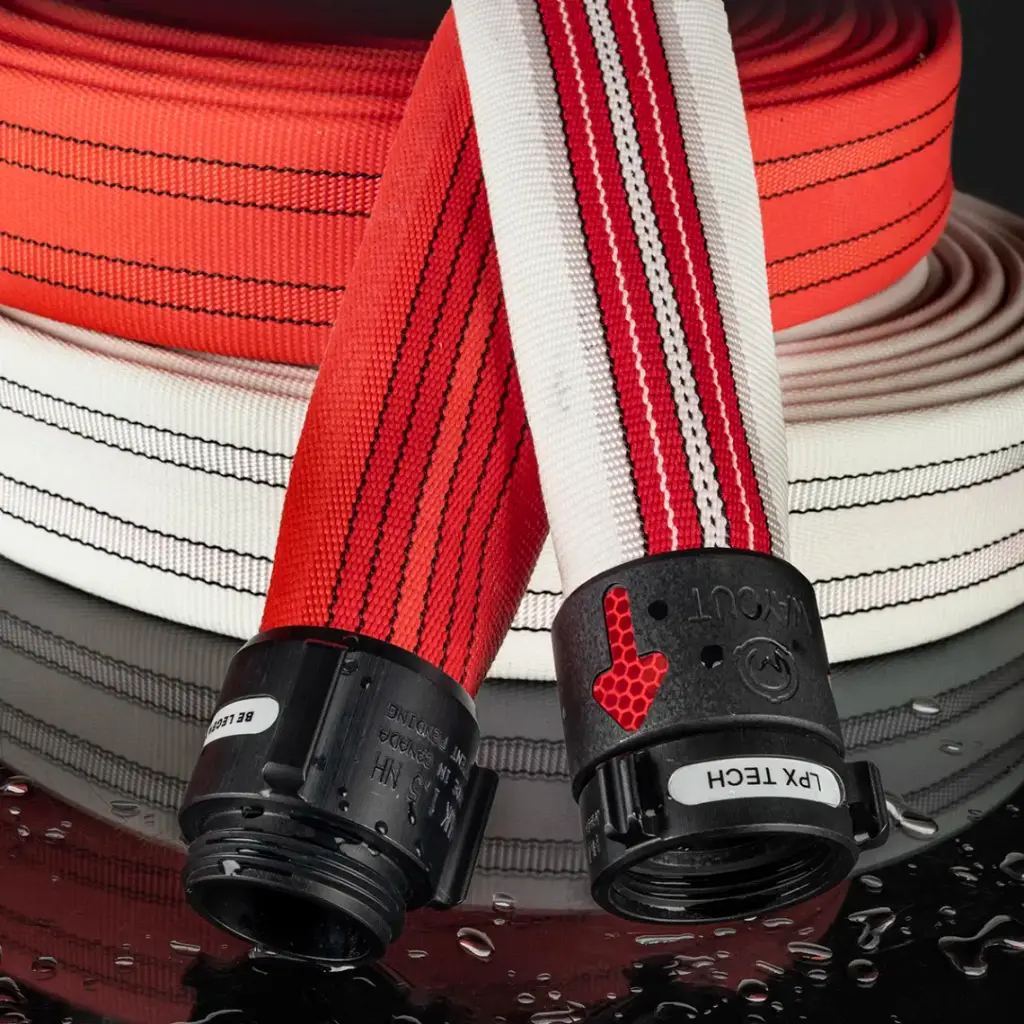

Introducing LPX™ Technology – evolving the small diameter line for low pressure attack. Mercedes Textiles' patent-pending technology reinforces only the nozzle-end of the hose to minimize whip & kinking for increased control without sacrificing the lightweight packability & maneuverability of the rest of the line. This is precision innovation – minimum change for maximum effect where it matters most.
KrakenEXO® LPX 1-½” and ExoMetro® LPX 1-¾” offer superior nozzle handling on small diameter, low-pressure attacks – delivering 150-160 GPM at 50-75 PSI with up to 30% less weight than standard 1-¾” hose.
LPX lines are equipped with Mercedes’ patented Breather Technology strips that release trapped air & water for superior packability. Standard with our exclusive black WAYOUT® couplings with red recessed, reflective arrows and iDENTIFY® coding system
KrakenEXO LPX 1-1/2"
KrakenEXO LPX was engineered to advance the 1-1/2” handline to meet the needs of the modern fire service. Delivering 150 - 160 GPM flows at 50 - 75 PSI for up to 30% lighter*, more agile attack packages that increase control and reduce firefighter fatigue – particularly in low manpower situations.
LPX lines are equipped with Mercedes’ patented Breather Technology strips that release trapped air & water for superior packability. Standard with our exclusive black WAYOUT® couplings with red recessed, reflective arrows and iDENTIFY® coding system
Specifications Imperial | Metric 1.5" x 1.5" (KrakenEXO LPX) (38mm x 38mm)
| Specification | Imperial Measurement |
|---|
| Trade size | 1.5 in |
| Bowl size | 1 15/16 in |
| Internal Diameter (dry ID) | 1.67 in |
| ID @ 50 PSI | 1.73 in |
| ID @ 150 PSI | 1.75 in |
| OD @ 150 PSI | 2.01 in |
| FL co-efficient (at 100′) | 13.8 |
| Dry weight (50′ uncoupled) | 13.4 lbs |
| Charged weight (50' coupled @ 100PSI) | 65.9 lbs |
| Coil diameter | 16.5 in |
| Flat width | 2.93 in |
| Edge thickness | .3 in |
| 180 bend thickness | .9 in |
| Service pressure | 400 psi |
| Proof pressure | 800 psi |
| Burst pressure | 1500 psi |
| Attack? | yes |
| Built for low pressure nozzles? | yes |
| Supply? | |
| Potable water safe? | yes |
| UL approved? | yes |
| Warranty? | 2-10-L |
ExoMetro LPX 1.75"
While the original ExoMetro stands on its own as a high-performance low pressure line, adding LPX Technology maximizes nozzle-handling performance for increased control while still offering a lighter, more manageable exact-diameter 1-3/4" line.
Specifications Imperial | Metric 1.75" x 1.5" (ExoMetro LPX) (51mm x 38mm)
| Specification | Imperial Measurement |
|---|
| Trade size | 1.75 in |
| Bowl size | 2 in |
| Internal Diameter (dry ID) | 1.77 in |
| ID @ 50 PSI | 1.79 in |
| ID @ 150 PSI | 1.81 in |
| OD @ 150 PSI | 2.07 in |
| FL co-efficient (at 100′) | 13.7 |
| Dry weight (50′ uncoupled) | 15.2 lbs |
| Charged weight (50' coupled @ 100PSI) | 71.3 lbs |
| Coil diameter | 17 in |
| Flat width | 3 in |
| Edge thickness | .32 in |
| 180 bend thickness | .9 in |
| Service pressure | 400 psi |
| Proof pressure | 800 psi |
| Burst pressure | 1500 psi |
| Attack? | |
| Built for low pressure nozzles? | |
| Supply? | |
| Potable water safe? | |
| UL approved? | |
| Warranty? | 2-10-L |
