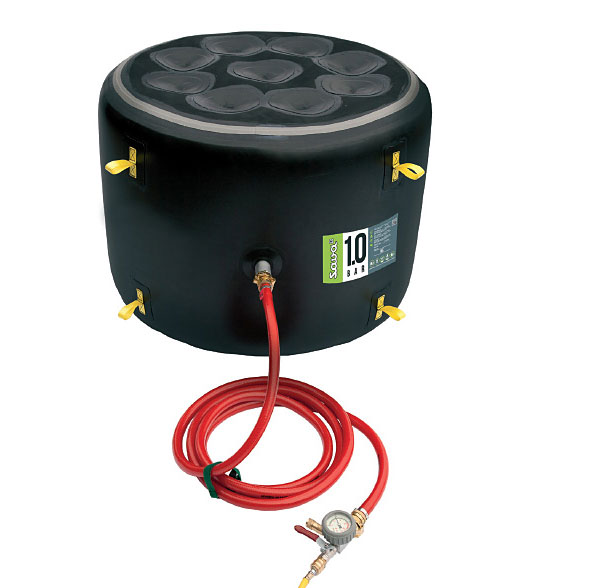

Medium-pressure lifting bags provide high lifts. They have a soft footprint which makes them ideal for lifting softer structures since the lifting force is spread over a wider area

This product is only the air bag. See the connection details below and the related products to complete the set up required

Hook-up/Connection details:

Connect SCBA bottle to regulator
Connect high pressure hose to regulator
Connect other end of high pressure hose to controller
Connect low pressure hoses between controller and bags

Technical Data

Model#	Diameter	Height	Weight	Working Pressure	Air Requirement	Max Lifting Capacity	Max Lifting Height	Inflation Valve Thread Size
MA	61 cm (24")	5 cm (2")	17 lbs (7.5 kg)	14.5 psi (1 bar)	9 cu ft	3 tons	43 cm (17")	R 3/8"-male
MB	76 cm (30")	5 cm (2")	27 lbs (12 kg)	14.5 psi (1 bar)	19 cu ft	4.7 tons	59 cm (23")	R 3/8"-male
MC	91 cm (36")	5 cm (2")	33 lbs (15 kg)	14.5 psi (1 bar)	28 cu ft	6.7 tons	61 cm (24")	R 3/8"-male
MD	122 cm (48")	8 cm (3")	77 lbs (35 kg)	14.5 psi (1 bar)	83 cu ft	12 tons	100 cm (39")	R 3/8"-male

* Top Grid pads can be supplied upon request

Product Type

MA max lift 43cm (17") width is 61cm (24") or MB max lift 59cm (23") width is 76cm (30") or MC max lift 61cm (24") width is 91cm (36") or MD max lift 100cm (39") width is 122cm (48")
