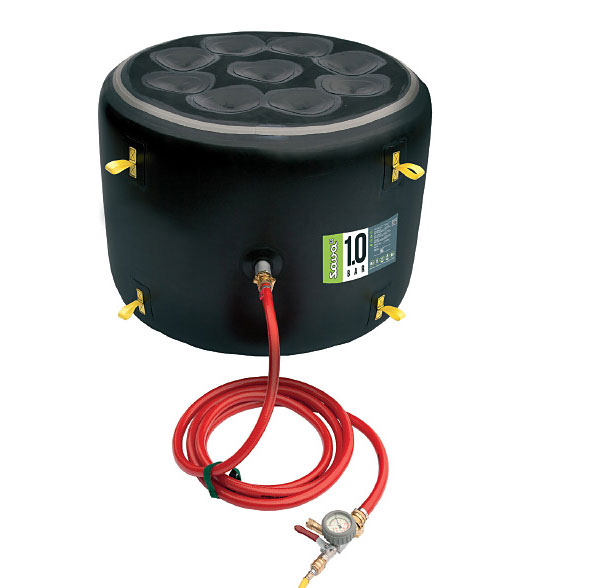

Medium-pressure
lifting bags provide high lifts. They have a soft footprint which makes
them ideal for lifting softer structures since the lifting force is
spread over a wider area
This product is only the air bag. See the connection details below and the related products to complete the set up required
Hook-up/Connection details:
Connect SCBA bottle to regulator
Connect high pressure hose to regulator
Connect other end of high pressure hose to controller
Connect low pressure hoses between controller and bags
Technical Data
Model#
Diameter
Height
Weight
Working Pressure
Air Requirement
Max Lifting Capacity
Max Lifting Height
Inflation Valve Thread Size
MA
61 cm (24")
5 cm (2")
17 lbs (7.5 kg)
14.5 psi (1 bar)
9 cu ft
3 tons
43 cm (17")
R 3/8"-male
MB
76 cm (30")
5 cm (2")
27 lbs (12 kg)
14.5 psi (1 bar)
19 cu ft
4.7 tons
59 cm (23")
R 3/8"-male
MC
91 cm (36")
5 cm (2")
33 lbs (15 kg)
14.5 psi (1 bar)
28 cu ft
6.7 tons
61 cm (24")
R 3/8"-male
MD
122 cm (48")
8 cm (3")
77 lbs (35 kg)
14.5 psi (1 bar)
83 cu ft
12 tons
100 cm (39")
R 3/8"-male
* Top Grid pads can be supplied upon request
Product Type
MA max lift 43cm (17") width is 61cm (24") or
MB max lift 59cm (23") width is 76cm (30") or
MC max lift 61cm (24") width is 91cm (36") or
MD max lift 100cm (39") width is 122cm (48")
