High-pressure
lifting bags are used for lifting the heaviest loads. High-pressure
lifting bags exert maximum force in a concentrated area, making them
ideal when lifting rigid structures in tight places. Their unique
structure also allows use in load shifting, heavy truck or aircraft
recovery and different moving situations.
What
is unique about the Savatech Flat bags is that they start out flat and
remain flat even when fully inflated (flat working surface). With the
Savatech lifting bags at full inflation height, only the sides curl. The
bag doesn’t crown as conventional high-pressure lifting bags do.
Hook-up/Connection details:
Connect SCBA bottle to regulator
Connect high pressure hose to regulator
Connect other end of high pressure hose to controller
Connect low pressure hoses between controller and bags
* Also available in other sizes upon request (6", 9", 18", 22", 27", 34", 37")
Technical Data
| Model | Length | Width | Height | Weight | Working
Pressure | Air Requirement | Max Lifting Capacity | Max Lifting Height |
| SLK 6 | 30 cm (12") | 30 cm (12") | 2.5 cm (1") | 2 kg (4 lbs) | 8 Bar (116 psi) | 1.5 cu ft | 5.5 tons | 16 cm (6.3") |
| SLK 10 | 38 cm (15") | 38 cm (15") | 2.5 cm (1") | 3.5 kg (8 lbs) | 8 Bar (116 psi) | 3 cu ft | 10.1 tons | 21 cm (8.3") |
| SLK 25 | 61 cm (24") | 61 cm (24") | 2.5 cm (1") | 9 kg (20 lbs) | 8 Bar (116 psi) | 14.7 cu ft | 25.2 tons | 34 cm (13.4") |
| SLK 45 | 78 cm (31") | 78 cm (31") | 2.5 cm (1") | 14 kg (31 lbs) | 8 Bar (116 psi) | 32.5 cu ft | 44.6 tons | 42 cm (16.5") |
| SLK-H 7 | 30 cm (12") | 30 cm (12") | 2.5 cm (1") | 2 kg (4 lbs) | 10 Bar (145 psi) | 1.9 cu ft | 6.8 tons | 16 cm (6.3") |
| SLK-H 12 | 38 cm (15") | 38 cm (15") | 2.5 cm (1") | 3.5 kg (8 lbs) | 10 Bar (145 psi) | 3.8 cu ft | 12.1 tons | 21 cm (8.3") |
| SLK-H 32 | 61 cm (24") | 61 cm (24") | 2.5 cm (1") | 9 kg (20 lbs) | 10 Bar (145 psi) | 18 cu ft | 31.8 tons | 34 cm (13.4") |
| SLK-H 56 | 78 cm (31") | 78 cm (31") | 2.5 cm (1") | 14 kg (31 lbs) | 10 Bar (145 psi) | 39.7 cu ft | 55.8 tons | 42 cm (16.5") |
![[710004642] Inflation Hose for Air Lifting Bags - High-Pressure Sava (10m/33ft - 8 bar (116psi) - Yellow)](https://cdn.wfrfire.com/web/image/product.product/12289/image_512/%5B710004642%5D%20Inflation%20Hose%20for%20Air%20Lifting%20Bags%20-%20High-Pressure%20Sava%20%2810m-33ft%20-%208%20bar%20%28116psi%29%20-%20Yellow%29?unique=78ffd6e)

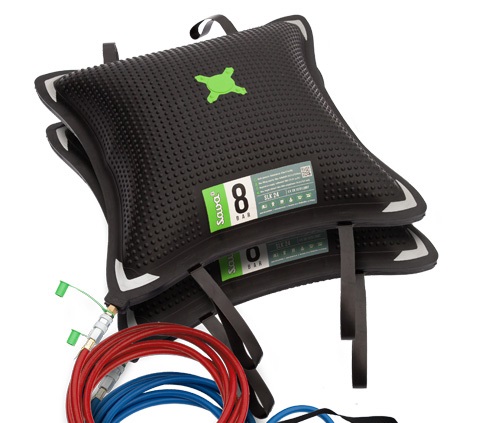

![[710004645] High-Pressure Lifting Air Bags - Conventional Bags - Sava (15"x15", 10 Bar (145 psi))](https://cdn.wfrfire.com/web/image/product.product/4272/image_512/%5B710004645%5D%20High-Pressure%20Lifting%20Air%20Bags%20-%20Conventional%20Bags%20-%20Sava%20%2815%22x15%22%2C%2010%20Bar%20%28145%20psi%29%29?unique=78ffd6e)

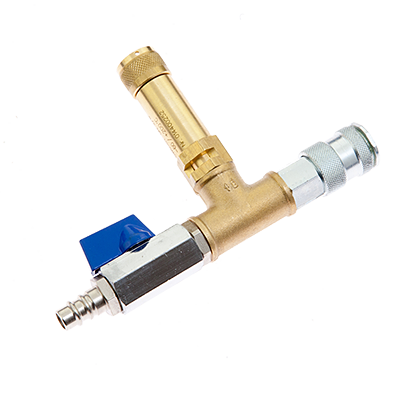

![[P-6867] Shut off & Safety valve, 10 Bar (145 PSI) - for lifting air bags - SavaTech](https://cdn.wfrfire.com/web/image/product.product/15535/image_512/%5BP-6867%5D%20Shut%20off%20%26%20Safety%20valve%2C%2010%20Bar%20%28145%20PSI%29%20-%20for%20lifting%20air%20bags%20-%20SavaTech?unique=78ffd6e)

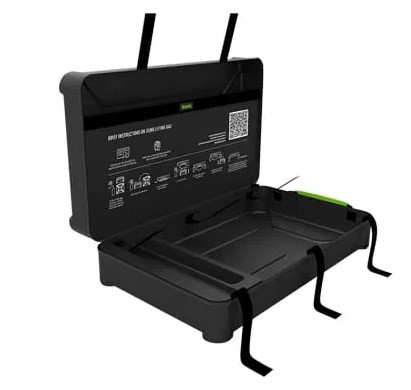

![[P-9804] Sava Protective Case For EXP Controllers](https://cdn.wfrfire.com/web/image/product.product/29975/image_512/%5BP-9804%5D%20Sava%20Protective%20Case%20For%20EXP%20Controllers?unique=78ffd6e)

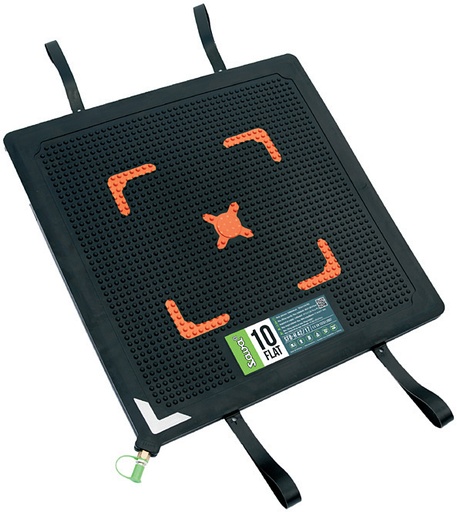

![[P-9459] High-Pressure Lifting Air Bags - Flat Bags 10 Bar (145 PSI) - Sava](https://cdn.wfrfire.com/web/image/product.template/9459/image_512/%5BP-9459%5D%20High-Pressure%20Lifting%20Air%20Bags%20-%20Flat%20Bags%2010%20Bar%20%28145%20PSI%29%20-%20Sava?unique=78ffd6e)
