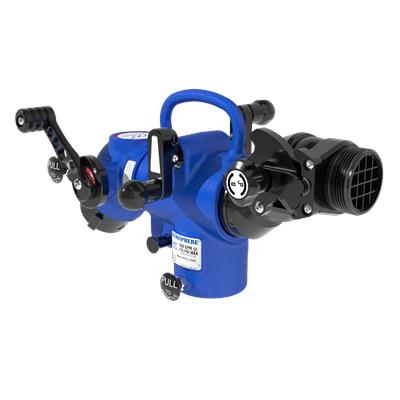

Flow range up to 500 gpm (2000 l/min). The monitor features a
swiveling 90 degree valved inlet and a rotating swiveling outlet. The
outlet is manually adjustable via a double ball swivel, angled 40
degrees from the main waterway, capable of sweeping 80 degrees, and can
be rotated about the main waterway a full 360 degrees by a hand crank.
Outlet has a built-in stream straightener. The quarter turn ball valve
has a bail type handle, which locks in the closed position, to prevent
accidental discharge. Attachment to the various mounting options is as
easy as sliding the socket at the base of the monitor onto the quick
attach mount. A rotation release lever that is separate from the release
pin allows the monitor to be rotated about its mount without the need
to release the monitor from its mount. Water pressurized pins prevent
the monitor from rotating or releasing while flowing. A built-in
carrying handle and lightweight aluminum construction make transport and
deployment quick and easy. Standard inlet is 2.5" NH (65mm) rocker lug
coupling. Standard outlet is 2.5" NH (65mm) rigid male threads.
