High-Flow, Versatile Mountable Monitor
The Hemisphere™ Mountable Monitor provides high-flow water delivery in challenging firefighting environments, reaching up to 500 GPM (2000 LPM). Engineered for adaptability, this monitor features 360-degree rotation, allowing precise targeting in hard-to-reach areas. With multiple mounting options and a lightweight, portable design, the Hemisphere™ monitor is easy to deploy and maneuver, providing reliable water flow control for firefighting operations in confined or elevated spaces for both industrial and municipal departments

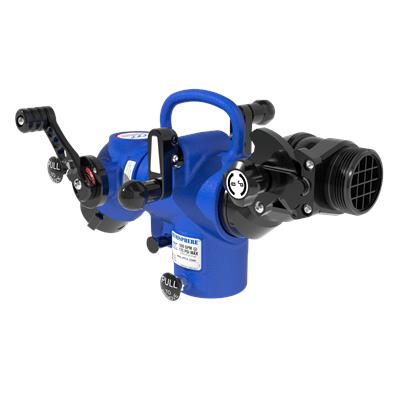

The monitor features a swiveling 90 degree valved inlet and a rotating swiveling outlet. The outlet is manually adjustable via a double ball swivel, angled 40 degrees from the main waterway, capable of sweeping 80 degrees, and can be rotated about the main waterway a full 360 degrees by a hand crank. Outlet has a built-in stream straightener. The quarter turn ball valve has a bail type handle, which locks in the closed position, to prevent accidental discharge. Attachment to the various mounting options is as easy as sliding the socket at the base of the monitor onto the quick attach mount. A rotation release lever that is separate from the release pin allows the monitor to be rotated about its mount without the need to release the monitor from its mount. Water pressurized pins prevent the monitor from rotating or releasing while flowing. A built-in carrying handle and lightweight aluminum construction make transport and deployment quick and easy. Standard inlet is 2.5" NH (65mm) rocker lug coupling. Standard outlet is 2.5" NH (65mm) rigid male threads.
Key Features:
- Flow Capacity: Delivers up to 500 GPM (2000 LPM), ideal for a range of firefighting applications
- 360° Aiming: Allows water to be directed precisely, enhancing flexibility in confined spaces
- Quick-Attach Mounting System: Securely mounts to various surfaces, with options like I-beam, hitch, and tank lip clamps for versatile use
- Lightweight Aluminum Construction: Easy to transport with a built-in carrying handle, ensuring quick setup and deployment
- Water Pressurized Safety Pins: Prevents accidental rotation/release during operation, adding safety and control
- Adjustable Stream Straightener: Built-in straightener ensures optimized stream reach and minimal turbulence
- Flow Control: Quarter-turn ball valve with a locking bail handle for precise flow management and to prevent unintentional discharge
- Wide Compatibility: Standard inlet and outlet sizes of 2.5” BAT or NHT or WCT fittings, with options for Storz and other quick-connect attachments
Weight: 22.6 lbs. (10.3kg)
| Thread Type | 65mm (2.5") BAT or 65mm (2.5") NHT or 65mm (2.5") WCT |
