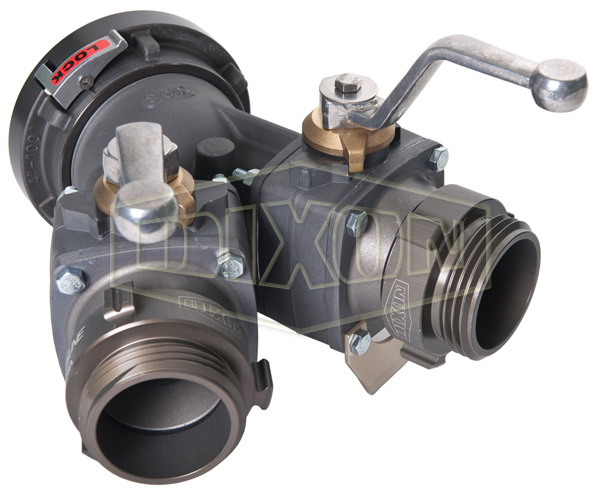

Gated Wye Ball Valve Storz Inlet w/ Male Outlet

Thread Type
- 100mm (4") Storz x Two (2) 65mm (2.5") Male BAT
- 100mm (4") Storz x Two (2) 65mm (2.5") Male WCT
- 100mm (4") Storz x Two (2) 100mm (4") Storz
- 125mm (5") Storz x Two (2) 65mm (2.5") Male BAT
- 125mm (5") Storz x Two (2) 100mm (4") Storz
- 125mm (5") Storz x Two (2) 125mm (5") Storz
- 100mm (4") Storz x Two (2) 65mm (2.5") Storz

This combination does not exist.

Dixon

Applications

This valve will feed two smaller attack lines from one large diameter supply line. The 2.5" outlet is a gated ball valve resulting in a safe controlled flow of water.

Use

Can be used to distribute water in the opposite direction

Construction

High strength aluminum alloy, 356-T6
Finish hardcoat anodized- minimum thickness 0.001"
Comes complete with a carrying handle.

Thread Type

100mm (4") Storz x Two (2) 65mm (2.5") Male BAT or 100mm (4") Storz x Two (2) 65mm (2.5") Male WCT or 100mm (4") Storz x Two (2) 100mm (4") Storz or 125mm (5") Storz x Two (2) 65mm (2.5") Male BAT or 125mm (5") Storz x Two (2) 100mm (4") Storz or 125mm (5") Storz x Two (2) 125mm (5") Storz or 100mm (4") Storz x Two (2) 65mm (2.5") Storz

Gated Wye Ball Valve Storz Inlet w/ Male Outlet

CND 1,736.00 1736.0 CAD CND 1,736.00
