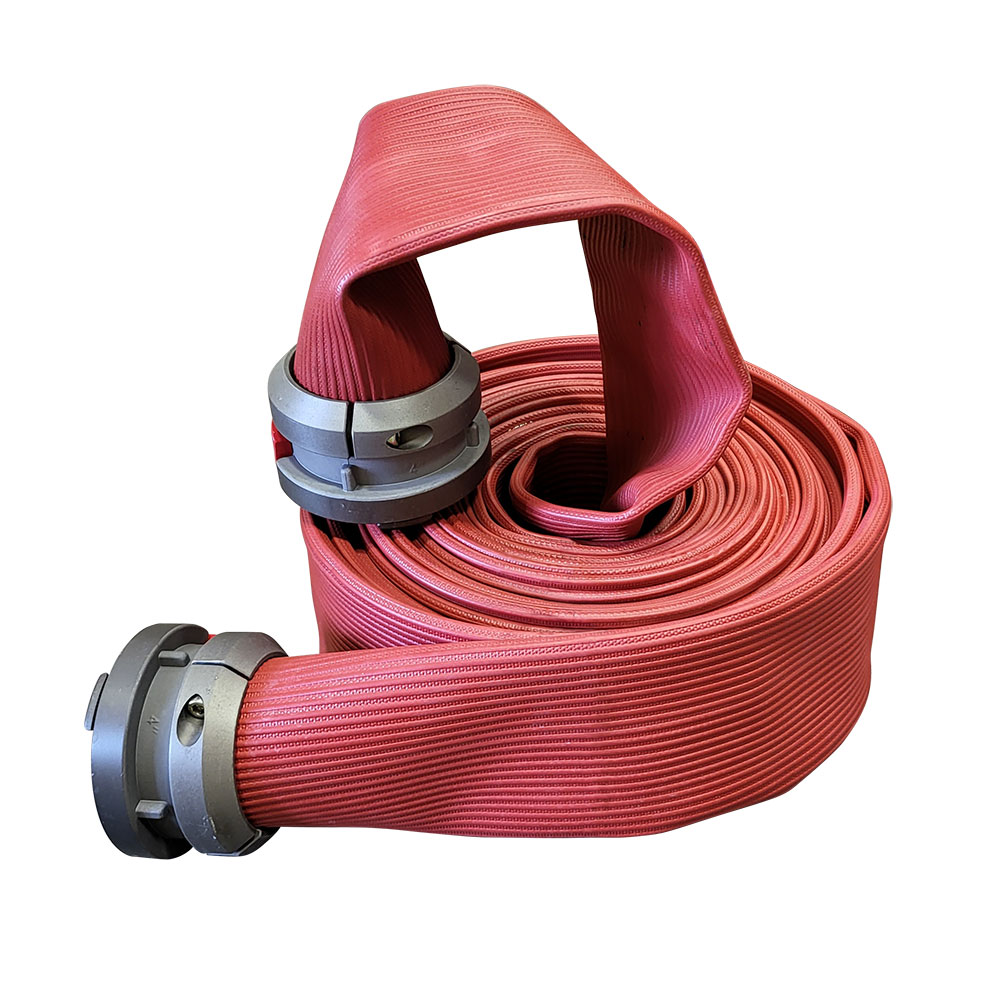

Frontier Supply Hose is a through the weave, synthetic,
nitrile rubber hose which has excellent resistance to fuels, chemicals,
oils, heat and environmental pollutants. It is impervious to molds,
mildew and other airborne organisms. Frontier Supply Hose is
specifically designed to be maintenance free so it can just be wiped
down and returned to service. Hose is available in red and yellow. Comes
standard with locking Storz couplings installed. Warranty covers 10 year against manufacturing defects and lifetime against delamination.
When subjected to a static pressure of 100 PSI, hose shall be capable of withstanding a surface
temperature of 1200 degrees F for minimum of two minutes without rupture or damage to the synthetic
reinforcement. Meets NFPA 1961 Current Addition 2020 Standard for Fire Hose.
Applications:
- LDH supply hose
- Supplying standpipe systems
- Supply standalone portable hydrants
- Pumper to pumper relay
- -35C degree cold rated
| Hose Size (Diameter) | Service Pressure | Pressure Test | Burst Pressure | Weight 100' Uncoupled | 100' Coil Diameter |
|---|
| 4" (100mm) | 250 psi | 500 psi | 750 psi | 75lbs. (34kg) | 24" (61cm) |
| 5" (125mm) | 200 psi | 400 psi | 600 psi | 97lbs. (44kg) | 26.5" (67cm) |
