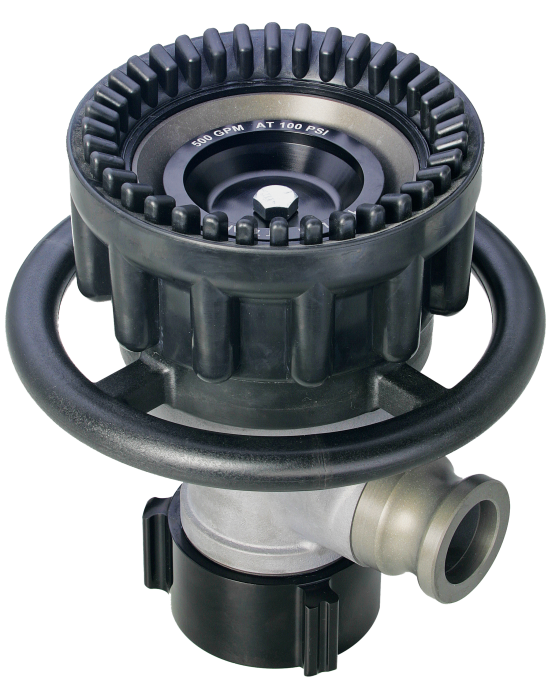

Self Educing Master Stream Nozzles
- Build-in eductor can transform any monitor to a foam station
- Designed to used with Class A or B foam, including AAAF or fluoroprotein
- Include a set of calibrated foam orifice plates. The plates are easily interchangeable to adjust foam proportioning
- Nozzle pattern is adjustable from straight stream to variable fog angles
- Baffle is easily removed for flushing debris
- Simple design and rugged construction ensure low maintenance and long service life
- Include an industrial grade UV-resistant pick-up hose with fast connection fitting
- Length of Pick-up hose is 118"(3m) and the hose diameter is 1.5"(38mm).
- Lightweight hardcoat anodized aluminum
- For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need
| Flow Control Style | One single gallonage flow, and does not change with pattern |
| Flow Settings at 100 PSI (7 Bar) | 350 GPM (1325 LPM) / 500 GPM (1900 LPM) / 750 GPM (2900 LPM) |
| Inlet Size | 2.5"(65mm) |
| Induction Rates | 0.5%, 1%, 3%, 6% |
| Material | Lightweight alloy |
| Weight | 2.86kg |
| Length | 230mm |
