Frontier Series is available for hose sizes of: 65mm (2.5") and available with only the configurations above.
Designed for versatility with multiple flow settings and combinations of fog and stream
Selectable flow at a pressure
Once the flow is selected, it does not change with the pattern
Detent design for the flow selector
Stainless steel spinning teeth produce wide protective fog for firefighters
Flush debris without shutting down
1/4 turn from straight stream to fog
Ball shut-off
Meets NFPA 1964 Standard
Constructed for durability with stainless steel components, protective front bumper, and metal selector ring
Lightweight hardcoat anodized aluminum
Dimensions:
65mm (2.5") configuration w/ pistol grip: 6.8 lbs (3.1 kg) and 10.7" (272mm) long.
65mm (2.5") configuration w/ playpipe: 8.2 lbs (3.7 kg) and 17.7" (450mm) long.
Specifications for

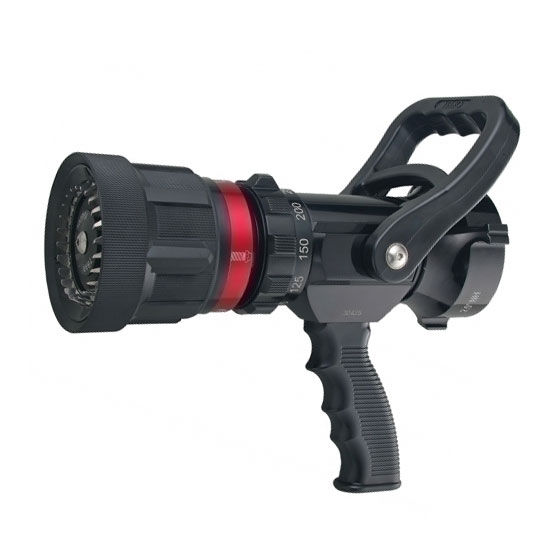

Frontier Selectable Nozzle 65mm (2.5")
Nozzle Configuration
65mm (2.5") BAT (95-125-150-200-250 gpm@100psi)
or
65mm (2.5") WCT (95-125-150-200-250 gpm@100psi)
or

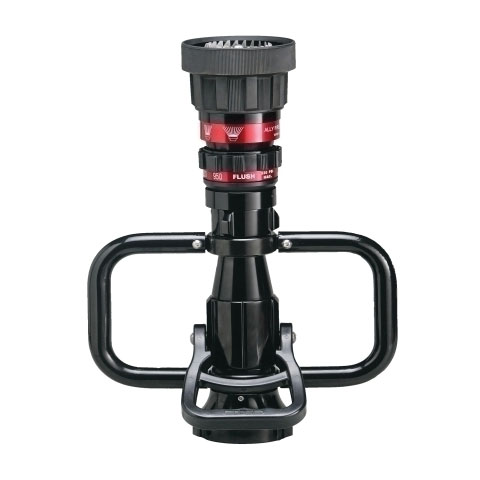

65mm (2.5") BAT (95-125-150-200-250 gpm@100psi) Playpipe
or
65mm (2.5") WCT (95-125-150-200-250 gpm@100psi) Playpipe

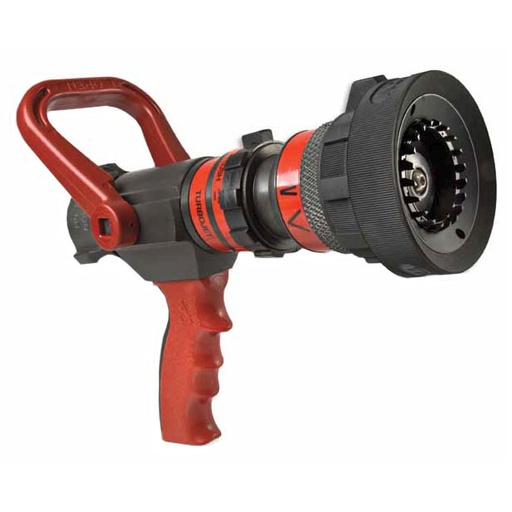

![[465814111] Akron TurboJet Selectable Nozzle 1720, 1763, 1733 (38mm (1.5") NPSH (30-95-125-150-200 gpm@100psi))](/web/image/product.product/3750/image_512/%5B465814111%5D%20Akron%20TurboJet%20Selectable%20Nozzle%201720%2C%201763%2C%201733%20%2838mm%20%281.5%22%29%20NPSH%20%2830-95-125-150-200%20gpm%40100psi%29%29?unique=2b9bba5)
![[710004400] Frontier Breakapart Selectable Nozzle 38mm (1.5")](/web/image/product.product/14293/image_512/%5B710004400%5D%20Frontier%20Breakapart%20Selectable%20Nozzle%2038mm%20%281.5%22%29?unique=2b9bba5)

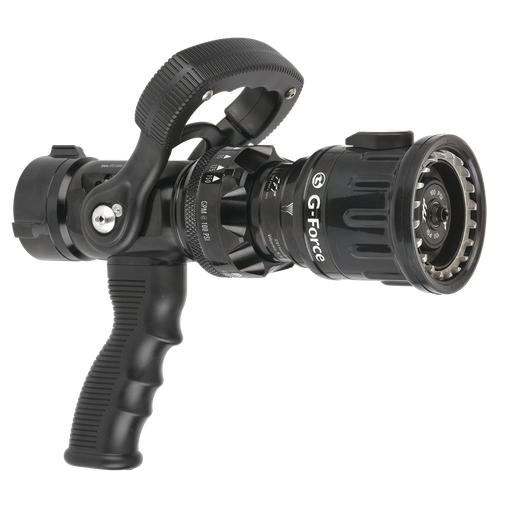

![[V-16869] G-Force Selectable Nozzle (No pistol grip, 38mm (1.5") NPSH (110-230-360-470-570 lpm@700kpa))](/web/image/product.product/16869/image_512/%5BV-16869%5D%20G-Force%20Selectable%20Nozzle%20%28No%20pistol%20grip%2C%2038mm%20%281.5%22%29%20NPSH%20%28110-230-360-470-570%20lpm%40700kpa%29%29?unique=2b9bba5)

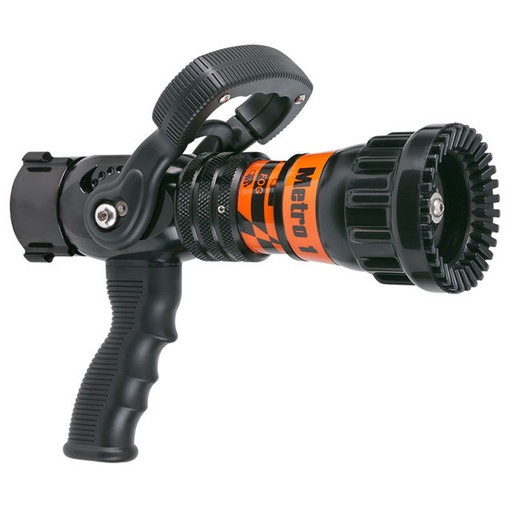

![[710003177] TFT Metro 1 38mm (1.5") NPSH Fixed Nozzle (Tip Only (No Shut Off))](/web/image/product.product/3746/image_512/%5B710003177%5D%20TFT%20Metro%201%2038mm%20%281.5%22%29%20NPSH%20Fixed%20Nozzle%20%28Tip%20Only%20%28No%20Shut%20Off%29%29?unique=2b9bba5)

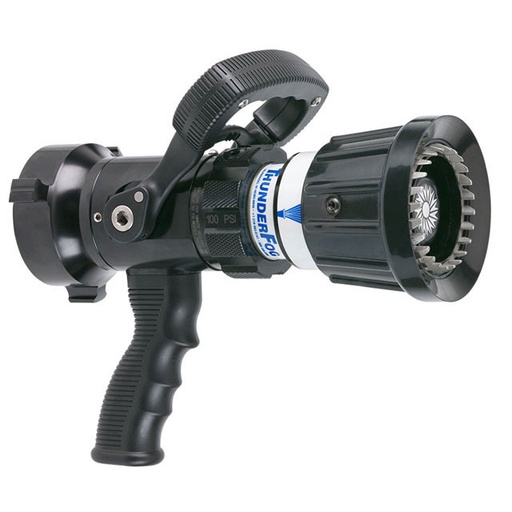

![[465030106] TFT Thunderfog Large Flow Selectable Nozzle (No pistol grip, 38mm (1.5") NPSH (30-95-125-150-200 gpm@100psi), Spinning )](/web/image/product.product/15399/image_512/%5B465030106%5D%20TFT%20Thunderfog%20Large%20Flow%20Selectable%20Nozzle%20%28No%20pistol%20grip%2C%2038mm%20%281.5%22%29%20NPSH%20%2830-95-125-150-200%20gpm%40100psi%29%2C%20Spinning%20%29?unique=2b9bba5)
