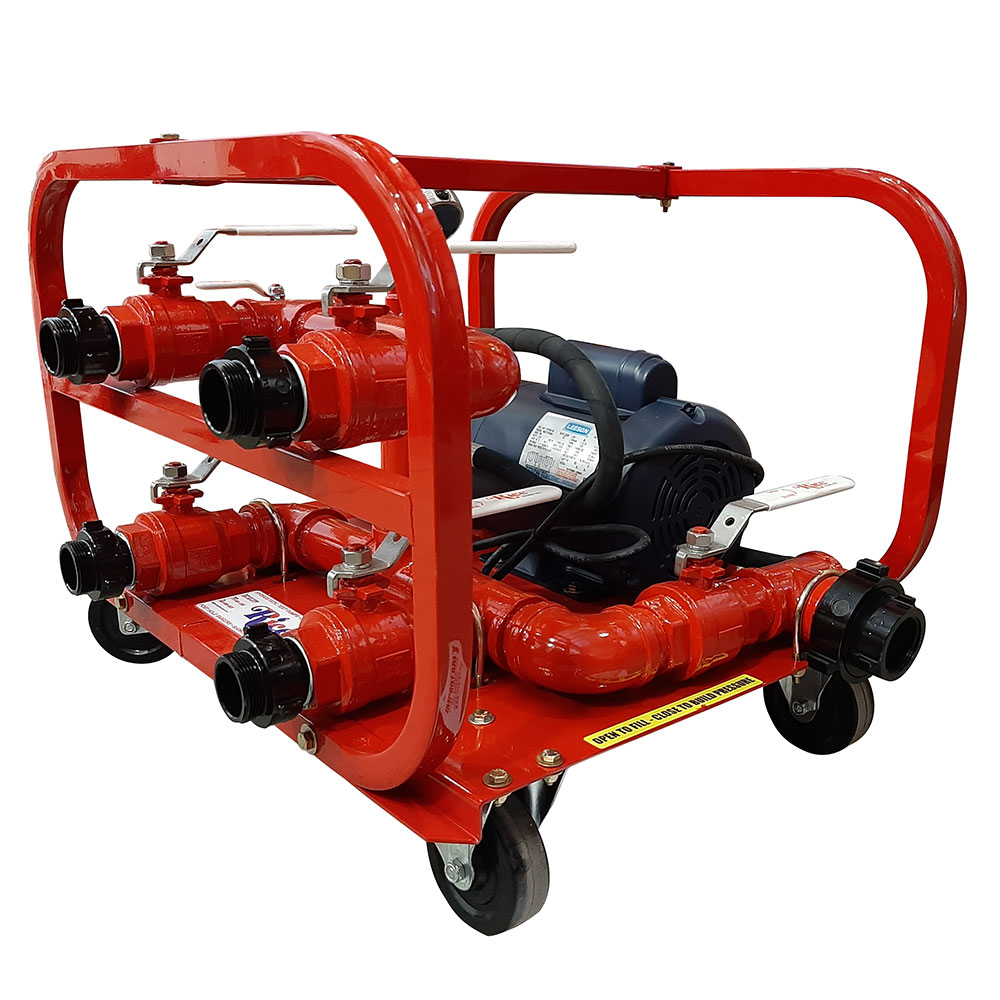

The fire hose tester is capable of testing fire hose up to 6" in
diameter. A large 1.5" inlet allows the Fire Hose Tester to quickly fill
and bleed the lines through a 1.5" manifold. a ball valve strategically
placed on the inlet piping allows the user to fill with large volume at
low pressure and after closing this valve, test with low volume at high
pressure, eliminating the elements that may cause wild lines. The Fire
Hose Tester meets or exceeds test standards set forth by the NFPA 1962.
The Fire Hose Tester is a safer, less costly and more efficient way to
test your fire hose, keeping your pumper ready for action. Gas option
available.
- Four independently controlled outlets, 1.5" stainless steel self
cleaning ball valves with NPT female threads (must order adapters)
- Stainless steel liquid filled gauge ensure accurate readings, with less flutter
- Rugged roll cage construction protects pump from damage
- Built-in safety features such as automatic pressure bypass and exclusive air bleed systems
- 3gpm up to 500psi
- 1 hp. Electric Motor, TEFC, 110/220V, 60 Hertz capability
- 28" x 23" x 19" (71cm x 58cm x 48cm)
- Weighs 158lbs. (72kg)
Note when ordering - this unit comes with NPT female inlet and outlets so you must specify what adapters you will need: 38mm, 65mm or Storz.

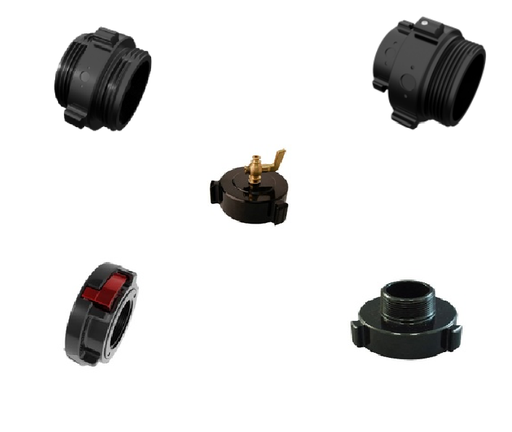

Recommend one 38mm inlet adapter, 4-38mm outlet adapters, 4-65mm
adapters for testing 65mm hose, also available 100mm and 125mm Storz

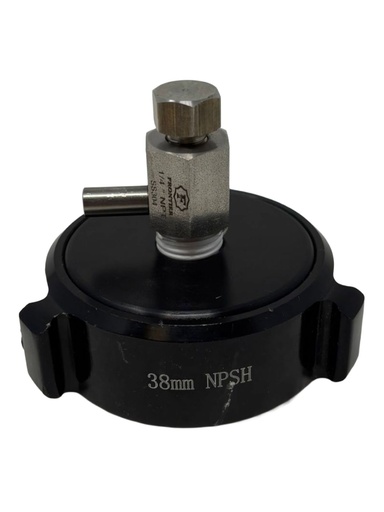

adapters for testing LDH. On discharge side of hose we recommend a 38mm
bleeder test cap and 65mm x 38mm reducer for testing both sizes of
hose. Also available Storz bleeder caps for 4" and 5"
