TFT AH series Storz elbows are cast to a 30-degree down angle for easy connection and to relieve the weight of the hose when connected. Their maximum operating pressure is 300 psi (20 bar) and they are compliant to NFPA 1964 2018 edition which dictates a 900 psi (62 bar) hydrostatic strength test. The aluminum parts are hardcoat anodized per MIL-A-8625 Type III, Class 2 for maximum corrosion protection then powder coated silver. Hose couplings are attached using polymer bearing rings which provide electrical isolation to help prevent galvanic corrosion. All Storz adapters are supplied with pressure gaskets. Suction gaskets are available. All 4” and 5” Storz Rigid coupling may be switched from rigid to swivel by loosening the lock screw.
Hardware Configuration
100mm (4'') x 100mm (4'') or
100mm (4'') x 125mm (5'') or
125mm (5'') x 125mm (5'')

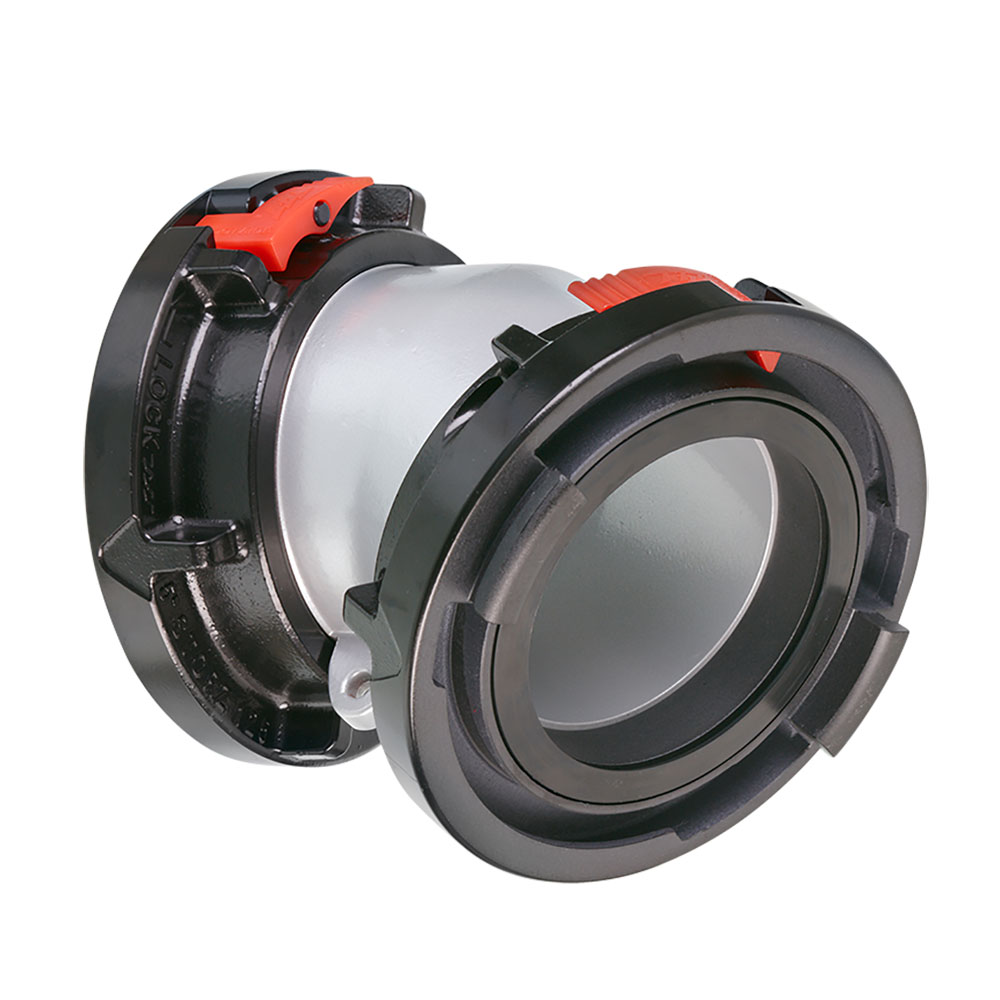

Elbow 30 degree - Storz swivel x Storz solid
Click on products below to add to cart.
