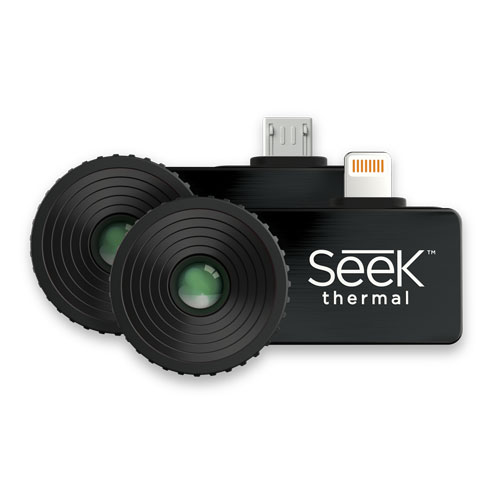

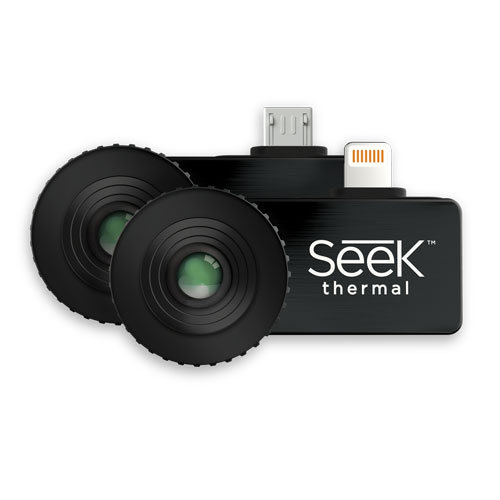

CompactXR Seek Thermal Imaging Camera

Powerful thermal imaging cameras designed for your smartphone

Made for iPhone® and Android™ top models (both Micro-USB and USB-C options are available), Seek Compact transforms your smartphone or tablet into a professional thermal imaging tool. By utilizing the power and convenience of your smartphone, our cameras make it easy to take thermal photos and video, share findings, and send for documentation. Simply connect and detect energy loss caused by air leaks, missing or damaged insulation, inefficient HVAC systems, electrical faults, and much more. On top of all this, Seek Compact cameras are engineered to run on low power from your smartphone and do not require batteries or charging.

Extra Range Thermal Imaging

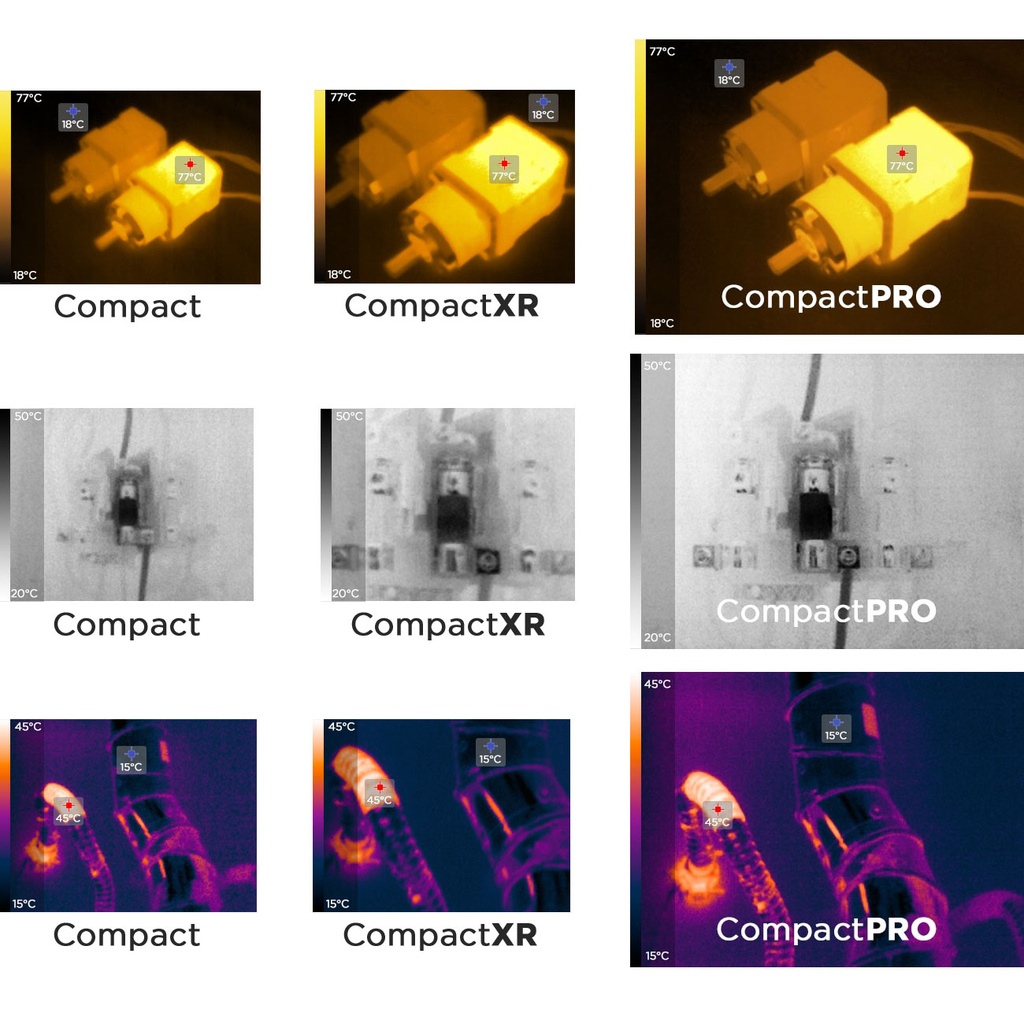

CompactXR provides the same thermal performance as Compact but utilizes a narrow field-of-view lens to nearly double the viewing distance.

• Built for Long-Range Detection - Narrow, 20° field of view quickly scans up to 1,800 feet (550 meters)
• High-Performance Thermal Sensor - 206 x 156 thermal sensor accurately identifies heat signatures
• Best-in-Class Temperature Range - Measure temperatures from -40° to 626°F (-40° to 330°C)
• Customize, Record and Share - Intuitive, free mobile app available on Google Play and iTunes App Store
• Focusable Lens for Quick Identification - Aim and focus from 6 inches to 1,800 feet (549 meters) for the sharpest image
• Comes with its own waterproof case to withstand the elements
• Connect-and-Detect Convenience - Pocket-sized, highly portable, and easy to use
• Capture and share thermal photos and videos

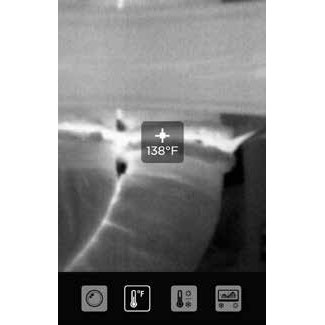

• Display temperature readings in three modes: Spot, Hi/Low, & Threshold

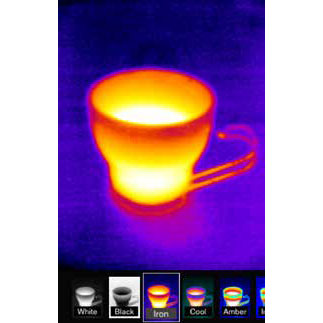

• Customize your experience with a variety of color palettes

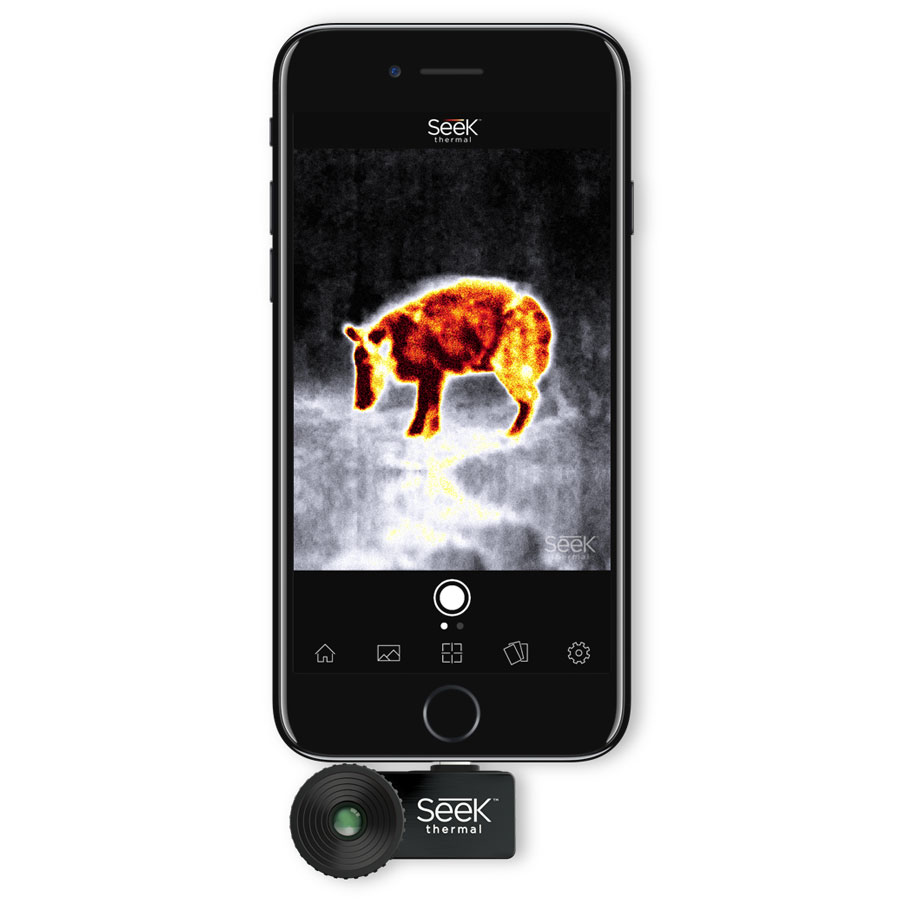

• Free Seek Thermal Mobile App

Specifications

• 206 x 156 Thermal Sensor
• 20˚Field of View
• -40°F to 626°F (-40°C to 550°C)  Temperature Detection
• 1,800 Feet (600 Yards, 300 Meters)  Detection Distance
• Adjustable Focus
• Temp. Display Scale in Fahrenheit or Celsius
• Powered by Smartphone. Consumes up to 280 mW
• 9 Options for colour palettes
• 1" x 1.75" x 1" (2.5cm x 4.5cm x 2.5cm)
• 0.5 ounces (14g)

You can find more on phone compatibility at www.thermal.com/supported.
