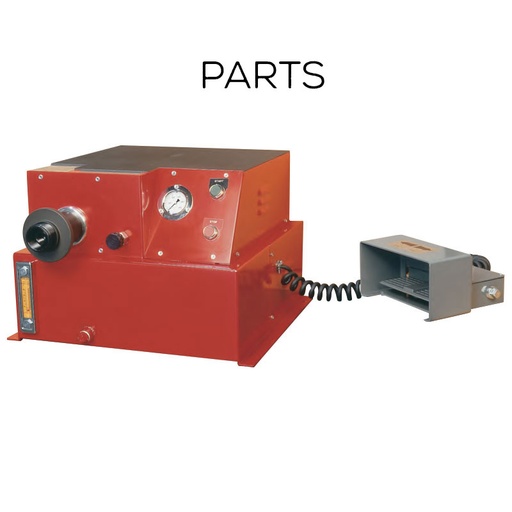

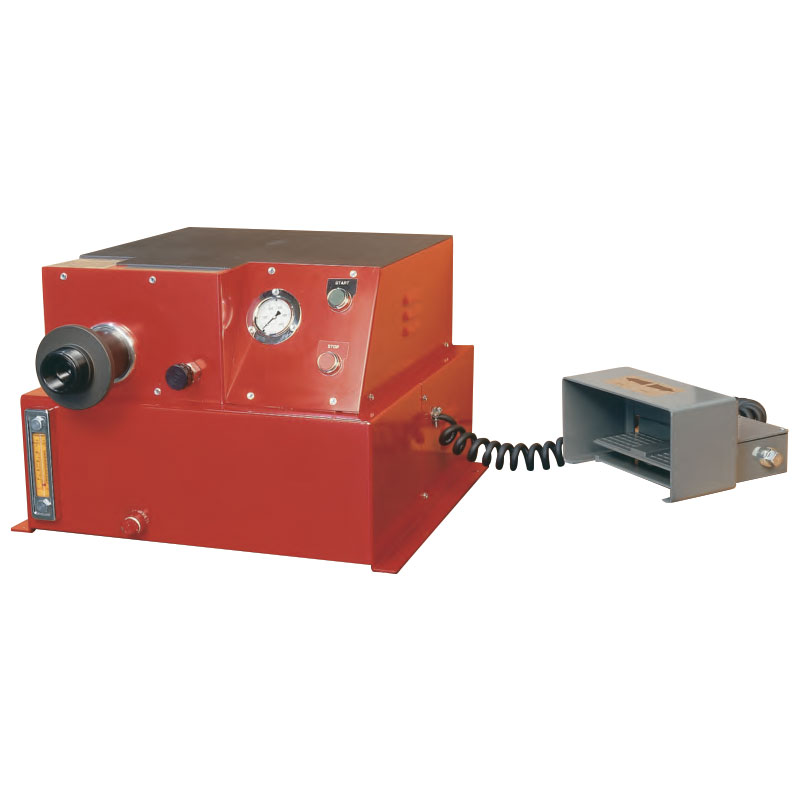

Brute Hydraulic Fire Hose Expander

The Brute Model 2 hose expander unit is made for smooth & simple operation. Every attachment is a secure fit, assuring a safe hose and coupling assembly. The Brute Model 2 will come with operating instructions, including simple diagrams to make each operation easily understood.

Specifications

• Designed for hose manufacturers, high-volume distributors, and fire departments.
• Used to attached 1" - 6" sized couplings.
• 3,000 PSI pump.
• 3,450 RPM motor.
• 1.5 HP, single phase, 220 volts.
• Cylinder: 6" stroke, 4" bore.
• Total Thrust: 38,000#.
• Oil Capacity: 9.5 gallons.
• Manually set external pressure relief valve.
• Dimensions: 22" W x 22" D x 16" H
• Weight: 350 lbs (158.8 kg)

The Brute X-Pander hose expander unit is made for smooth & simple operation. Every attachment is a secure fit, assuring a safe hose and coupling assembly. The Brute X-Pander will come with operating instructions, including simple diagrams to make each operation easily understood.

Specifications

• Designed for forestry services, fire departments, small-scale distributors, and ski areas.
• Used to attach 1" - 3" sized couplings.
• Ideal for in-house use, or mounted in a service van for field repairs.
• Unit weighs 32% less than the previous hand pump model. It also requires 50% fewer strokes to expand, and 75% fewer strokes to release.
• All-in-one design means there are fewer parts, and no hydraulic connections making the X-Pander the most reliable and service free expander ever.
• Dimensions: 13" W x 17" D x 10" H
• Weight: 45 lbs (20.4 kg).

NOTE: The Brute Model 2 and The Brute X-Pander do NOT include any expansion unit assemblies. They are sold separately - see Accessory Products for more information.

Expansion units are compatible with some other manufacturers' expanders, but are specifically designed for the Brute expanders. Other sized expansion units, segments, segment holders, drawbars, adjusting rings, segment springs and drawbar adapters are available upon request.
