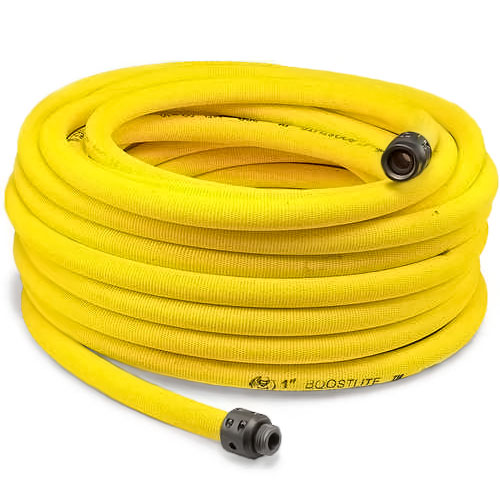

BOOSTLITE® 25mm (1") is the most common hose we recommend in
different lengths and coupling thread types. Other options available
upon request
Applications
Booster reel hose
Range control attack hose
Wildland brush fire truck attack hose
Compressed Air Foam System (CAFS) applications
Features and Benefits
Extremely kink resistant, even at low pressure
Bend
radius is less than 3.5” (8.9cm) for a 0.75” (19mm) hose; 4.5” (11.4cm)
for a 1” (25mm) hose; and 9" (23cm) for a 1.5” (38mm) hose
Non-Collapsible and fits standard hose reels
Heavy duty spun yarn construction
Unique Mertex® lining
Premium all synthetic single jacket
Standard Strobe Yellow Permatek HP™ treatment against abrasion, moisture pick up and mildew
Resistant to most chemicals, petrol products, ozone and U.V. exposure, and hydrolysis
Temperature range of -60º F to160º F (-50º C to 71º C)

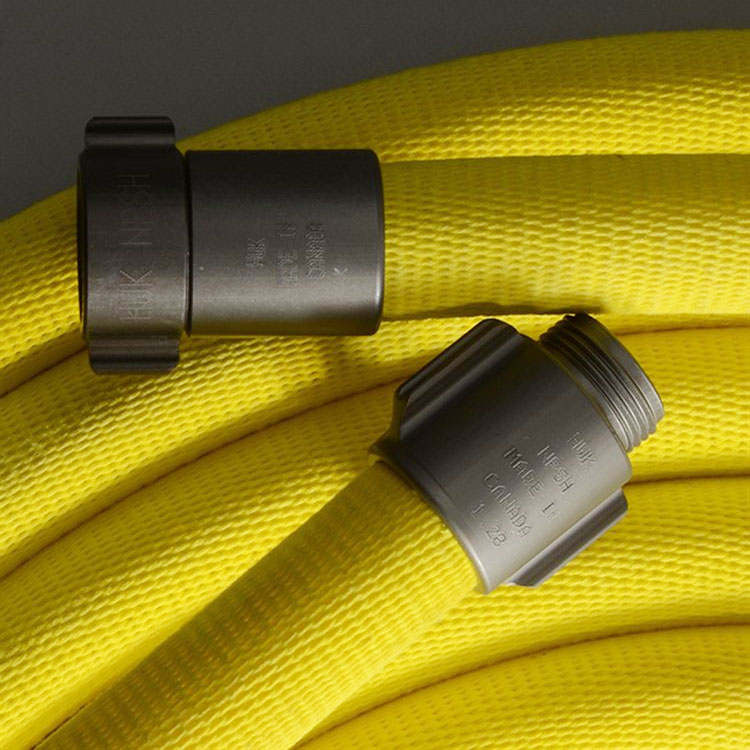

Available
with expansion ring and field repairable couplings, field repairable
splice, factory installed compression splice and compression couplings
Hose Configuration
19mm (0.75") x 50ft w/ 25mm (1") NPSH couplings or
25mm (1") NPSH x 50ft or
25mm (1") NPSH x 100ft w/ compression splice or
25mm (1") NHT x 50ft or
25mm (1") NPT Female NPSH Male x 100ft w/ compression splice or
38mm (1.5") NPSH x 50ft or
38mm (1.5") NPSH x 75ft (compression splice) or
38mm (1.5") NPSH x 100ft (compression splice) or
25mm (1") NPSH x 100ft w/ compression splice & Field Repairable Shank Couplings or
25mm (1") NPSH x 50ft w/ Field Repairable Shank Couplings
