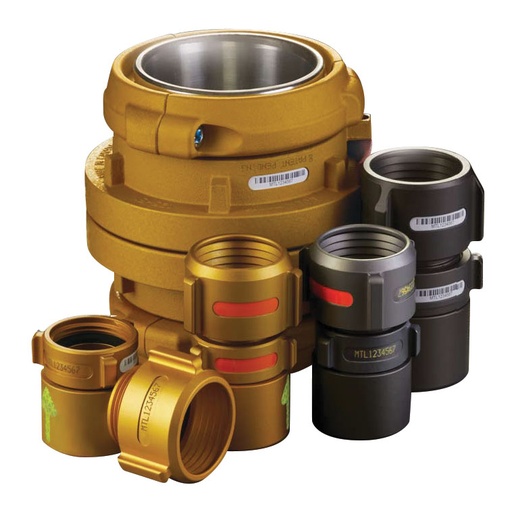

IDentify Code System (Additional option)

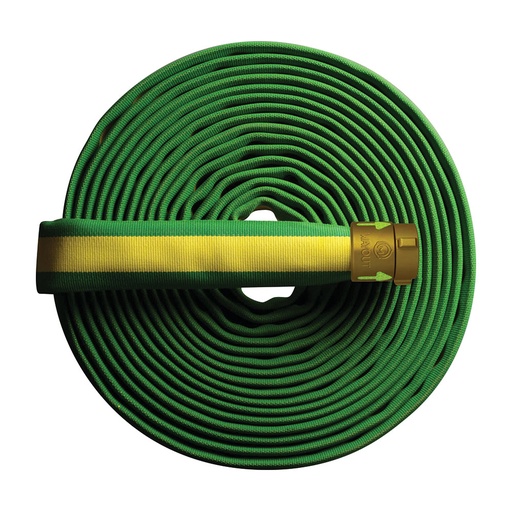

AquaFlow-Plus Fire Hose

Hose Configuration
- 38mm (1.5") Storz x 50ft Red
- 44mm (1.75") NPSH x 50ft Clear
- 38mm (1.5") NPSH x 50ft Red
- 44mm (1.75") NPSH x 50ft Red
- 44mm (1.75") NPSH x 50ft Yellow
- 44mm (1.75") NPSH x 50ft Green
- 65mm (2.5") BAT x 50ft Yellow
- 65mm (2.5") BAT x 50ft Clear

This combination does not exist.

Hose

Designed for fire services where durability and light weight are paramount

Applications

Pre-connected cross-lay attack hose
Rapid intervention team (RIT) hose
Pre-connected front bumper attack hose
Potable water transfer hose (stenciled)

Features and Benefits

Features Two Year All Hazards Warranty

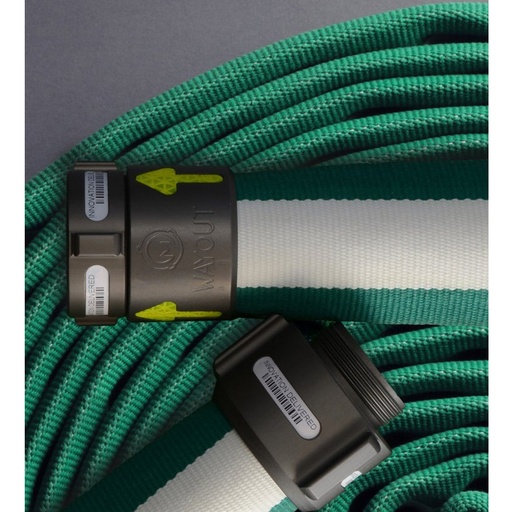

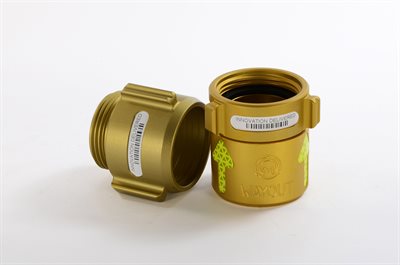

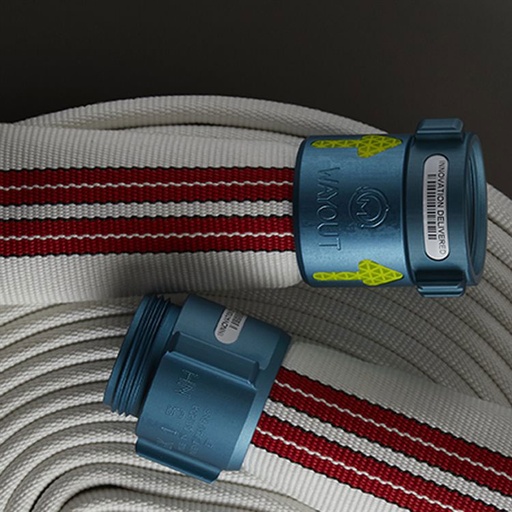

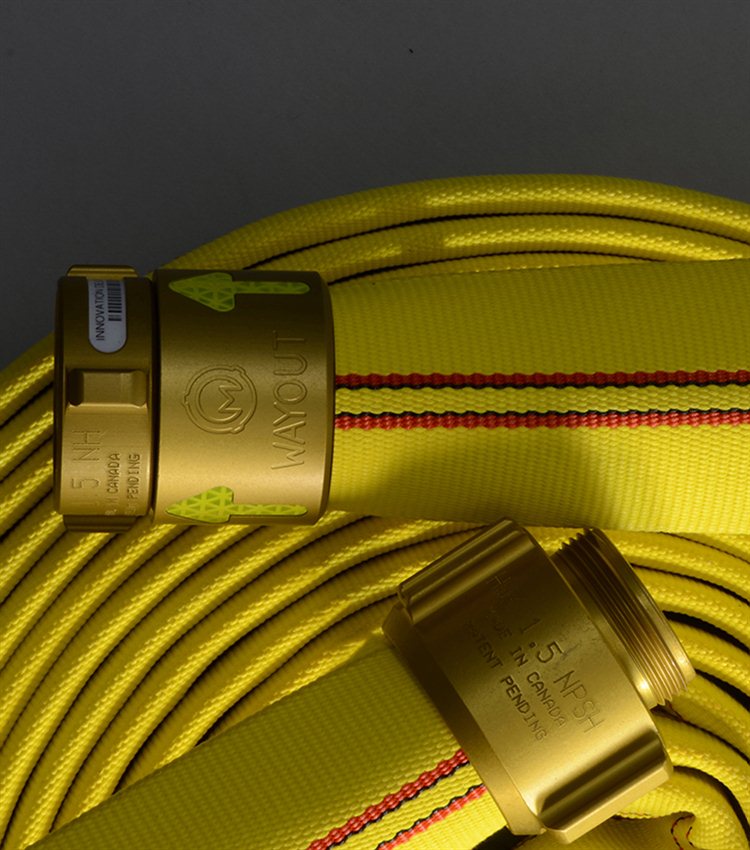

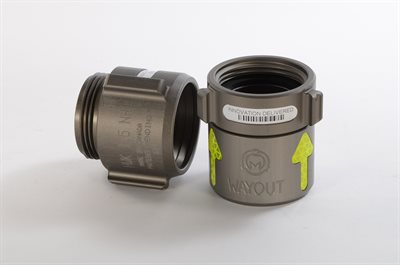

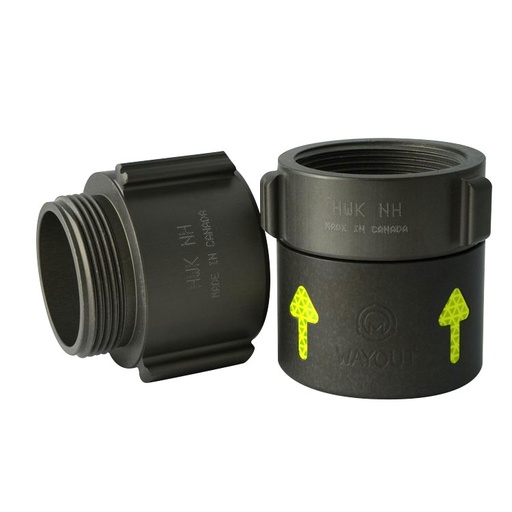

Available with Mertex Wayout® couplings
Unique Mertex® lining
Premium all synthetic double jacket
Standard with Permatek HP™ treatment against abrasion, moisture pick up and mildew
Remains flexible to -65º F (-55º C)
Meets ULC requirements and can be labeled upon request in the sizes* specified below

Hose Size (Diameter)	Service Pressure	Proof Pressure	Burst Pressure	Coil Diamter/50'	Weight/50' Uncpld
1.75" (44mm)	400 PSI	800 PSI	1,500 PSI	17" (43cm)	14lbs. (6.4kg)
2.5" (65mm)	400 PSI	800 PSI	1,450 PSI	19" (48cm)	21lbs. (9.5kg)

Hose Configuration

38mm (1.5") Storz x 50ft Red or 44mm (1.75") NPSH x 50ft Clear or 38mm (1.5") NPSH x 50ft Red or 44mm (1.75") NPSH x 50ft Red or 44mm (1.75") NPSH x 50ft Yellow or 44mm (1.75") NPSH x 50ft Green or 65mm (2.5") BAT x 50ft Yellow or 65mm (2.5") BAT x 50ft Clear

Warranty
