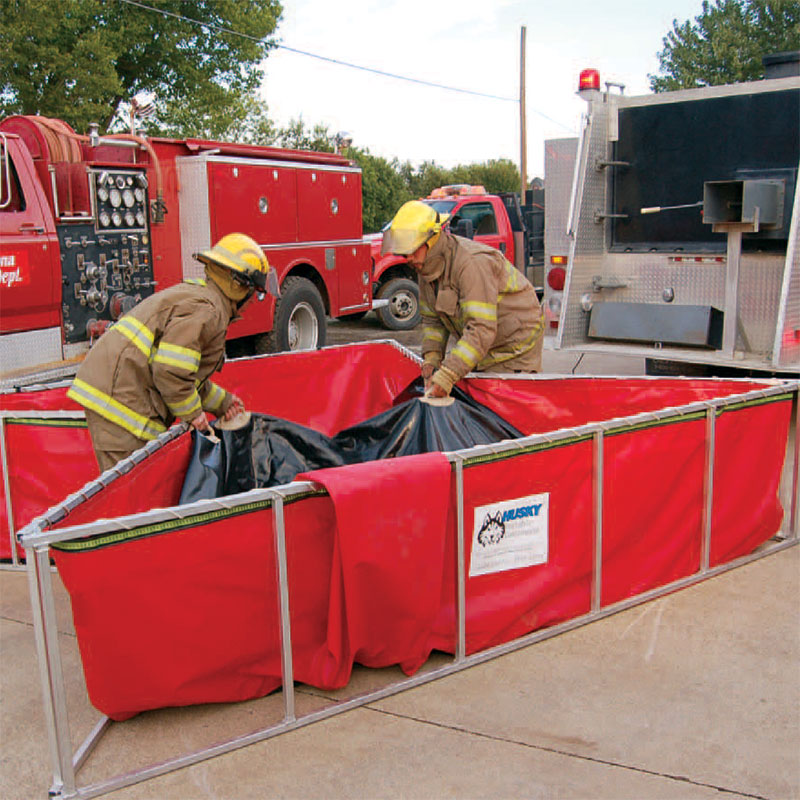

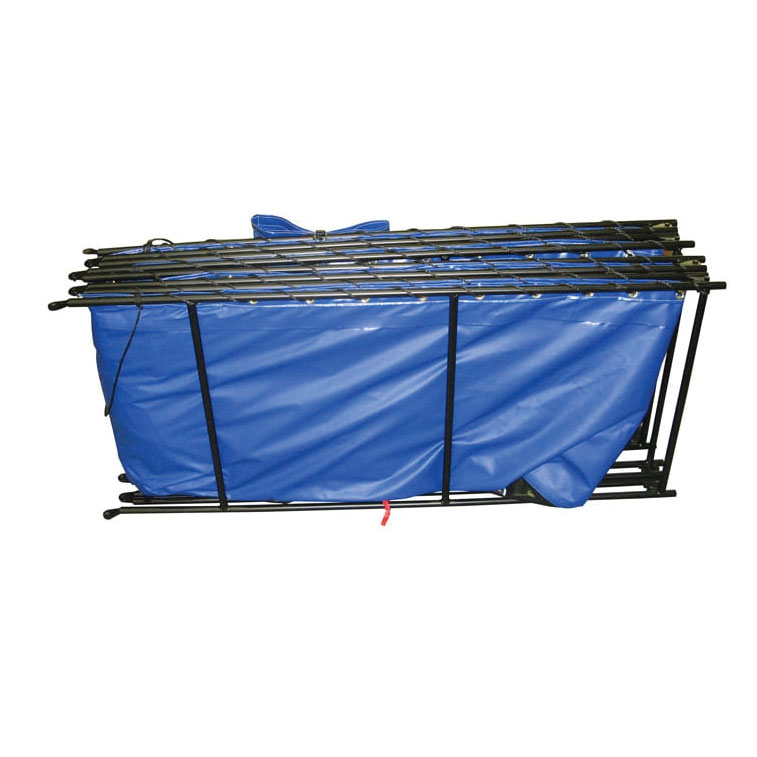

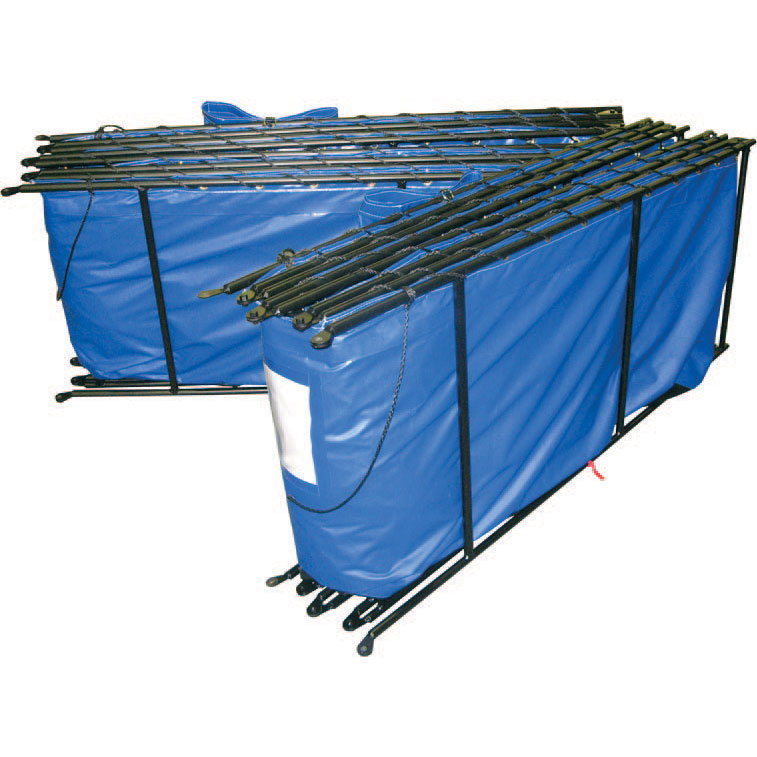

Double Folding Frame Water Tanks are for the end user that has limited storage space. These unique frame tanks have a second folding point on the long side of the frame allowing you to fold the frame tank one more time cutting the overall length in half. Just pull the special heavy duty pins from the laser cut hinges and fold your tank again. The pins are secured to the frame to assure they will not be lost!
Can be locked only in the first folding point to fit your existing tank holder.
Frame
- 1" x 1" x 1/8" 6061 square tube aluminum
- Superior heavy duty laser cut hinge design
- 20-25% weight savings over steel
- Will not rust
- Pinch free frame- no more pinching of your hands or fingers in the folding areas of the tank
Liner Description
- Materials: heavy duty vinyl, NSF-61 approved (potable water)
- Chemical & fuel resistant
- Continuous 22oz. vinyl
- Heavy duty floor increases durability of the liner (patent pending)
- "Easy Lift Handles" mounted on the floor of the tanks (patented)
- Yellow or red (specify when ordering)
- #4 solid brass grommets
- All hems are double stitched and triple reinforced
- 10" drain tube with quick release for fast draining or mating with another tank (2 drain tubes are standard on 2500+ tanks)
- Ground cover and top covers available
- Optional clear view panel liner includes a 12" wide heavy-duty, reinforced clear vinyl panel that allows you to easily view water level from any angle
| Capacity | Open Dimensions | Folded Dimensions | Weight |
| 500 gallon | 5'8" x 5'8" x 29" | 16" x 2'11" x 29" | 68 lbs. |
| 1000 gallon | 8'3" x 8'3" x 29" | 16" x 4'3" x 29" | 96 lbs. |
| 1500 gallon | 10'3" x 10'3" x 29" | 16" x 5'3" x 29" | 109 lbs. |
| 2100 gallon | 11'3" x 11'3" x 29" | 16" x 5'9" x 29" | 124 lbs. |
| 2500 gallon | 12'3" x 12'3" x 29" | 16" x 6'3" x 29" | 135 lbs. |
| 3000 gallon | 13'3" x 13'3" x 29" | 16" x 6'9" x 29" | 149 lbs. |
| 3500 gallon | 14'3" x 14'3" x 29" | 16" x 7'3" x 29" | 167 lbs. |
| 4000 gallon | 15'3" x 15'3" x 29" | 16" x 7'9" x 29" | 178 lbs. |
| 5000 gallon | 17'3" x 17'3" x 29" | 16" x 8'9" x 29" | 215 lbs. |
Alternative Products
![[421815101] Steel Double Fold Framed Port-a-Tank (1000 US gal)](/web/image/product.product/3553/image_512/%5B421815101%5D%20Steel%20Double%20Fold%20Framed%20Port-a-Tank%20%281000%20US%20gal%29?unique=c64c315)
Accessory Products

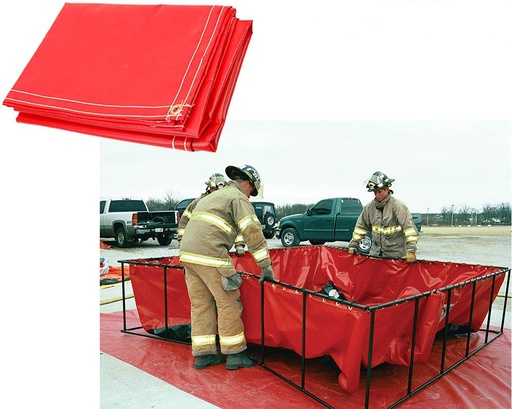

![[421865210] Ground Cover for Folding Port-a-Tank (2100 US gal)](/web/image/product.product/3548/image_512/%5B421865210%5D%20Ground%20Cover%20for%20Folding%20Port-a-Tank%20%282100%20US%20gal%29?unique=c64c315)
