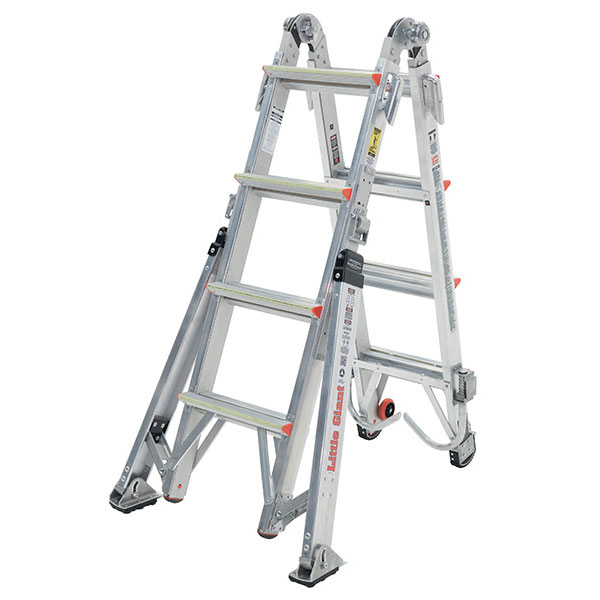

The Little Giant Overhaul™ ladder system was designed by firefighters

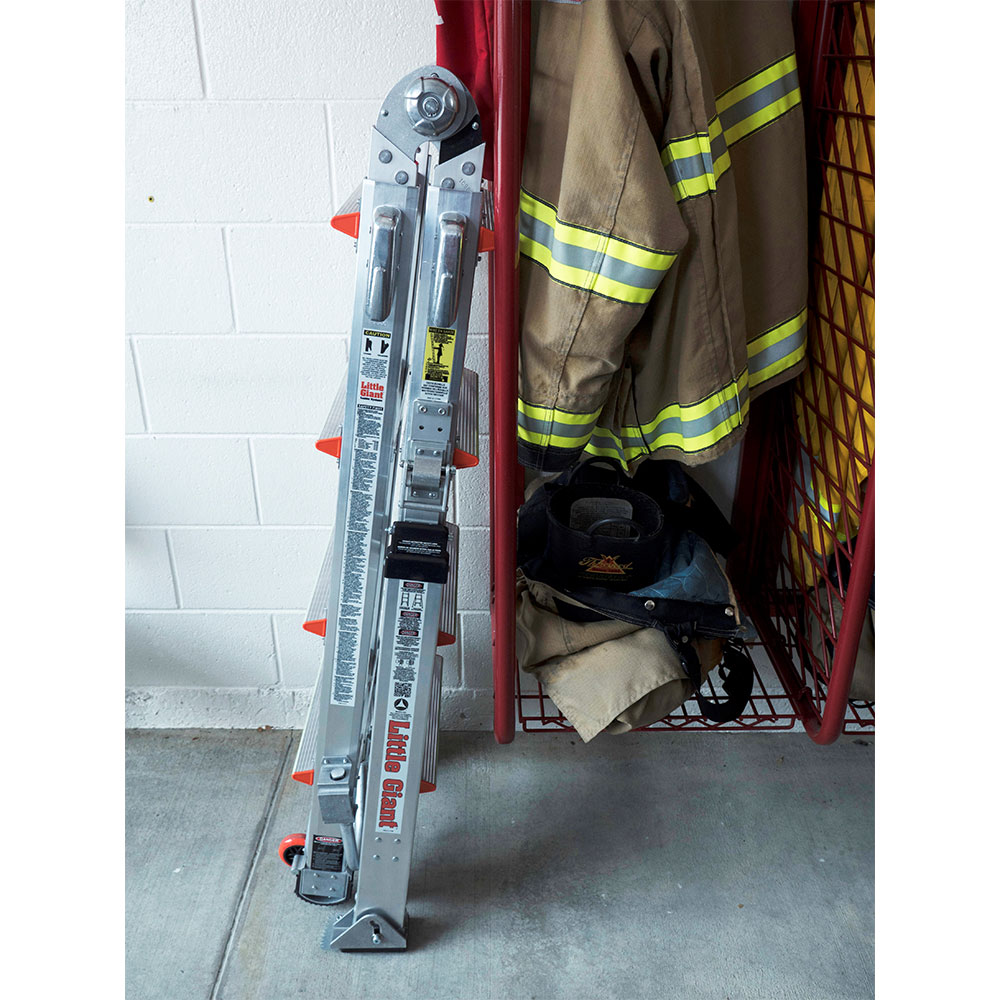

for firefighters. The Overhaul ladder extends to 17 feet, but it is

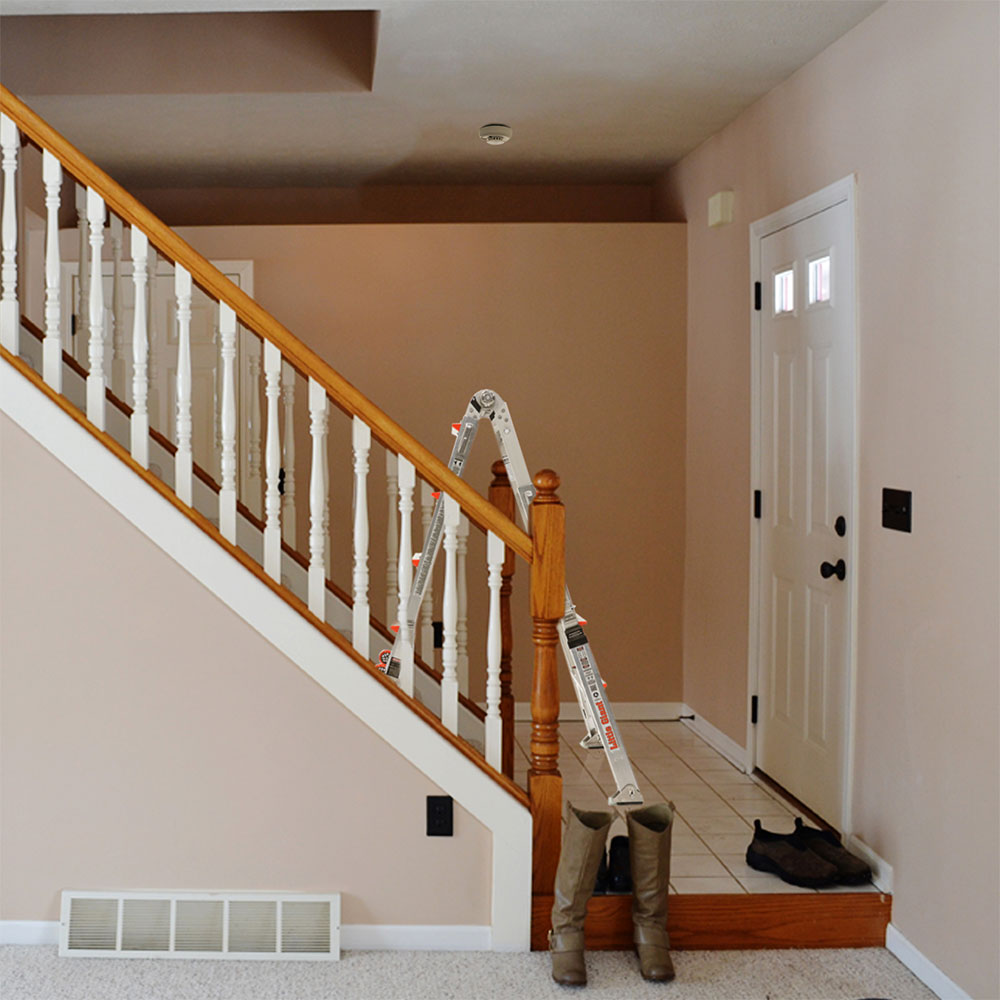

small enough to carry into an elevator, up a flight of stairs, or around
tight corners. The ladder is just 4 foot 7 inches tall when retracted.
The Overhaul has been engineered to combat all the unique challenges that firefighters have to face every day:

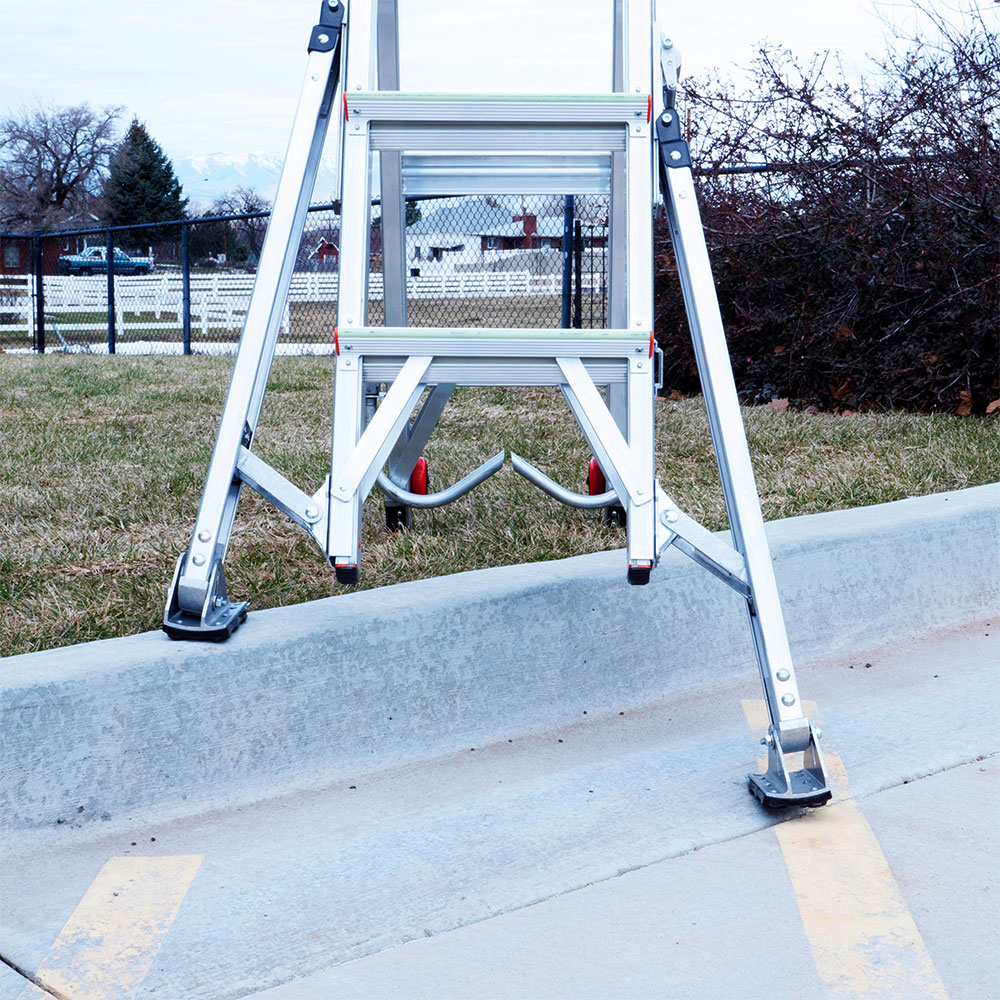

- Ratchet Levelers® rung fasteners –

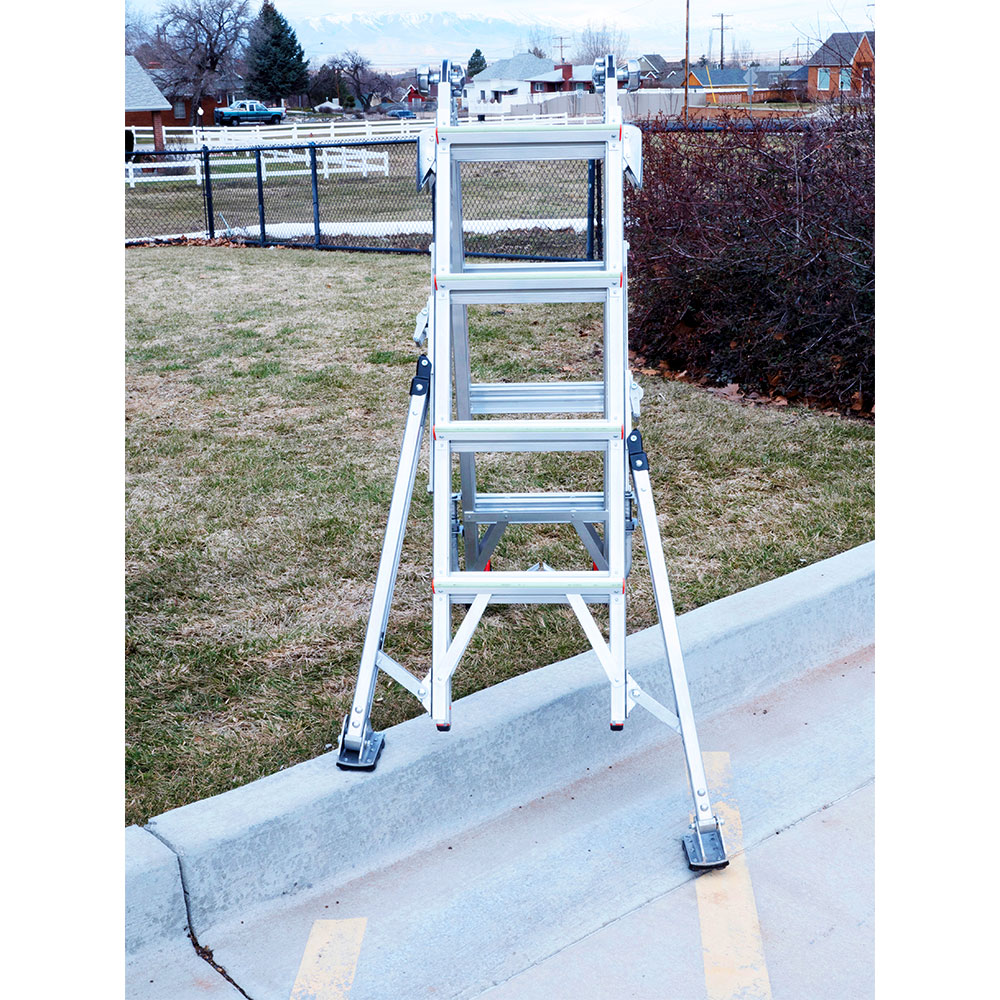

Working on uneven ground due to slope or debris? Ratchet Levelers adjust
in seconds to provide an even, level setup over an uneven surface or
debris. Ratchet Levelers are specifically designed to be easy to operate
while wearing heavy firefighting gloves and boots.

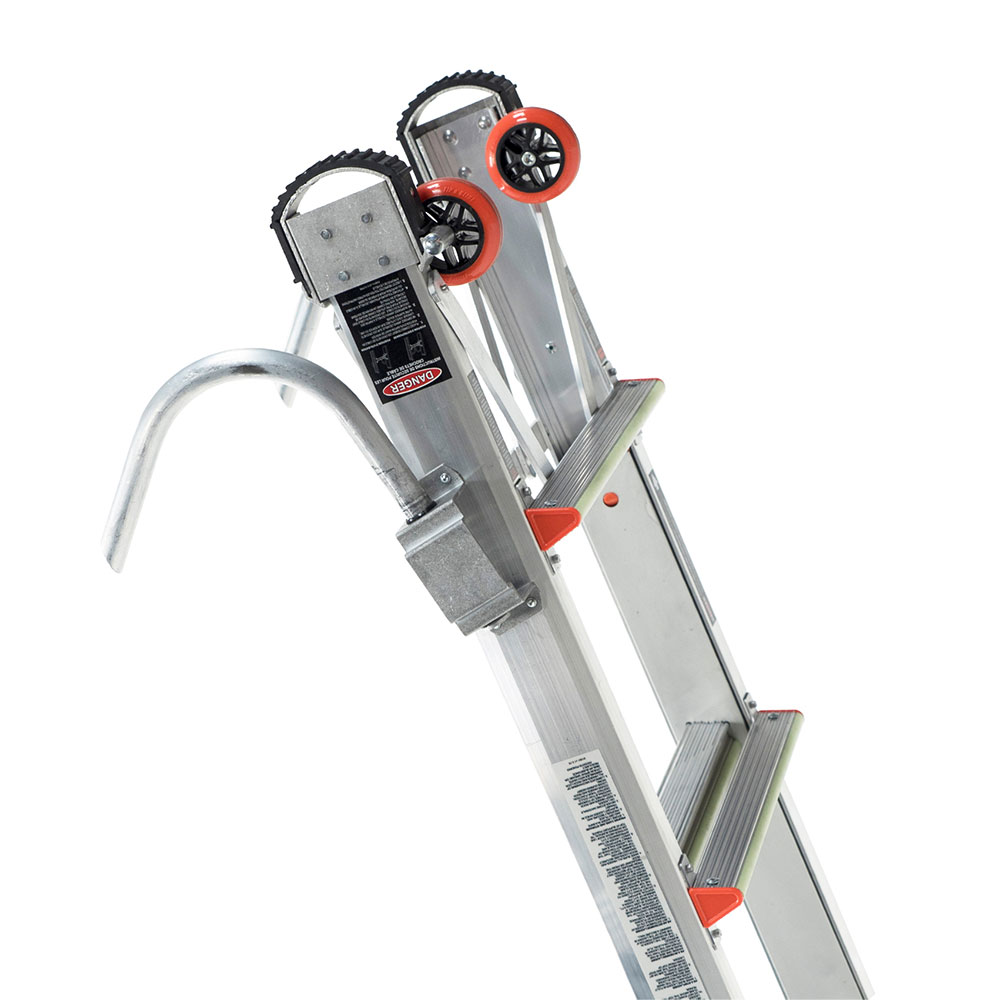

- Roof & Rafter Hooks –

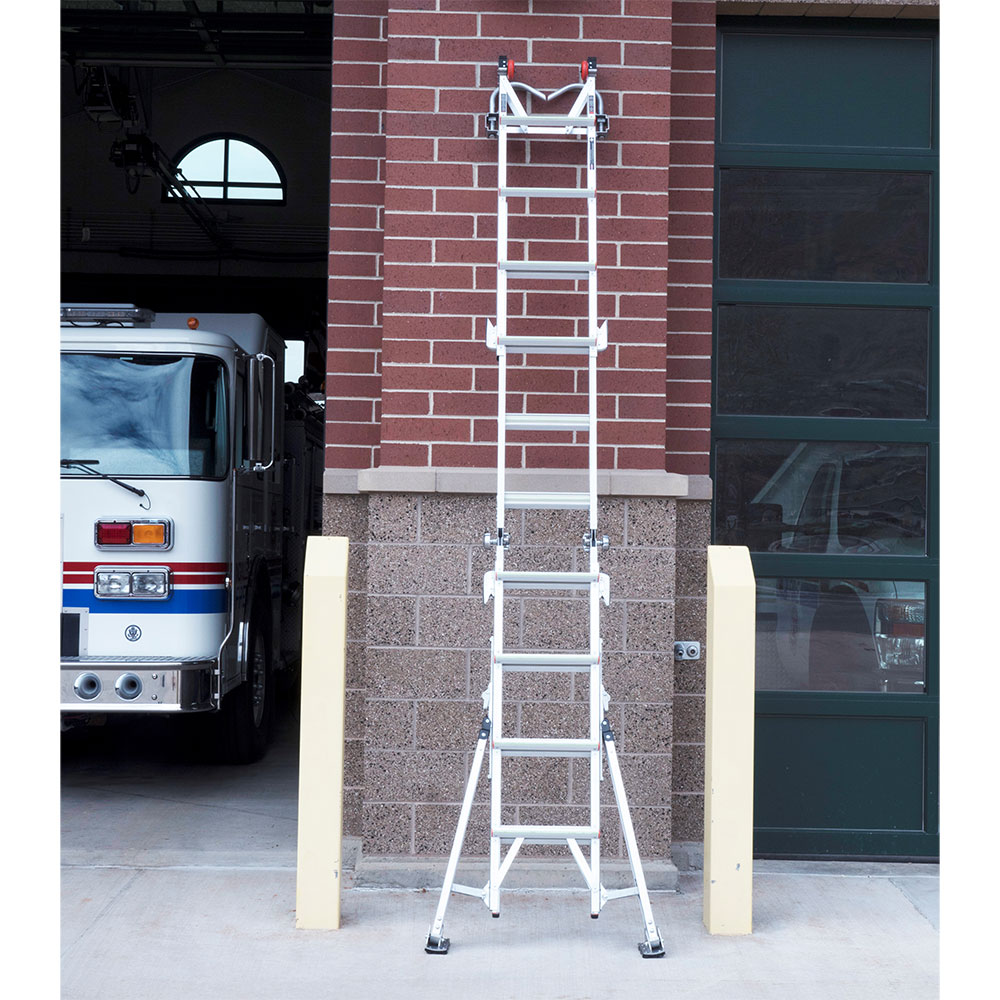

The Overhaul Ladder is equipped with folding roof and rafter hooks that
allow firefighters to hook the ladder to a rafter or truss to help
prevent the ladder from “slipping out” from underneath while
firefighters work during overhaul and other operations.
- High-Visibility –

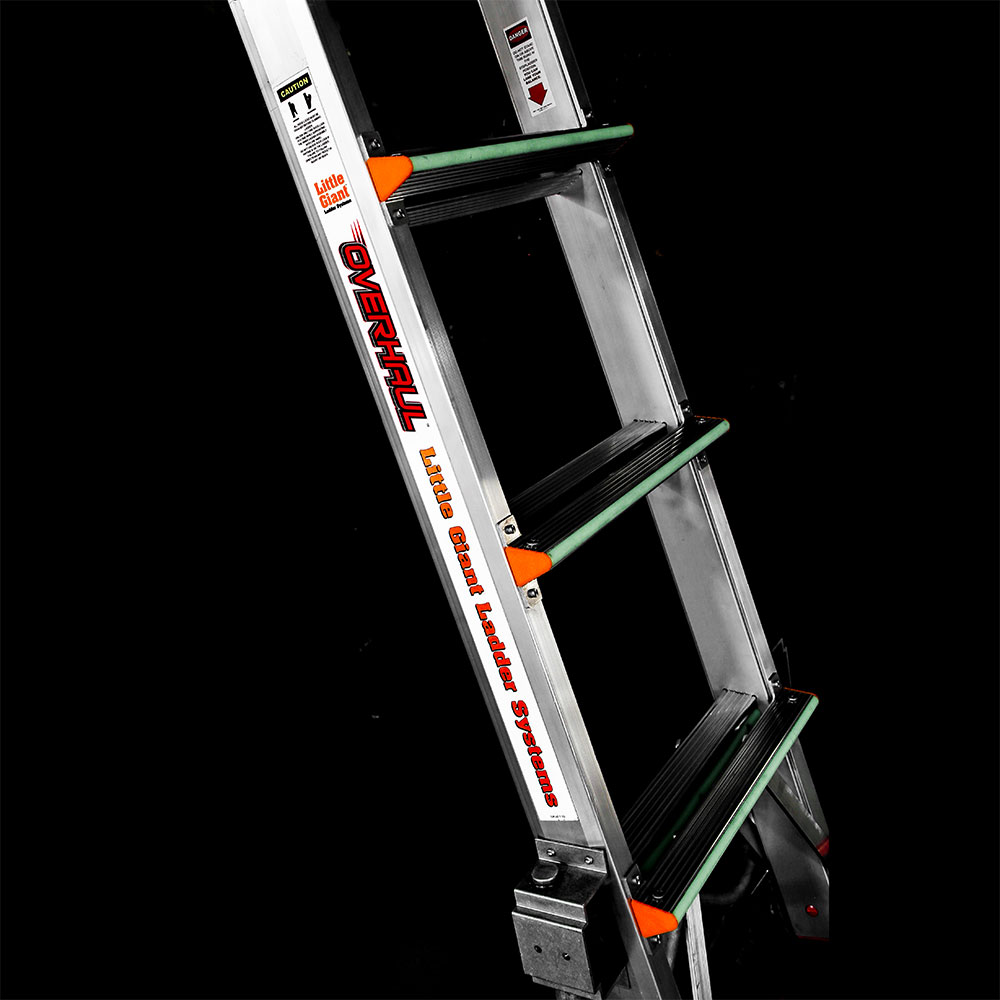

Each rung on the Overhaul Ladder is equipped high-viz reflective labels
and Little Giant’s exclusive Safety Insight™ photo-luminescent strips
to help identify rung location in low light conditions. This durable
material glows for up to 16-hours when charged, is integrated into the
rung, and will not rub off like tape.
- Dual Position Spike Feet –
Adjustable non-slip rubber feet provide stability on wet or slippery
surfaces and flip down spike feet provide stability on grass, carpet and
- Easy Transport – The Overhaul Ladder is equipped with heavy duty casters for quick, easy transport.
- Easy Carrying –
The Overhaul Ladder is designed to be extremely mobile and easy to move
from place to place. It is equipped with a large, solid aluminum
carrying handle that is easy to grip while wearing firefighter gloves.
- Heat Sensing Technology – The
Overhaul has special heat-sensing labels that indicate when the ladder
has been exposed to damaging temperatures and should be taken out of
- NFPA Compliance - designed to meet the requirements of NFPA 1931-2015, Standard for Manufacturer’s Design of Fire Department Ground Ladders, and has been tested to the requirements of NFPA 1932-2015, Standard on Use, Maintenance, and Service Testing of In-Service Fire Department Ground Ladders.

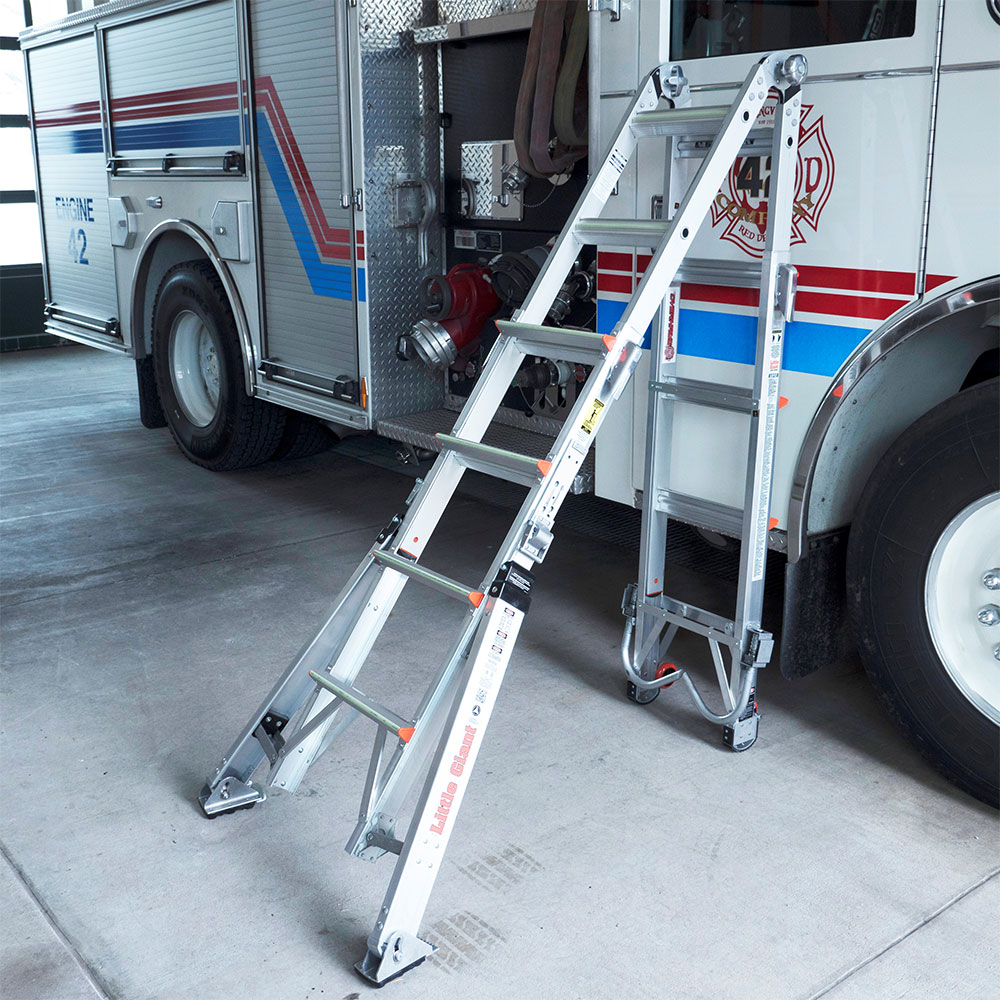

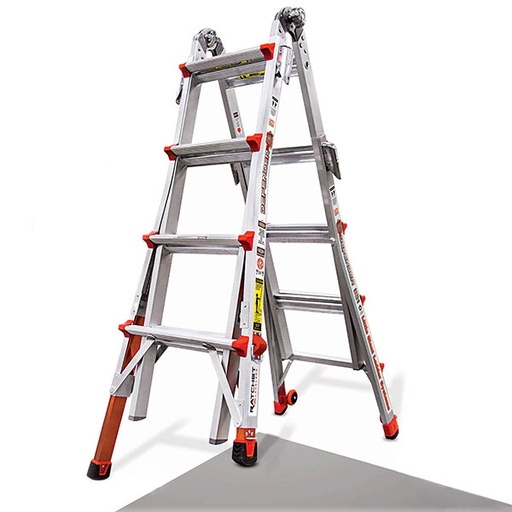

Little Giant’s Overhaul and Defender™ ladders are the only articulating
ladder systems that meet the requirements of NFPA 1901-2009, Standard for Automotive Fire Apparatus, section 188.8.131.52 for pumpers, section 8.7.5 for ladder trucks, and section 184.108.40.206 for quints.
- Insurance Services Office - The Little Giant Overhaul Ladder meets ISO requirements for credit on pumper and ladder apparatus.
- GSA Number: GS-07F-475AA
- 5 year limited warranty
- Weighs 52.3 lbs. (23.7kg)
- Base width: 20.5" (52cm)
- Rung width: 1.5" (38mm)
|Minimum Height||4' (1.2m)||9' (2.7m)|
|Maximum Height||7' (2.1m)||15' (4.6m)|
|Storage Height & Depth||4' 8.75"h x 10.5"d |
(1.4m x 26.7cm)
|Minimum Footprint||3' 4" (1m)||-|
|Maximum Footprint||5' 3" (1.6m)||-|
|Maximum Reach*||11' 4" (3.5m)||18' 1" (5.5m)|
|Highest Standing Level||2' to 4' 10" (61cm - 1.5m)||4' 10" to 10' 8" (1.5m - 3.3m)|
*A 5'6" person with 12" vertical reach
