Elevated
monitors are ideally suited for problem applications that are difficult
to reach from ground level with fixed or portable equipment. Typical
installations include dock protection and high hazard petrochemical
areas. Elevating the monitor serves high-hazard areas that may otherwise
be obstructed, putting the monitor at the appropriate height to reach
the target.
Supported monitors range up to 111 feet (34m), depending upon the
flow/distance requirement and water/pressure available for the
application.
Supported monitors consist of the base portion with the vertical and
horizontal motion control mounted with the appropriate cable length and
the upper portion consisting of the monitor with a 4" (102cm) male NPT
base complete with one reaction support. Inter-connecting pipe is
available upon request.
The monitor base assembly and discharge sections are joined by full
lengths (21'/6.4m) of 4" (10 cm) nominal diameter schedule 40 galvanized
steel pipe. The quantity of pipe lengths can be 1-5 depending upon the
desired height of the monitor after fully engaging the threaded ends. A
.25" (6mm) long fillet weld (2 at each thread) is recommended to prevent
unscrewing. First reaction support should be within 7' (2m) of nozzle.
Additional supports should be spaced 20' (6m) apart.
- 360° horizontal motion ± 45° vertical motion with position locks in each plane
- Red epoxy coat monitor finish
- Galvanized steel drive tube
- Stainless steel elevation cables
- Elevation and rotation locks
- Vertical motion control handle

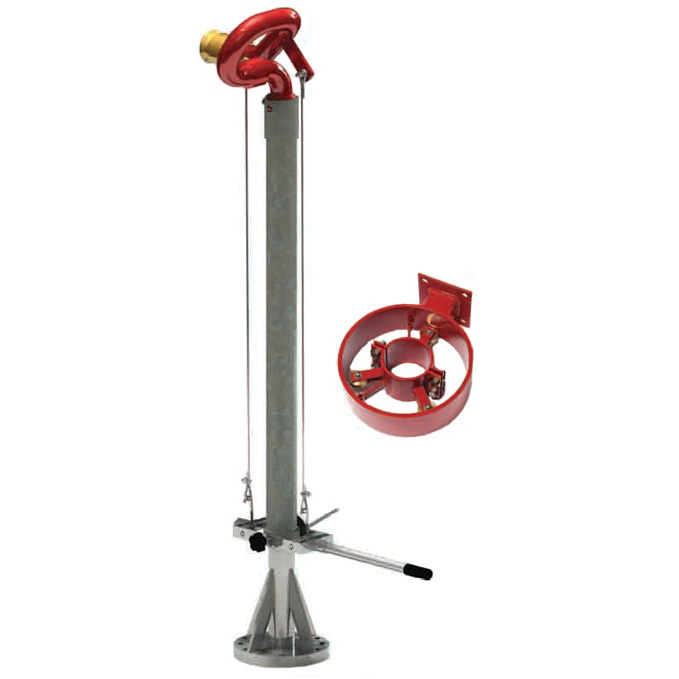

- Includes one Reaction Support to counter the reaction loads and allow for smooth rotation
Options
- WFR shape tips
- Fog nozzles (hydraulically operated or cable operated)
- Flow straighteners to maximize reach
- Above ground intake base assembly and inlet butterfly valve
- Manual hydraulic pump (for fog nozzle actuation)
- Pump to nozzle installation kit/remote swivels grease kit
- Automatic/manual drain for freeze protection
- Heat shield
- Additional reaction supports. One reaction support is required for each 20' (6m)

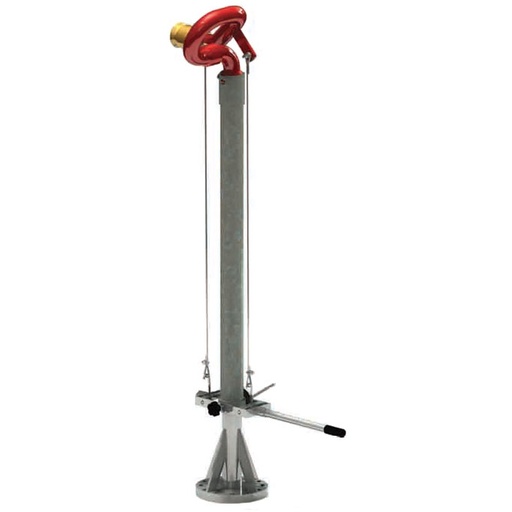

![[710004361] Freestanding Elevated WFR Monitor (10ft)](/web/image/product.product/4651/image_512/%5B710004361%5D%20Freestanding%20Elevated%20WFR%20Monitor%20%2810ft%29?unique=9dd4b9a)

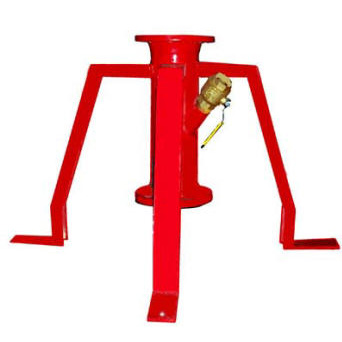

![[443525100] Elevated Monitor Support Base (4" base monitor)](/web/image/product.product/4675/image_512/%5B443525100%5D%20Elevated%20Monitor%20Support%20Base%20%284%22%20base%20monitor%29?unique=9dd4b9a)
![[443525310] Mounting Base for Elevated Monitor 90 degree](/web/image/product.product/454/image_512/%5B443525310%5D%20Mounting%20Base%20for%20Elevated%20Monitor%2090%20degree?unique=9dd4b9a)
![[463285100] Remote Control Nozzle w/ Cable Drive for Elevated Monitor (350gpm)](/web/image/product.product/4678/image_512/%5B463285100%5D%20Remote%20Control%20Nozzle%20w-%20Cable%20Drive%20for%20Elevated%20Monitor%20%28350gpm%29?unique=9dd4b9a)

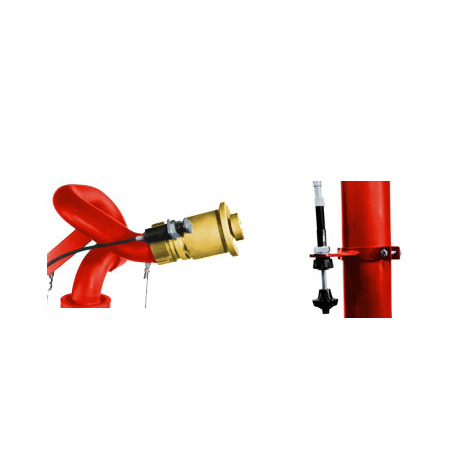

![[463290100] Push/Pull Remote Control for Nozzle for Elevated Monitor](/web/image/product.product/456/image_512/%5B463290100%5D%20Push-Pull%20Remote%20Control%20for%20Nozzle%20for%20Elevated%20Monitor?unique=9dd4b9a)

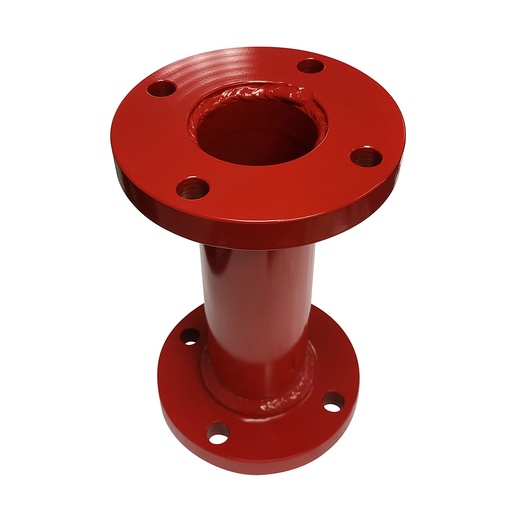

![[710003689] Hydrant Monitor Extension 12" (3" (4 bolt) Flat faced Flange Inlet (both sides))](/web/image/product.product/455/image_512/%5B710003689%5D%20Hydrant%20Monitor%20Extension%2012%22%20%283%22%20%284%20bolt%29%20Flat%20faced%20Flange%20Inlet%20%20%28both%20sides%29%29?unique=9dd4b9a)
