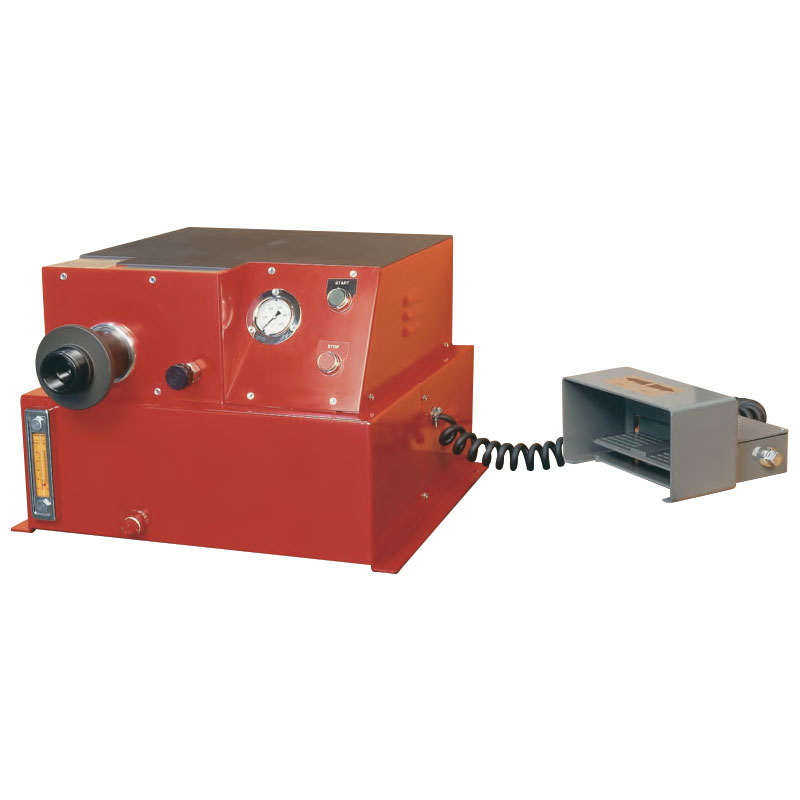

Brute Model 2 Bench fire hose coupling Expander

https://www.wfrfire.com/web/image/product.template/102/image_1920?unique=7d2907c

BRUTE MODEL 2 BENCH ELECTRIC HYDRAULIC Expander, 22" wide x 22" deep x 16" high

    This combination does not exist.

    Hardware

    The Brute Model 2 hose expander unit is made for smooth & simple operation. Every attachment is a secure fit, assuring a safe hose and coupling assembly. The Brute Model 2 will come with operating instructions, including simple diagrams to make each operation easily understood.

    Specifications

    • Designed for hose manufacturers, high-volume distributors, and fire departments.
    • Used to attached 1" - 6" sized couplings.

    • 3,000 PSI pump.
    • 3,450 RPM motor.
    • 1.5 HP, single phase, 220 volts.
    • Cylinder: 6" stroke, 4" bore.
    • Total Thrust: 38,000#.
    • Oil Capacity: 9.5 gallons.
    • Manually set external pressure relief valve.
    • Dimensions: 22" W x 22" D x 16" H
    • Weight: 350 lbs (158.8 kg)

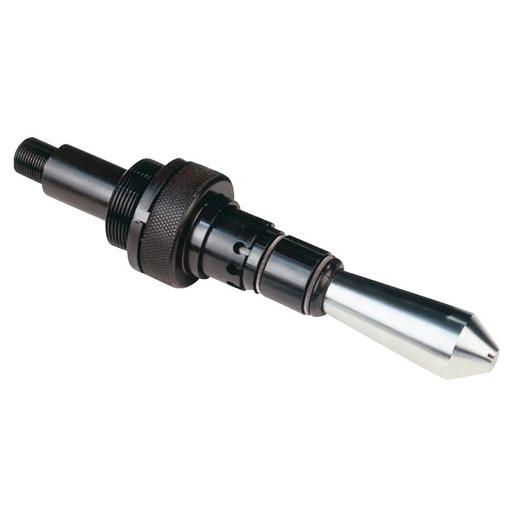

    NOTE: The Brute Model 2 does NOT include any expansion unit assemblies. They are sold separately - see Accessory Products for more information.

    Product Image
    Brute Model 2 Bench fire hose coupling Expander
