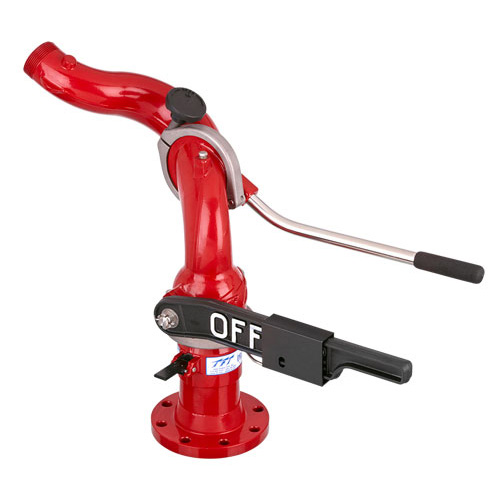

The
Protector is a simple and rugged fixed station monitor with many unique
features. Its patented waterway gives low friction loss and delivers
water to the nozzle with fewer twists and turns than a conventional
monitor. The optional built-in on/off valve with position indicator
eliminates the need to add a costly valve to the monitor installation.
The Protector is capable of flowing up to 1,250 gpm (4,500 lpm) while
maintaining a FULL 360 degree rotational ability. The lever-action
rotation lock is activated in one motion, visually confirmed, and
securely holds the monitor's horizontal position. The Protector can be
directly bolted to many common pipe flanges. The outlet is available
with various 2.5" (65mm) male threads. The simple and basic design
requires no grease or other maintenance. Swivelling elements and seals
(including valve seat) can be replaced within a few minutes with common
hand tools. Threaded ports (0.25" NPT) are provided for drain valve and
pressure gauge installation. Maximum pressure is 250 psi. The Protector
is available in brass, or hard anodized aluminum. The monitor is
hardcoat anodized ANSI 356-T6 aluminium and is fully powder coat
finished inside and out. Swivel clamps, 3" (75mm) valve ball, trunnions,
and hardware are 18-8 stainless steel.
* Our standard configuration is 3", 4 bolt inlet flange with 65mm (2.5") BAT discharge
Available options upon request:
Outlet : All other threads
Inlet: 4" , 8 bolt flange, 3" or 4" NPT
