TFT Protector 1250gpm Hydrant Mount Monitor

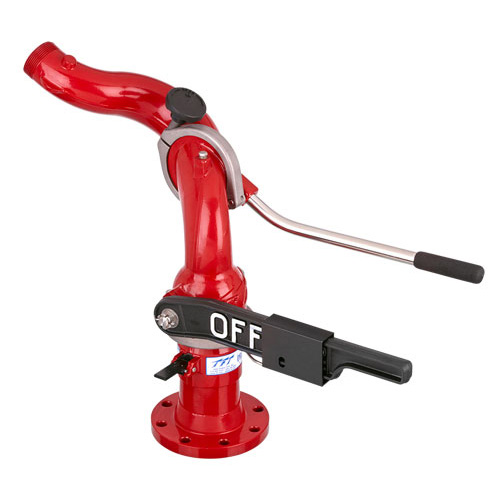

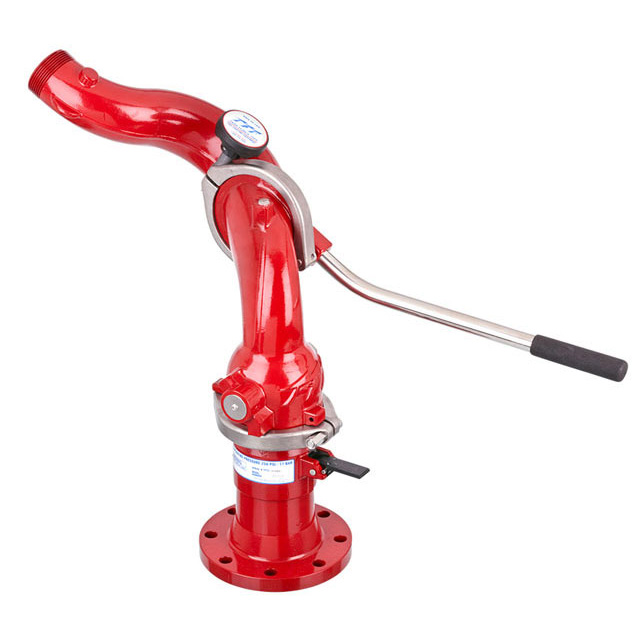

The Protector is a simple and rugged fixed station monitor with many unique features. Its patented waterway gives low friction loss and delivers water to the nozzle with fewer twists and turns than a conventional monitor. The optional built-in on/off valve with position indicator eliminates the need to add a costly valve to the monitor installation. The Protector is capable of flowing up to 1,250 gpm (4,500 lpm) while maintaining a FULL 360 degree rotational ability. The lever-action rotation lock is activated in one motion, visually confirmed, and securely holds the monitor's horizontal position. The Protector can be directly bolted to many common pipe flanges. The outlet is available with various 2.5" (65mm) male threads. The simple and basic design requires no grease or other maintenance. Swivelling elements and seals (including valve seat) can be replaced within a few minutes with common hand tools. Threaded ports (0.25" NPT) are provided for drain valve and pressure gauge installation. Maximum pressure is 250 psi. The Protector is available in brass, or hard anodized aluminum. The monitor is hardcoat anodized ANSI 356-T6 aluminium and is fully powder coat finished inside and out. Swivel clamps, 3" (75mm) valve ball, trunnions, and hardware are 18-8 stainless steel.
* Our standard configuration is 3", 4 bolt inlet flange with 65mm (2.5") BAT discharge
Available options upon request:
Outlet : All other threads
Inlet: 4" , 8 bolt flange, 3" or 4" NPT
Specifications for TFT Protector 1250gpm Hydrant Mount Monitor
Configuration | No shut off valve or With shut off valve |
