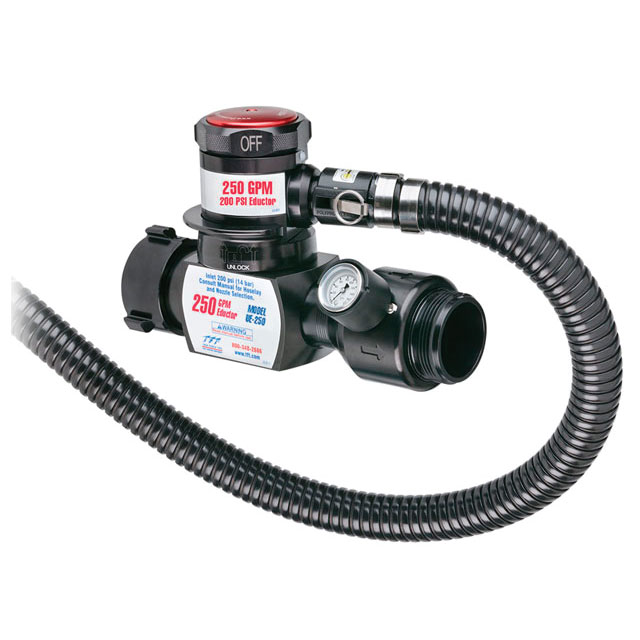

In-line foam eductors have a metering head with an easy-to-read knob for use with Class A, B and AR-AFFF foam at a variety of percentages (0.5%, 1%, 3%, 6%). The meter head is equipped with a unique back flush push-button for fast and easy cleaning right on the scene, and is secured to the eductor body with a rugged disconnect. All controls are easy to use with gloves. The eductors are made of lightweight, hardcoat anodized aluminum for corrosion protection. A large 8’ industrial grade, UV resistant pickup hose is ideal for use with high viscosity foams.
250 Series flow capability is 250 gpm (946 l/min) with inlet pressure of 200 psi (14 bar) or 150psi (10 bar)
350 Series Flow capability is 350 gpm (1,324 l/min) with inlet pressure of 200 psi (14 bar) or 150psi (10 bar)
Maximum allowable back pressure is 130 psi (9 bar) for 200 psi model and 150 psi inlet pressure models have 80 psi maximum
Specifications for TFT 250 & 350 Series In-line Foam Eductor
| Eductor gpm | 250 gpm, 150 psi or 250 gpm, 200 psi or 350 gpm, 150 psi or 350 gpm, 200 psi |
