Seek Scan - Skin Temperature Screening Device

485030205 (PFP-20HPHND-2D) 4" inlet
https://www.wfrfire.com/web/image/product.template/5933/image_1920?unique=5370b89


Seek Scan is a simple, low-cost, thermal imaging system designed to automate body temperature screening using skin temperature as a proxy. With ±0.3°C (±0.5°F) accuracy and the inclusion of a reference heat source, Seek Scan delivers the same performance as an infrared temporal thermometer – but with a safe social distance.

The system can be installed in lobbies, hallways and other key access points to help businesses, institutions and venues reopen a safer environment for their workforce, customers, members and patrons. Easy-to-install and easy-to-use, the system can be up and running in minutes with no special equipment or training. As a leading supplier of thermal sensors to the Public Safety market and one of the largest suppliers of all commercial thermal sensors globally, Seek Thermal has built hundreds of thousands of thermal cameras used worldwide.

Seek Scan Set Up*Tripods and Windows PC not included

How it works

Seek Scan is specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. In seconds, the system automatically detects a face, identifies the most reliable facial features for measurement, and displays an estimated body temperature. A visual and audible alert is provided if someone is warmer than the customizable alarm temperature.

​Unlike typical industrial thermal cameras, Seek Scan was developed for precise temperature measurement and maximizes accuracy by referencing a fixed heat source with a known temperature value. Seek’s patent-pending heat source allows Seek Scan to achieve much higher accuracy than a standard thermal imaging camera designed for industrial use.

​The Seek Scan process provides an additional layer of preventive screening and can deliver more peace of mind to businesses, institutions and participants.

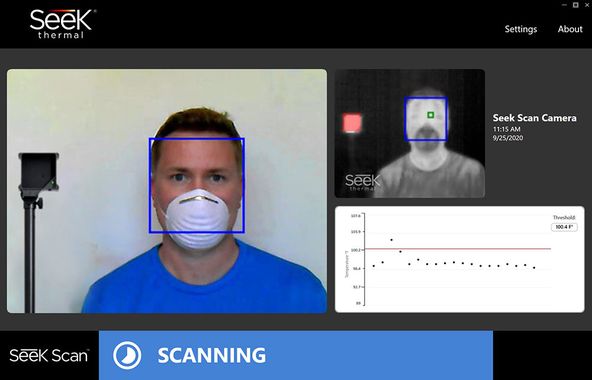

Software Display: Face detected. Seek Scan is measuring skin temperature.

Face detected. Seek Scan is measuring skin temperature.

Software Display: Estimated body temperature is below the alarm temperature.

Estimated body temperature is below the alarm temperature.

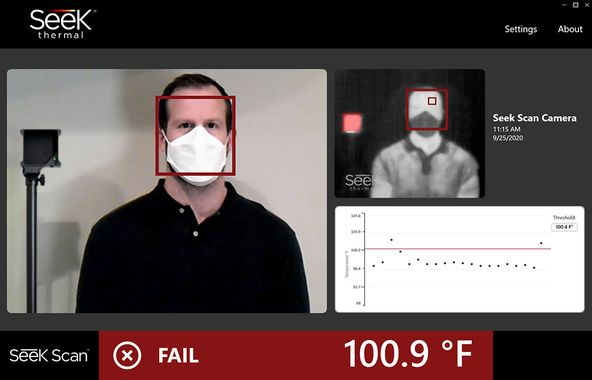

Sotware Display: Estimated body temperature is above the alarm temperature.

Estimated body temperature is above the alarm temperature.

An option to turn off temperature display is available in the settings menu.

Key Features & Benefits

Designed & calibrated to detect elevated skin temperature

Developed for precise temperature measurement and also includes a fixed heat source that maximizes accuracy.

Proven Technology

Thermal Imaging has been used globally for years as a fast, non-invasive way to measure temperature.

Enables Social Distancing

Delivers the same performance as a temporal thermometer - but with a safe social distance.

Easy to install & easy to use

Start scanning in minutes using two tripods and a Windows PC. No special equipment or training required.

Fast, automated screening

In seconds, the system detects a face, finds the most reliable spot to measure and displays a pass/fail alert.

Affordable

Priced significantly lower than other thermal screening solutions.

Software Updates available here

System Overview

*Patents pending on Seek Scan System and Fixed Heat Source


Skin temperature vs body temperature

Seek Scan measures skin temperature as a proxy for body temperature.

Here are a few things to know about skin temperature measurement:

  • Skin temperature is typically a few degrees less than body temperature. Similar to an infrared temporal thermometer, Seek Scan uses skin temperature to provide an estimated body temperature.
  • Seek Scan is programed to measure the most reliable parts of the face to produce the best results with high accuracy.
  • A person's skin temperature may vary based on a variety of circumstances such as ambient temperature, sweat and eyewear. For this reason, Seek Scan is intended for indoor use only and in environmentally controlled rooms.
  • Distance is critical to performance. We recommend marking the floor with tape or decals to ensure all subjects are measured from the exact same distance and while positioning the subject next to the heat source.

What's in the box

Product Image
Seek Scan - Skin Temperature Screening Device
