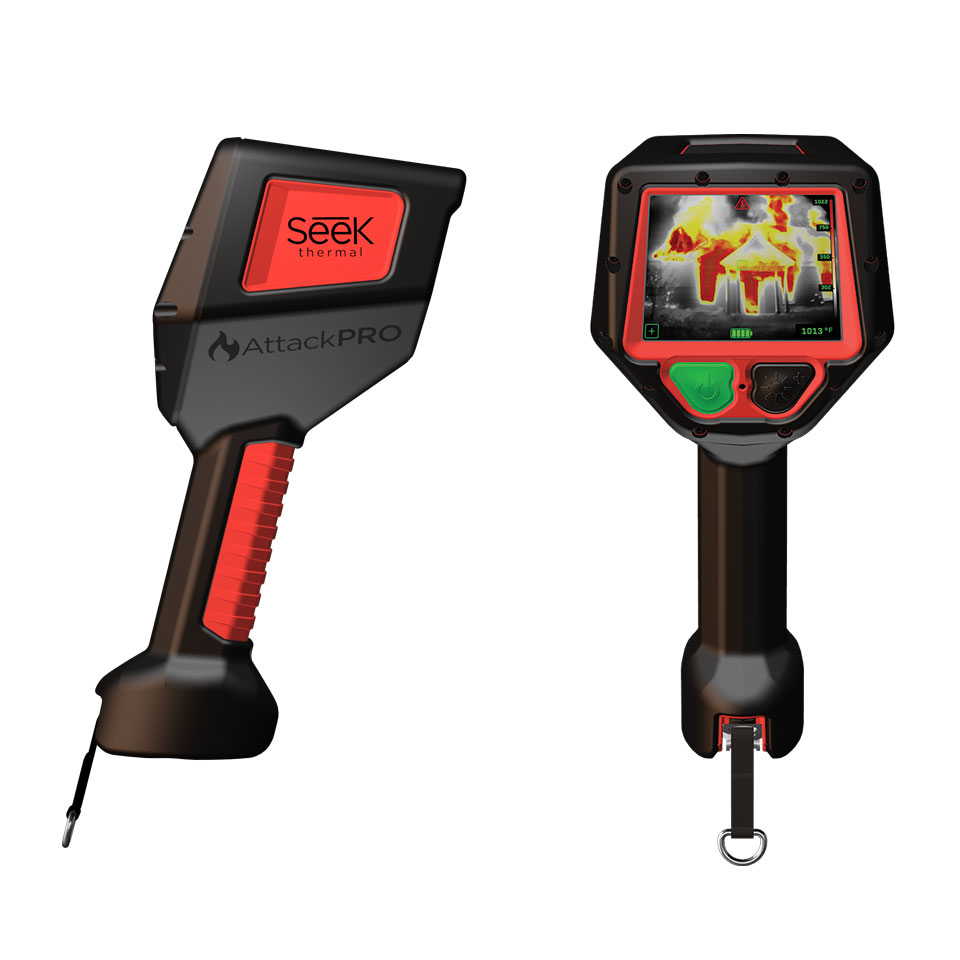

Seek AttackPRO™ is the decision-making weapon of choice for captains and commanding officers. Designed for simplicity and durability, AttackPRO is built to withstand drops and extreme temperatures. Find the seat of the fire, direct primary search crews, and effectively attack the fire with enhanced clarity and detailed colourization.
Seek’s Dual-Gain pixel technology eliminates the confusion and visual disruption of switching between high-gain and low-gain modes. Clearly see the fire and the crew – all in one fully dynamic image.
Features
- 360 Size Up - Locate the fire, build your plan, and execute with confidence.
- Primary Search - Clearly view and direct interior search crews during oriented search operations
- Fire Attack - See the fire and the crew clearly in one dual-gain mode.
- 320x240 Sensor - Enhanced clarity and colorization displayed at 25Hz
- Highly Durable - IP67 with operating temp up to 500°F (260°C)
- Waterproof Design - Durable and reliable design built with IP67 rating
- Wide, 57-Degree Field of View - Easily scan a large area to identify hazards or victims in seconds
- Long-Lasting Rechargeable Battery - Greater than 6 hours of continuous thermal imaging
- Simple Operation. Purpose-Built for the Fire Ground - One button thermal operation, no confusing menus or settings, Get the job done efficiently and consistently
Specifications
- 320 x 240 (76,800 pixels) Thermal Sensor
- 32° Field of View
- 12 inches to 1,000 feet Detection Distance
- 57° HFOV, 42° VFOV Field of View
- -4 to 1,022°F (-20 to 550°C) Temperature Range
- Operating Temperature:
- -4 to 131°F (-20° to 55°C) - no time limit
- up to 302°F (150°C) - max 15 min
- up to 500°F (260°C) - max 5 min
- > 25 Hz Fast Frame Rate
- IP67 Waterproof Rating
- 300 Lumen LED Flashlight
- 3.5" Color with Corning® Gorilla® Glass Display
- < 70 mK Thermal Sensitivity
- 2 tactile button operation
- Fahrenheit or Celsius Temp. Display Scale
- 2 Options Image Modes:
- TIBASIC (default) - Maintain your situational awareness with a simple and decluttered display showing greyscale and colorized regions
- TIBASIC+ - Enhance your tactics with a spot temp readout while still maintaining greyscale and colorized regions
- Battery runs >6 Hours Thermal Imaging (w/o flashlight); >3hrs (with thermal AND flashlight)
