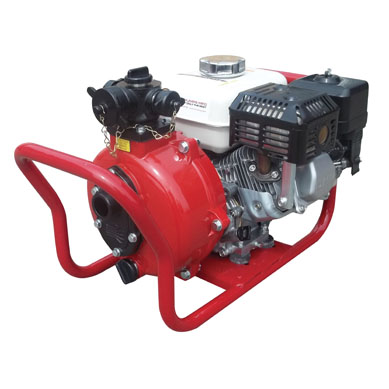

The Goliath model is a compact pump that delivers amazing pressure performance so as to meet the needs of several applications
Also available in skid version
ENGINE SPECIFICATIONS
- GX200 Honda air cooled
engine
- Single cylinder,
4-stroke gasoline engine
- Manual recoil start
- 0.8 gallon (3.1L) integrated fuel tank
INCLUDED ACCESSORIES
PUMP UNIT SPECIFICATIONS
- C.E.T. dual stage
centrifugal pump
- Pump body made from
aluminum
- Aluminum impeller
- Mechanical shaft seal
- Self priming system
- Two 1” (25 mm) delivery outlets and one 1.5” (38 mm) NPSH delivery outlet
- One 1.5” (38 mm) NPSH suction inlet
- Dimensions:
Length: 19” (483 mm)
Width: 17” (406 mm); Height: 16” (381 mm)
- Wet weight:
76 lbs (34 kg)
PERFORMANCE
MAX FLOW: 75 GPM
MAX PRESSURE: 140 PSI
70 GPM @ 10 PSI
65 GPM @ 50 PSI
45 GPM @ 100 PSI
35 GPM @ 125 PSI
LIMITED WARRANTY
