Mini leak sealing bags are used for sealing leaks in small tanks and barrels. Simply strap the bag to the container or pipe and inflate to initiate a seal.
- Flexible design
- Easy positioning
- Low air requirement

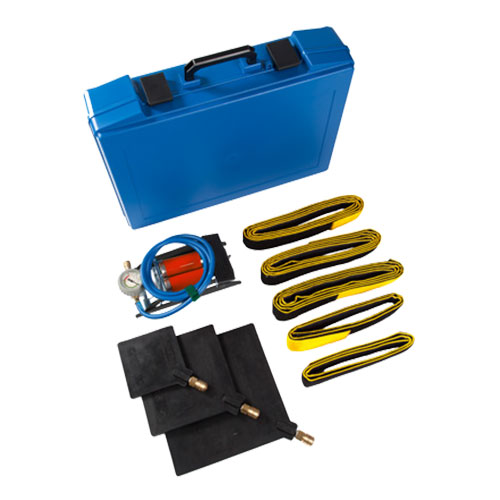

Components:
| PART NUMBER | DESCRIPTION | QUANTITY |
| 78082 | Type T1 Sealing Bag | 1 |
| 78096 | Type T2 Sealing Bag | 1 |
| 78099 | Type T3 Sealing Bag | 1 |
| 528873 | Foot-operated pump with safety valve 1.5 bar (22 psi), 2.9 kg (6.4 lbs) | 1 |
| 60167 | Fastening belts, 150cm (5’) long, yellow, 0.2 kg (0.44 lbs) | 2 |
| 60169 | Fastening belts, 300cm (10’) long, yellow, 0.4 kg (0.88 lbs) | 3 |
| 528871 | Portable case Type 2, 609 x 409 x 140 mm (24” x 16” x 5.5”), 3.5 kg (7.7 lbs) | 1 |
TECHNICAL DATA
| TYPE | PART NUMBER | DIMENSIONS | WEIGHT | WORKING PRESSURE | SEALING SURFACE DIMENSIONS | SEALING PRESSURE | AIR REQUIREMENT | |||
|---|---|---|---|---|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | LENGTH | WIDTH | ||||||
| cm (inch) | cm (inch) | cm (inch) | kg (lbs) | bar (psi) | cm (inch) | cm (inch) | bar (psi) | l (cu./Ft.) | ||
| T1 | 78082 | 15 (6) | 15 (6) | 1.2 (1) | 0.4 (1) | 1.5 (22 | 10 (4) | 10 (4) | 1.4 (20) | 1.2 (0.04) |
| T2 | 78096 | 22.5 (9) | 22.5 (9) | 1.2 (1) | 0.8 (2) | 1.5 (22) | 17.5 (7) | 17.5 (7) | 1.4 (20) | 4.5 (0.2) |
| T3 | 78099 | 30 (12) | 30 (12) | 1.2 (1) | 1.4 (3) | 1.5 (22) | 25 (10) | 25 (10) | 1.4 (20) | 10.5 (0.4) |
