The tool of choice for Extrication, Heavy Rescue, Forcible Entry, RIT/RIC, procedures as well as Stabilization and Shoring.

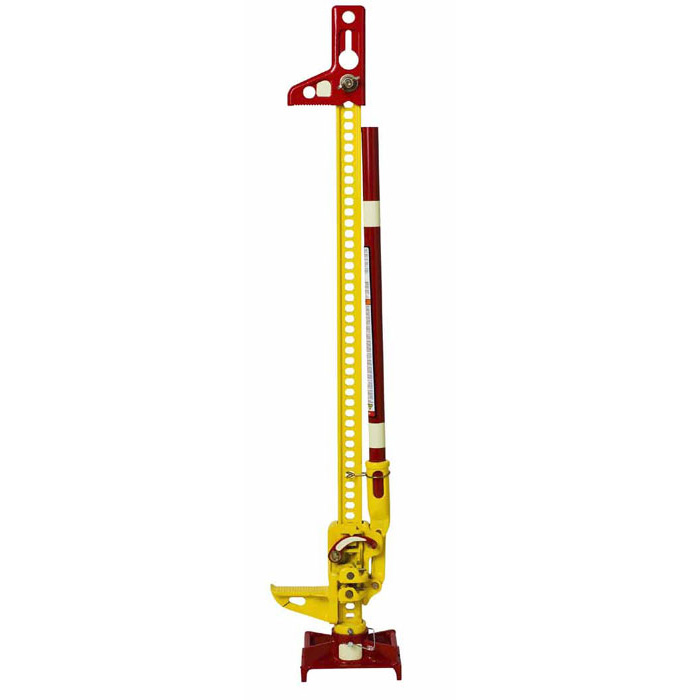

Firefighter-designed,
the First Responder Jack is constructed of steel, cast iron, and
high-strength aluminum, and available in 36", 48", and 60" sizes. It
offers up to 4,660 lb. of leveraging, lifting, and winching options.
No
other rescue tool is as easy to use, dependable, visible, and versatile
— giving it unlimited potential at a fraction of the cost of other

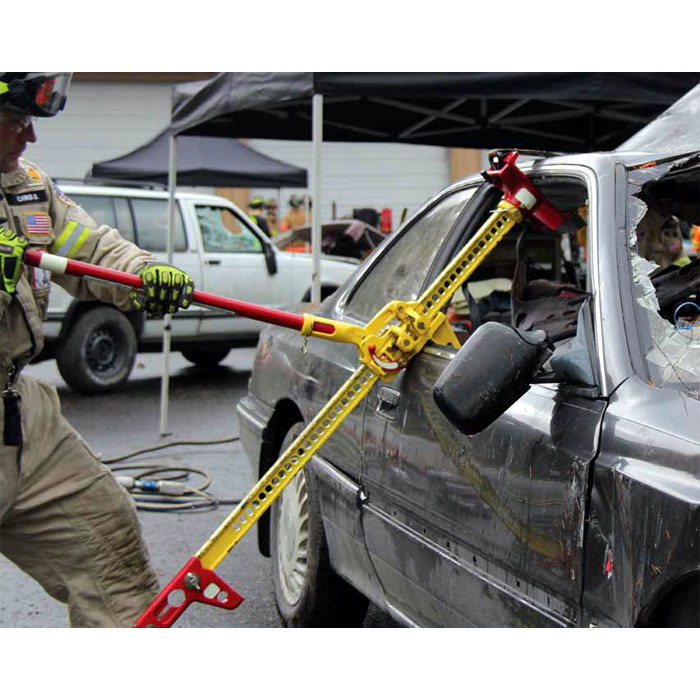

expensive rescue tools. The First Responder Jack offers the same
spreading and ramming options used in extrication as the expensive
hydraulic tools at a fraction of the cost. It requires no fuel or power,
which makes it ideal for remote access with limited resources, and USAR
applications in all types of disasters.
From
being first on-scene at a rural accident to deploying RIT for a
firefighter down during a structure fire, or searching for victims at
the largest of incidents, there is no tool in the fires service that
offers more versatility than the First Responder Jack.
Features
- Removable
top clamp-clevis attachment is rated to the full capacity of the jack
for winching, clamping and spreading
- Durable powder-coated bright yellow
main components with fire red actuating pieces
- Safe Use Information
including rated load details and operating instructions

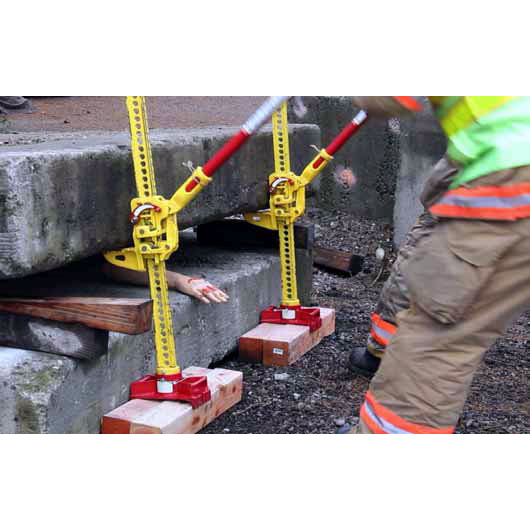

- Aggressive 36 sq.
inch base provides a safe and effective platform, while offering a wide

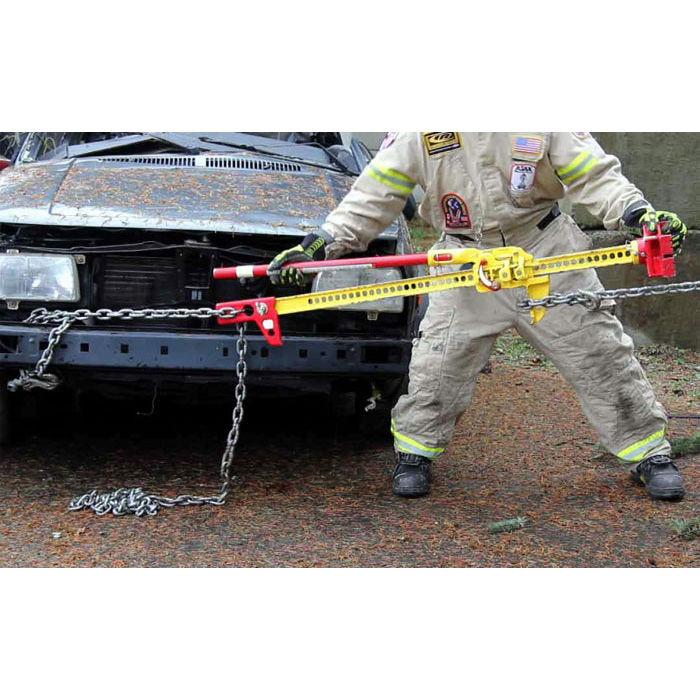

array of rescue options that encompass: cribbing, chains, straps, and
has a 360 degree pinnable rotation platform

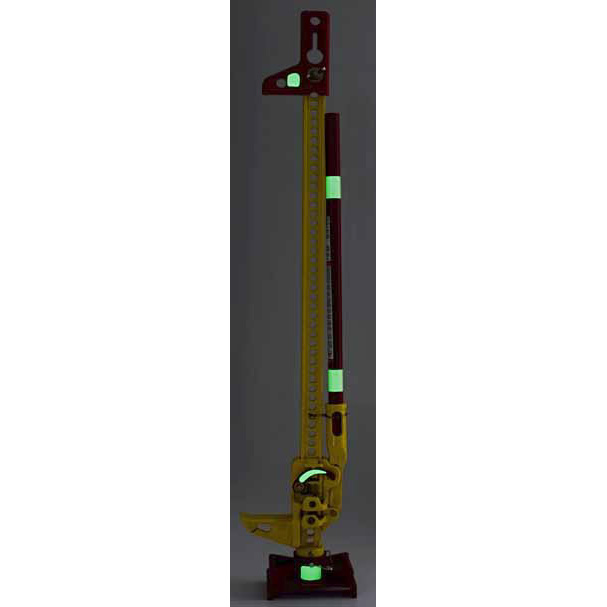

- Luminescent features for use
in IDLH and low light atmospheres
Specifications
| | 36" (91cm) | 48" (122cm) | 60" (152cm) |
| Min. Lift Height | 6.75" (17.5cm) | 6.75" (17.5cm) | 6.75" (17.5cm) |
| Max. Lift Height | 27" (69cm) | 38.6" (98cm) | 49.75" (126cm) |
| Overall Height | 41" (104cm) | 50.75" (129cm) | 61.75" (157cm) |
| Width | 5" (13cm) | 5" (13cm) | 5" (13cm) |
| Depth | 9.6" (24.5cm) | 9.6" (24.5cm) | 9.6" (24.5cm) |
| Rated Load (RL) | 4,660lbs. (2,113kg) | 4,660lbs. (2,113kg) | 4,660lbs. (2,113kg) |
| RL on upper 12" (30.5cm) | - - | - - | 2,660lbs. (1,206kg) |
| Tested Load (TL) | 7,000lbs. (3,175kg) | 7,000lbs. (3,175kg) | 7,000lbs. (3,175kg) |
| TL on upper 12" (30.5cm) | - - | - - | 4,000lbs. (1,814kg) |
| Winching capacity | 7,000lbs. (3,175kg) | 7,000lbs. (3,175kg) | 7,000lbs. (3,175kg) |
| Clamping capacity | 7,000lbs. (3,175kg) | 7,000lbs. (3,175kg) | 7,000lbs. (3,175kg) |
| Weight | 27lbs. (12.25kg) | 30.2lbs. (13.7kg) | 33.3lbs. (15.1kg) |
