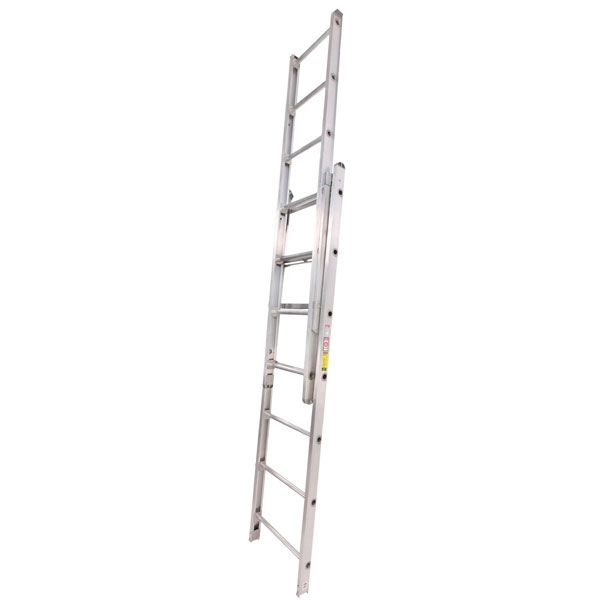

Ideal for indoor fire fighting. In attics and other confined spaces, this sturdy, ruggedly constructed ladder can be quickly and easily changed from a step to an extension. Extra strong rails and rungs are typical of the heavy duty construction that means extra safety and service provided by this practical, versatile ladder.
- 2-3/4" Channel Rail
- 750 lb Duty Rated
- Prong Feet as Standard
- Rubber Safety Shoes Optional for Hard Surface Use
|Size||Closed Length||Height as Step Ladder||Length Extended||Width***||Banking Thickness**||Weight*|
|8'-13'||8' 2.25"||7' 6"||13'||23.25"||5.68"||42 lbs|
|10'-15'||9' 10.875"||9' 6"||15'||23.25"||5.68"||47 lbs|
All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125" due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please call our office and request a copy of our current field dimension sheets.
* Weight listed is actual weight of product only. For shipping purposes, please call our office for packaged weight before obtaining freight estimates.
** Overall banking height including rivet heads and spreader bar = 6.43"
*** Overall width including bolt heads on hinge brackets = 23.75"
