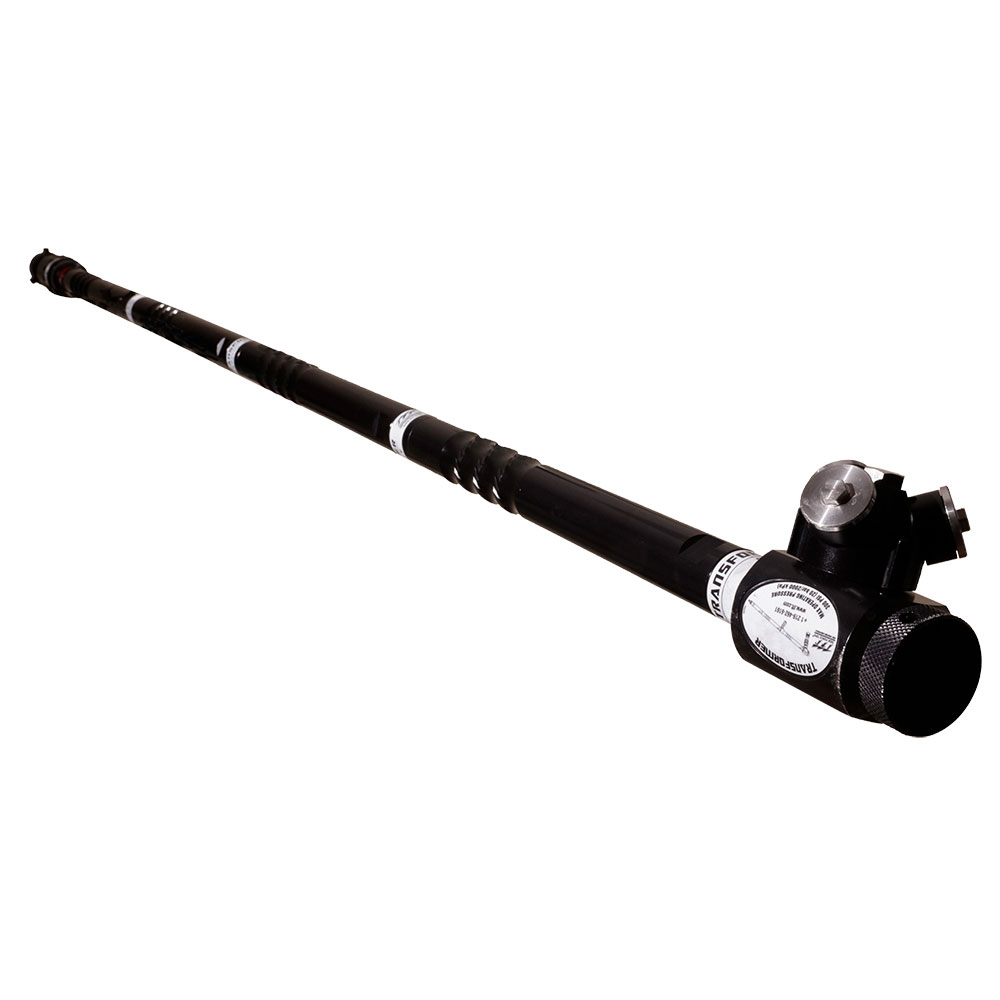

The Transformer Nozzle System EV-Kit is designed to help you deliver water to the underside of an electric vehicle where the battery is stored. The system over 7’ long (2.2 meters) and weighs only 14.9 pounds (6.8 kg) when fully assembled. The added extension tubes allow your crew to put space between themselves and the fire.
The included distributor nozzle provides a wide fully filled pattern capable of flowing up to 150 GPM (570 LPM) at 100 PSI (7 bar) and allows water to map across the battery compartment for effective cooling. The twist-grip shutoff valve regulates flow without the need for an additional shutoff valve.
Each EV Kit comes with the following
- Three port junction block with striking cap
- Distributor nozzle (also known as a Bresnan or cellar nozzle)
- Four 19" (.5 meter) extension tubes
- Twist-grip shutoff valve
- Heavy-duty carrying bag with compartments
Features & Benefits
- Flow up to 150 GPM (570 LPM)
- Twist-grip shutoff valve
- Cellar nozzle with fully filled wide pattern
Check the FAQ's under the Documents tab

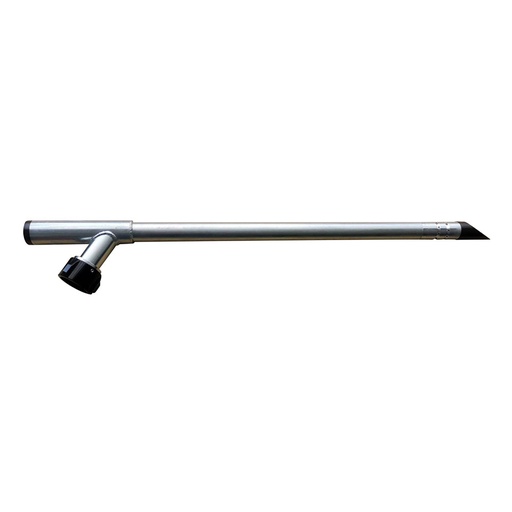

Can I Turn my Piercing Nozzle Kit into an EV Kit?
You can order the following parts to convert your existing kit into an EV Kit!
-
If you own the Deluxe Transformer Kit, order two P-6687 PA11 (19" 0.5 m) extension tubes
-
If you own the Standard Transformer Kit, order one P-9310 PA26 (Distributor Nozzle Head) and two
P-6687 PA11 (19" 0.5 m) extension tubes
