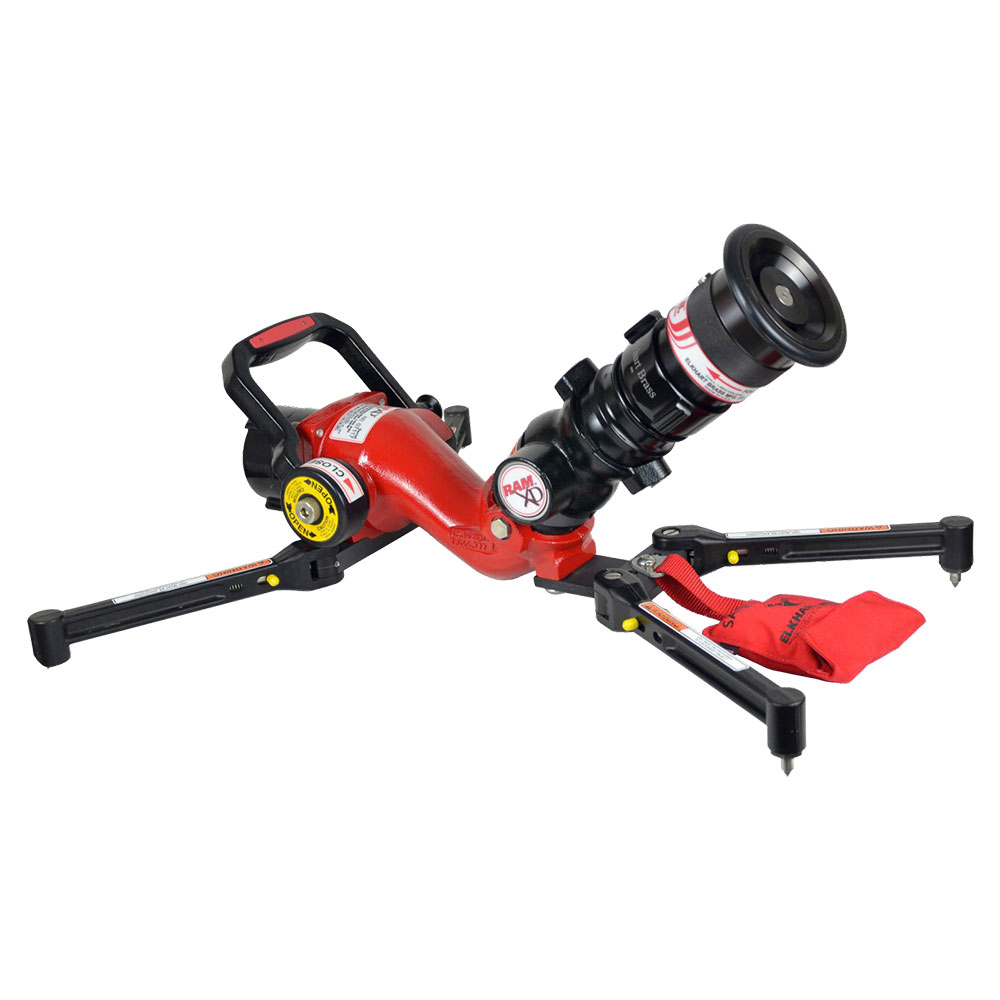

Elkhart RAM XD Portable Monitor Package

https://www.wfrfire.com/web/image/product.template/294/image_1920?unique=7a39874

This product is no longer available.

Nozzles/Monitors

The RAM XD is easily deployed and operated by a single firefighter. Its patented hydraulic stability system harnesses reaction force to stabilize the monitor. Four fold-out forged aluminum legs with carbide-tipped ground spikes extend to the largest footprint in its class for exceptional stability. The rear ground spikes are angled to help the carbide tips grip the ground surface. The RAM XD can be carried while attached to a charged line. Exclusive patented design lowers friction loss and produces consistent stream quality in all ranges of motion. The RAM XD can be stored pre-connected and features an ergonomic U-shaped valve handle. Attached safety strap includes storage pouch.

Features

  • Easily deployed and operated by a single firefighter
  • Patent pending hydraulic stability system harnesses reaction force to stabilize the monitor
  • Four fold-out forged aluminum legs with carbide-tipped ground spikes extend to the largest footprint in its class for exceptional stability
  • Rear ground spikes are angled to help carbide tips grip the surface
  • Lock pin holds valve in a closed position to prevent accidental opening, allowing the R.A.M. to be carried attached to a charged line
  • Patent pending design lowers friction loss and produces consistent stream quality in all ranges of motion
  • Can be stored pre-connected
  • Ergonomic U-shaped valve handle
  • Attached safety strap includes storage pouch
  • Built-in vane for improved stream quality
  • Counter balance system maintains vertical nozzle position from any angle
  • 500gpm
  • 150 psi

Package Includes:

  • Storage Bracket
  • 1-3/8" Deluge Tip 181-A

  • Mini Stream Shaper 282-A

Additional options available upon request:

  • Stacked Tips ST-197A
  • R.A.N. Nozzle
  • Hydro-Foam Nozzle HF-500A
  • R.A.N. Oscillating Nozzle 3890
Product Image
Elkhart RAM XD Portable Monitor Package

Not Available For Sale
