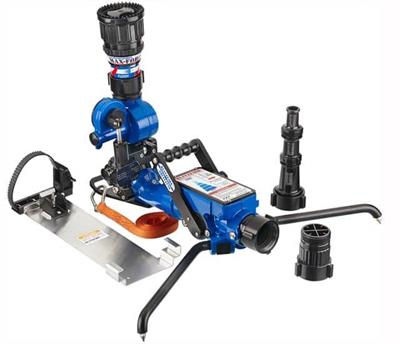

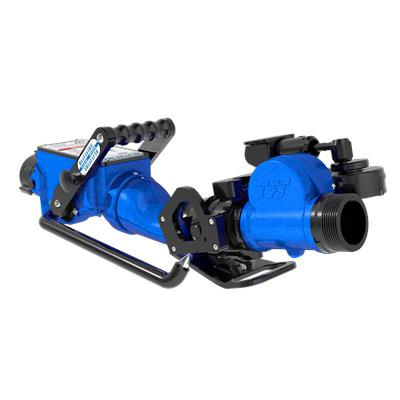

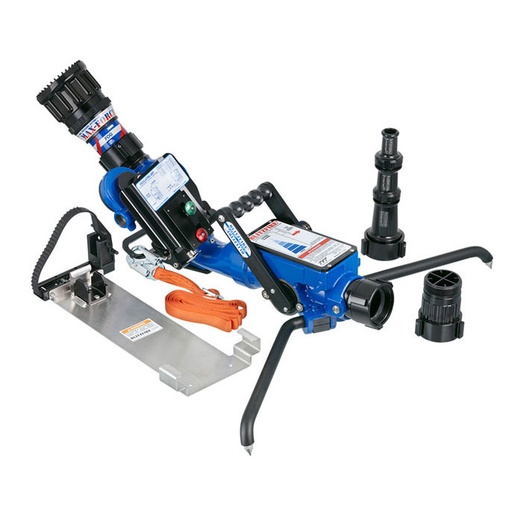

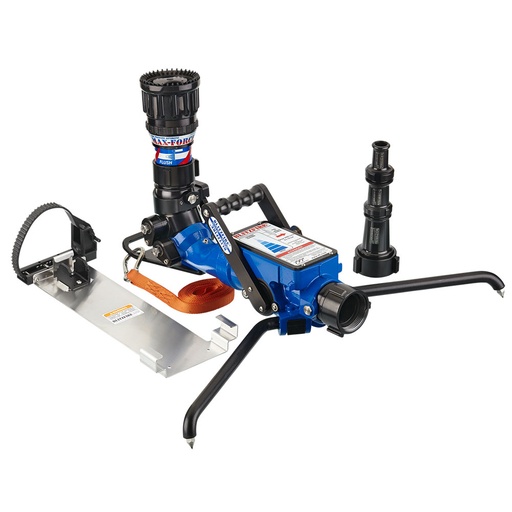

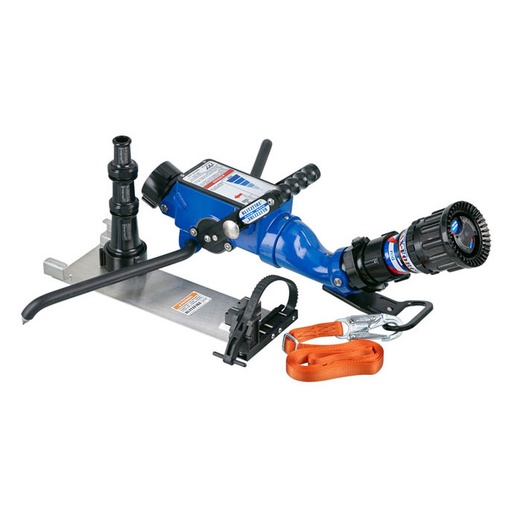

BlitzFire HE Oscillating Portable Monitor Package

Product Configuration

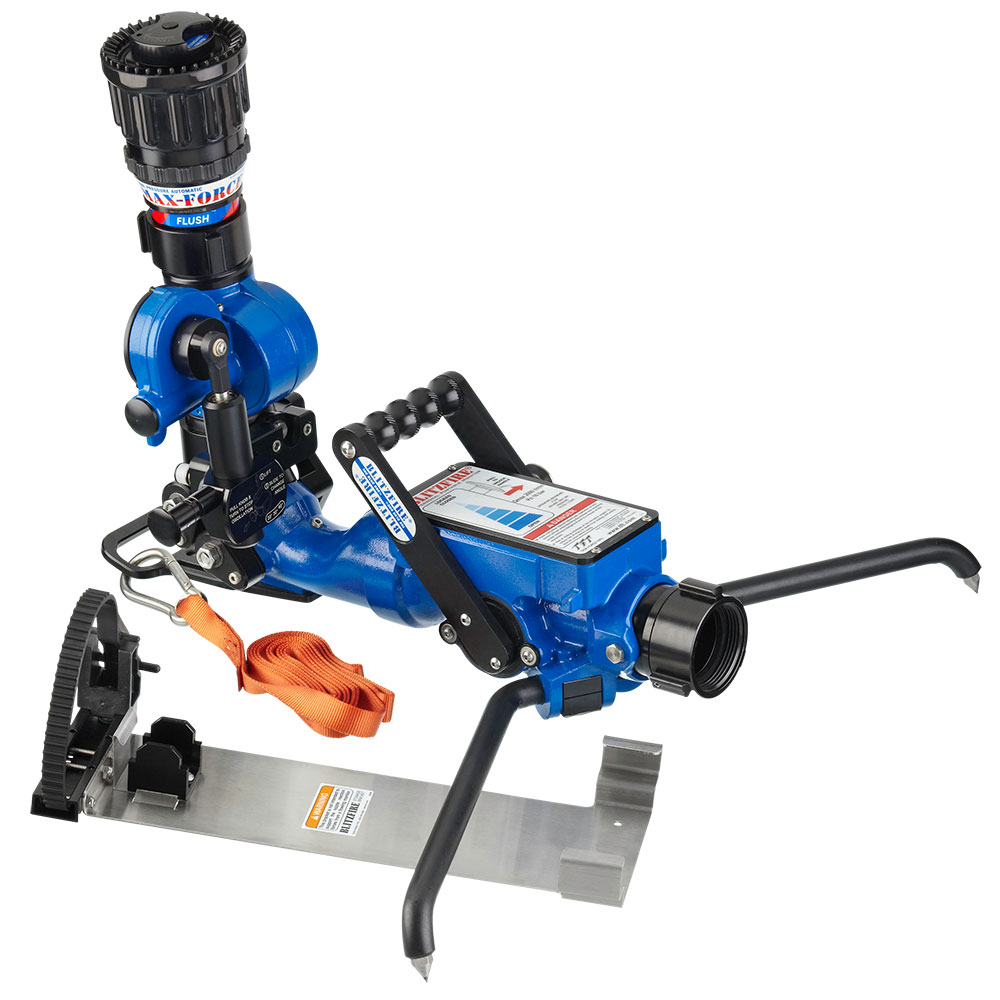

- with MaxForce Nozzle

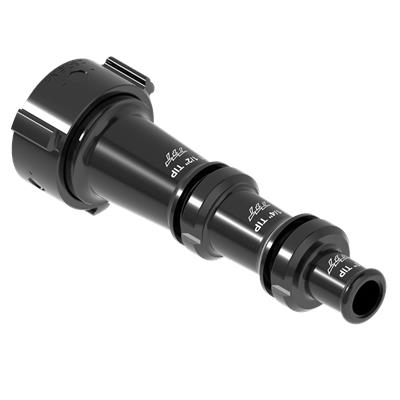

- with Triple Stacked Tips
- with Maxforce & Stacked Tips
Thread Type
- BAT
- WCT

This combination does not exist.

Nozzles/Monitors

Adding on to the Blitzfire’s amazing performance as a lightweight portable monitor, the high elevation (HE) feature allows overhead firefighting operations. Using the same reliable elevation mechanisms, the addition of the new high elevation capability is ideally suited for industrial firefighting and allow the integration of an oscillating feature.

The oscillating mechanism is re-designed so if it encounters an obstacle, it will stop without damaging the oscillating components. When the obstacle is removed, the unit will go right back to oscillating back and forth.
Automatic oscillation at 20, 30 or 40 degree sweeps
Easy to disengage and operate manually
Vertical travel from 10 to 86 degrees above horizontal
Flow range up to 500 gpm (2,000 lpm)
Good for Municipal fire departments―it allows an unmanned attack on the interior ceiling/attic space of a larger warehouse, church, custom home, etc.
Great for industrial fire brigades―you can position it to an upward 90 degree angle to attack, confine, and/or extinguish fire in overhead piping, attacking fire at high elevations such as a storage tank, and has the ability to go as low as 10 degrees to effectively contain a flange fire
TFT's unique safety shut-off valve senses movement of the unit and quickly and safely shuts off the flow. The valve's unique shut down design prevents water hammer.
Pivoting rear inlet coupling
Six detent positions allow for manned or unmanned use with a patented turbulence-free slide valve for operator flow control
Integrated stream straightener
Carbide tipped spikes for increased stability

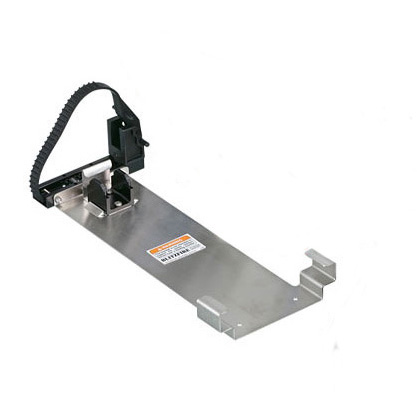

Retractable legs allow for compact mounting on apparatus and for quick deployment during use
When the legs are folded the carbide tips point up for carrying safety
Anchor strap is included for safe operation on slick surfaces like marble floors
Hardcoat anodized aluminum with a blue TFT powder coat finish inside and out
2.5" inlet (65mm)
Folded size 37.3"l x 10.5"w x 9.5"h (95cm x 27cm x 24cm)
Weighs 35lbs. (16kg)
