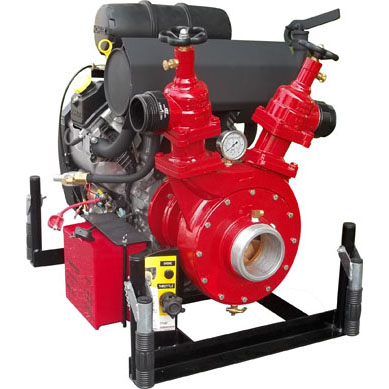

This high pressure/high volume pump is made to fight fire or supply
water to the fire scene. Engine and pump are mounted on a chassis made
of profile steel with shock absorbers and heavy duty carrying handles
ENGINE SPECIFICATIONS
- CH1000 Kohler air cooled engine
- 2-cylinder, 4-stroke gasoline engine
- 12V electric start
- 6 gallon (22 L) detachable fuel tank
INCLUDED ACCESSORIES
- 25 Amps alternator Vernier throttle 12-V Battery
- Choke control lever Pressure gauge
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from high resistant aluminum alloy
- Bronze impeller with Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system, guaranteed up to 20’(6 meter lift)
- Two 2.5" (65 mm) delivery outlet with pressure valve – specify thread
- One 4" (100 mm) suction inlet – specify thread
- Dimensions: Length: 34" (865 mm); Width: 24" (610 mm); Height: 31" (788 mm)
- Weight: 280 lbs. (127 Kg)
PERFORMANCE
MAX FLOW: 680 GPM MAX PRESSURE: 205 PSI
515 GPM @ 25 PSI
180 GPM @ 150 PSI
50 GPM @ 200 PSI
LIMITED WARRANTY
2 YEARS
