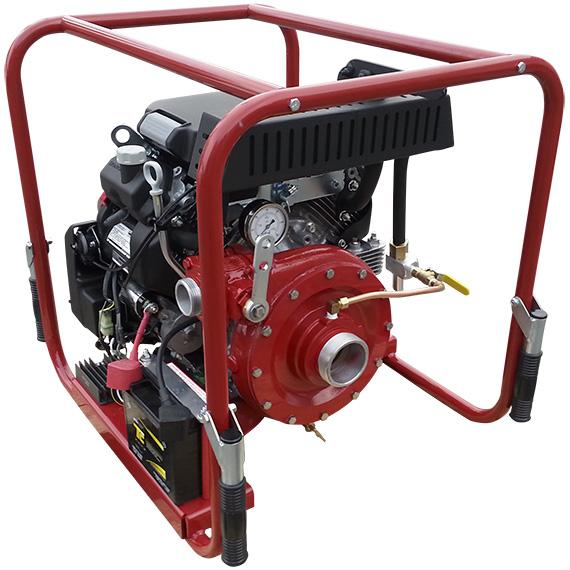

This pressure/volume pump is the most suitable for drop-in units. The
engine and pump are mounted on a steel protective frame with folding
handles. Also available in skid version
ENGINE SPECIFICATIONS
- GX630 Honda air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start
- 6 gallon (22 l) detachable fuel tank
- Charge coil 12V-17A
INCLUDED ACCESSORIES
- Low oil alert
- Pressure gauge
- 12-V battery
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1.5” (38 mm) NPSH delivery outlet with 1/4-turn ball valve
- One 2.5” (65 mm) suction inlet (BAT, WCT, NPSH, NHT, CSA)
- Dimensions: Length: 21.25” (540 mm); Width: 26.5” (673 mm); Height: 24” (610 mm)
- Weight: 183 lbs. (83 kg)
