Features:

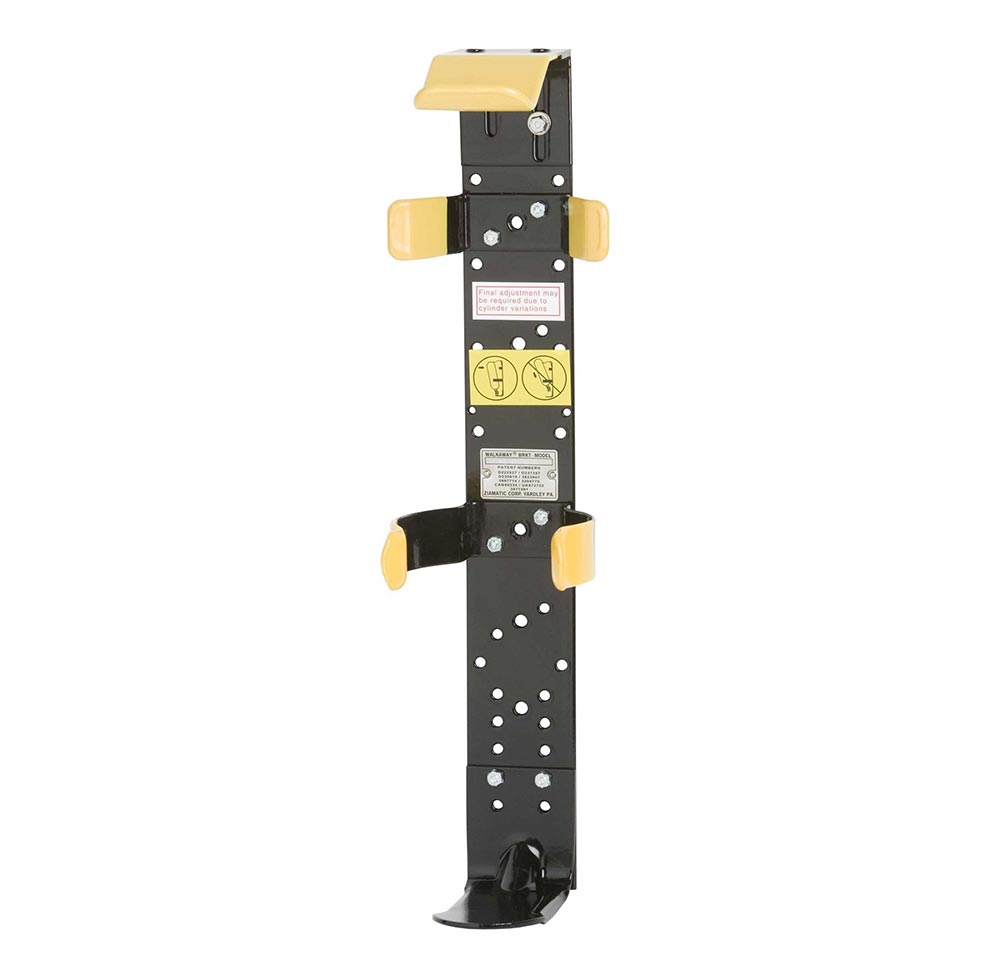

- A spring clip on the bottom half of the backplate and a seat on the upper half allow for adequate clearance around the unique harness and hoses.
- Non-mar, double coated top clip provides additional support for the upper half of the air cylinder.
- Simple, easy, and quick. To stow, simply place the valve on the footplate and push the cylinder into the clips. To remove, just pull the cylinder free
Note: Per NFPA regulations, these brackets can only be used in non-crew areas/the station unless the apparatus was manufactured prior to 2003.
Models Available:
- Model SC-50-H-5-SF: For 5.5″ diameter 4500 PSI and 30 minute 5500 PSI cylinders
- Model SC-50-H-6-SF: For 6.75″ diameter 4500 PSI and 45 minute 5500 PSI cylinders
- Model SC-50-H-7-SF: For 7″ to 7.4″ diameter cylinders
- Model SC-50-H-5-SFPHS: For 5.5″ diameter 4500 PSI and 30 minute 5500 PSI cylinders. Includes Positive Holding Strap.
- Model SC-50-H-6-SFPHS: For 6.75″ diameter 4500 PSI and 45 minute 5500 PSI cylinders. Includes Positive Holding Strap.
- Model SC-50-H-7-SFPHS: For 7″to 7.4″ diameter cylinders. Includes Positive Holding Strap.
- Model SC50-H-7-NEFPHS: For 7″ to 7.4″ diameter cylinders. Includes Long Footplate and Positive Holding Strap.
