- X-Stream Plus Fire Hose
Designed for aggressive interior attack where excellent abrasion and cut resistance are essential and where color coded attack lines are crucial.
APPLICATIONS
- Aggressive interior attack hose
- Pre-connected cross-lay and attack hose
- Pre-connected front bumper attack hose
- Compressed Air Foam System (CAFS) applications
FEATURES AND BENEFITS
- Extremely kink resistant, even at low pressure
- Features Mercedes Textiles 2-10-L warranty (“2 year All Hazards”, “10 year against manufacturing defects” and “Lifetime against delamination”)

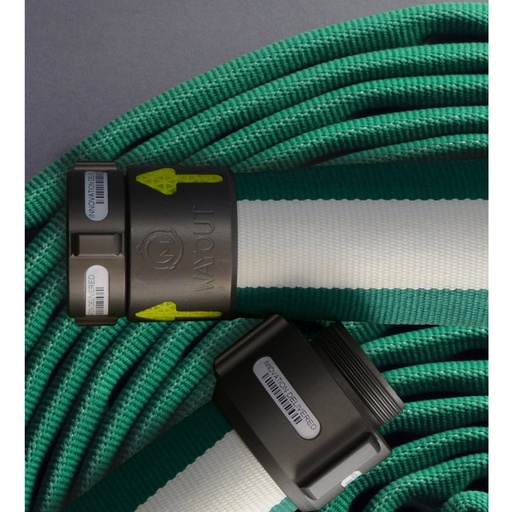

- Comes standard with Gold Anodized Mertex Wayout® couplings
- Standard with the Identify™ recessed area for color coding, bar coding and/or identification markings
- Premium all synthetic double jacket
- Standard with Technolac™ treatment in eight (8) NFPA colors options
- Remains flexible to -35º F (-36º C)
- Exceeds NFPA 1961 and UL Standard Performance requirements
X-Stream Plus 2.5" is not available in lengths over 50ft.
Hose Size (Diameter) | Service Pressure | Proof Pressure | Burst Pressure | Coil Diamter/50' | Weight/50' Uncpld |
1.75" (44mm) | 500 PSI | 1000 PSI | 1,500 PSI | 16.5" (42cm) | 18.5lbs. (8.4kg) |
2.5" (65mm) | 400 PSI | 800 PSI | 1,200 PSI | 17" (43cm) | 26.5lbs. (12kg) |
Specifications for X-Stream Plus Fire Hose
Hose Configuration | 44mm (1.75") NPSH x 50ft Red or 44mm (1.75") NPSH x 50ft Green or 44mm (1.75") Storz x 50ft -Specify Colour or 44mm (1.75") NPSH x 50ft Green w/Yellow Stripe or 44mm (1.75") NPSH x 25ft Green or 65mm (2.5") BAT x 50ft Red or 65mm (2.5") WCT x 50ft Green or 65mm (2.5") BAT x 50ft Green or 65mm (2.5") BAT x 25ft Green or 65mm (2.5") BAT x 100ft Green |
