TFT Siamese Clappered Valve 2-Way

P-7997
https://www.wfrfire.com/web/image/product.template/2442/image_1920?unique=246f4c3
  • Thread Type

This combination does not exist.


Lightweight aluminum Siamese fitting shall be provided. The fitting shall be NFPA compliant with a 900 PSI hydrostatic test rating. A clapper valve shall be centrally located at the inlet side of the fitting. The unit will have carbide tipped spikes and compatible with Crossfire Safe-Tak portable monitor base with 5” Storz inlet.

For maximum corrosion protection the aluminum casting shall be hardcoat anodized, with stainless steel components. The fitting shall have a red powder coat interior and exterior finish.

The fitting shall be configured with two (2) 2.5" female NH swivel rocker lug couplings and a 4" or 5" Storz swivel coupling and include polymer bearing strips for prevention of galvanic corrosion. The unit shall be covered by a five-year warranty.

Available options upon request:


Specifications for TFT Siamese Clappered Valve 2-Way

Thread Type 100mm (4") Storz x Two (2) 65mm (2.5") Female BAT or 100mm (4") Storz x Two (2) 65mm (2.5") Female WCT or 114mm (4.5") Male NHT x (2) 65mm (2.5") Female BAT or 125mm (5") Storz x Two (2) 65mm (2.5") Female BAT or 125mm (5") Storz x Two (2) 65mm (2.5") Female WCT or 125mm (5") Storz x Two (2) 65mm (2.5") Female NHT

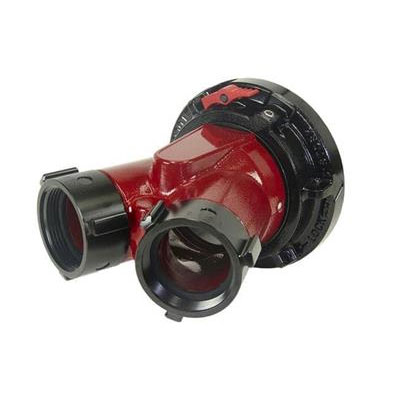

Product Image
TFT Siamese Clappered Valve 2-Way
