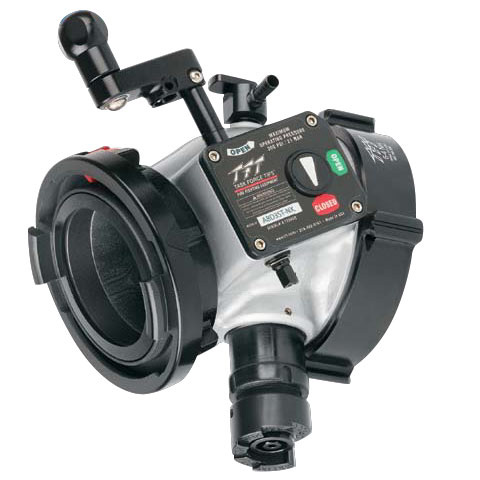

w/ Relief Valve (Low Profile) Max Operating Pressure 300 psi
Hardware
Providing
maximum flow performance in an extremely compact, this low profile
intake ball style valve delivers incredible value for critical apparatus
or industrial water supply operations. Lightweight aluminum alloy
construction is hard anodized and powder coated for maximum corrosion
resistance, even in the harshest fireground applications. An integrated
pressure relief valve offers operator selected pressure choices to
provide protection to hose and pumping systems from unwanted pressure
spikes. Unique ball style shutoff allows the valve to remain dry when
close. An air bleed valve permits unwanted air to escape simplifying
water supply pumping operations.
Features
Compact lightweight design fits easily into tight pump panel configurations
5 year warranty against corrosion
Integrated adjustable pressure relief valve provides fast reacting high volume protection from water hammers in the hose lose
Individually serialized for tracking and continued service and technical support
Highly visible valve position indicator and slow close operation exceeds all standards requirements
Flow efficient waterway has less than 5 psi loss at the rate 1,250gpm flow
30 degree low profile elbow
Other thread configurations are available upon request
Thread Type
100mm (4') Storz x 125mm (5") Female NHT or
100mm (4") Storz x 150mm (6") Female NHT or
125mm (5") NHT Male x 125mm (5") NHT Female or
125mm (5") Storz x 125mm (5") Female NHT or
125mm (5") Storz x 150mm (6") Female NHT or
150mm (6") NHT Male x 150mm (6") NHT Female
