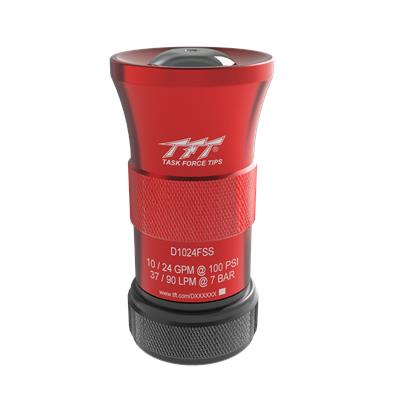

TFT Twister Barrel Nozzle

P-7997
https://www.wfrfire.com/web/image/product.template/9612/image_1920?unique=0200914

25mm (1") - 10&24 GPM Dual Gallonage w/ Shut-Off (NPSH)

    This combination does not exist.


    Features

    The Twister Barrel nozzle is a selectable dual-gallonage combination nozzle designed to meet the requirements of USFS 5100-239. The nozzle operates at 10 & 24 GPM (37 & 90 LPM) at 100 PSI (7 bar). Operators twist the front of the barrel through the following positions: off, low flow straight stream, low flow narrow fog, high flow straight stream, high flow fog.

    Features & Benefits:

    • Flow rate: 10 & 24 GPM (37 & 90 LPM)
    • Foam solution compatible
    • Knurled inlet coupling
    • No bumper

    Specifications

    Pistol GripNo
    Valve DesignTwist Style Baffle
    Flow Rate10/24 gpm (37/90 l/min)
    Break Apart StyleTip Only
    Inlet Coupling StyleKnurled
    Body Size1" (25 mm)
    Inlet Coupling SwivelRigid
    StyleBreak-Apart
    Pressure ModeSingle
    TypeSelectable
    Operating Pressure100 psi (7 bar)
    Remote ControlNo
    Weight0.5
    Bumper MaterialNo Bumper
