TFT Jumbo Ball Intake Valve 30 degree
Intake Gate Valve

IN-LINE VALVE W/O PRV PARALLEL GB A-STORZ 5" B-STORZ 5"

https://www.wfrfire.com/web/image/product.template/8891/image_1920?unique=349e063

w/ Parallel Shaft Drive TFT

CND 3,534.02 3534.02 CAD CND 3,534.02

CND 1.00

Not Available For Sale

This combination does not exist.

Hardware

Features

TFT's In-Line Valve is a multi-purpose valve designed for use with 3.5, 4, 4.5 or 5 inch (89, 100, 115, 125 or 150mm) hose. Maximum operating pressure is 250 psi (17bar). Meets 900psi (62 bar) hydrostatic strength test. The aluminum casting are Hardcoat anodized, and powdercoat finished inside and out for maximum corrosion protection. The valve meets NPFA slow close requirements. Optional adjustable pressure relief valve meets NFPA 1901 (2009 edition). Optional rugged ¾ inch (19mm) air bleed valve quickly bleeds air from the lines or drains water from the valve housing. Contact TFT customer service for configurations not shown.


Specifications

  Coupling Size Side A5" (125mm)
  Coupling Size Side B5" (125mm)
  Coupling Swivel Side ARigid
  Coupling Swivel Side BRigid
  FinishStardust Silver
  Gear Box StyleShaft on Top
  L D H InletNo
  L D H OutletNo
  MaterialLightweight Cast Aluminum Alloy
  Operation Energy SourceManual
  Pressure Relief ValveNo
  Remote ControlNo
  SizeLDH
  Valve DesignBall Valve Aluminum
  Weight23.3

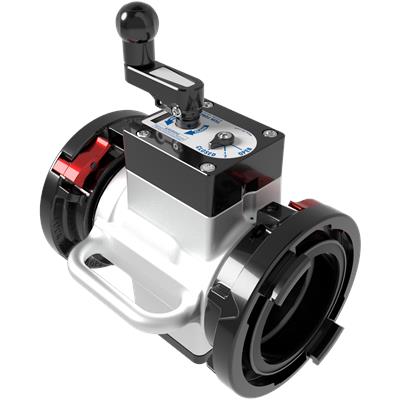

Product Image
IN-LINE VALVE W/O PRV PARALLEL GB A-STORZ 5" B-STORZ 5"

Not Available For Sale
