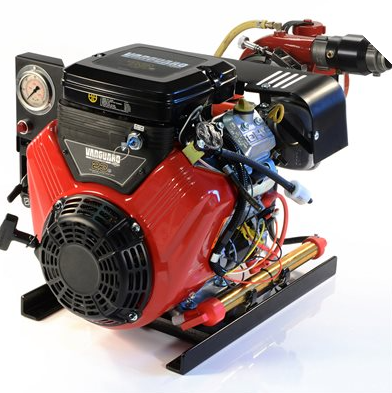

PORTABLE FOUR STAGE HIGH PRESSURE FIRE PUMP
- Powered by a 4 stroke, air cooled engine with over-speed protection
- Electric start (battery optional) with manual recoil backup
- Automotive style air cleaner and external oil filter
- Four stage foam compatible pump end, interchangeable with our 4 stage fire pumps and with our F200 two stage pump end for increased volume.
- Engine and pump are coupled with our stainless steel quick release clamp
- Maintenance-free speed increaser
- Choice of hand carrying tube frame or a channel base frame for vehicle mount
- Hand priming pump and pressure gauge included
WEIGHT & DIMENSIONS
- Length 32.0” (81cm)
- Width 19.5” (50cm)
- Height 18.5” (47cm)
- Weight 137 lbs. (62 kg)
- Suction 2.0” NPSH (50mm)
- Discharge 1.5” NPSH (38mm)

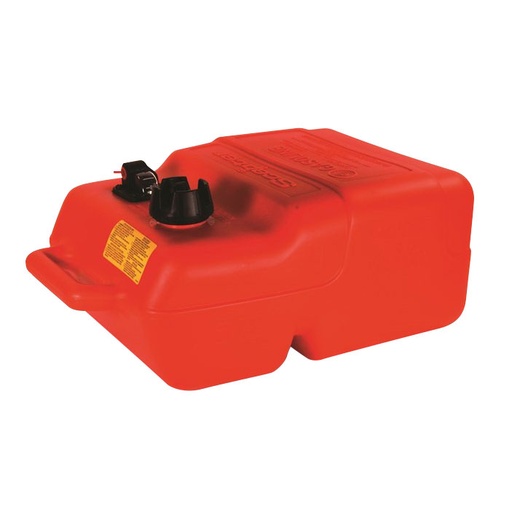

![[482020130] Fuel Tank for Forestry Pump 25L](https://cdn.wfrfire.com/web/image/product.product/520/image_512/%5B482020130%5D%20Fuel%20Tank%20for%20Forestry%20Pump%2025L?unique=b69e804)

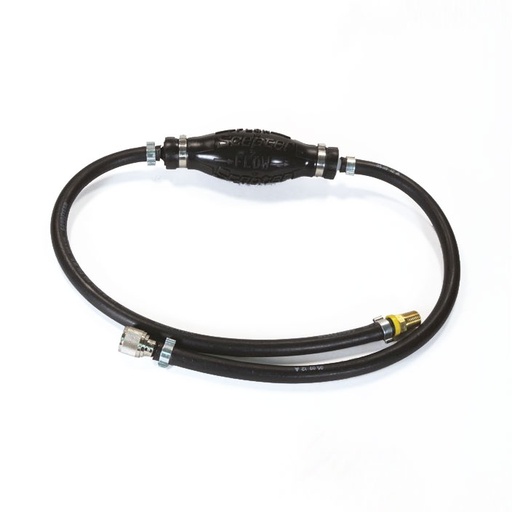

![[482020140] Fuel Line for Forestry Pump (Mercedes) (Chrysler)](https://cdn.wfrfire.com/web/image/product.product/2618/image_512/%5B482020140%5D%20Fuel%20Line%20for%20Forestry%20Pump%20%28Mercedes%29%20%28Chrysler%29?unique=b69e804)

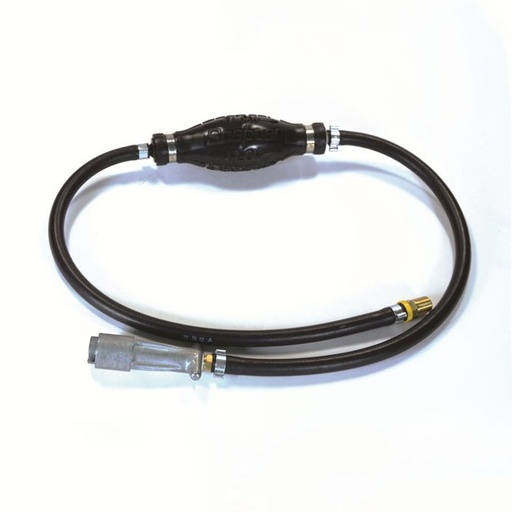

![[482020141] Fuel Line for Forestry Pump (Mercedes) (Mercury)](https://cdn.wfrfire.com/web/image/product.product/2619/image_512/%5B482020141%5D%20Fuel%20Line%20for%20Forestry%20Pump%20%28Mercedes%29%20%28Mercury%29?unique=b69e804)

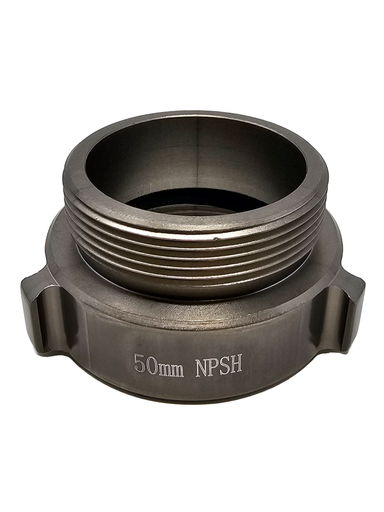

![[V-27423] Thread Protector for Fire Pumps (50mm (2") NPSH)](https://cdn.wfrfire.com/web/image/product.product/27423/image_512/%5BV-27423%5D%20Thread%20Protector%20for%20Fire%20Pumps%20%2850mm%20%282%22%29%20NPSH%29?unique=b69e804)

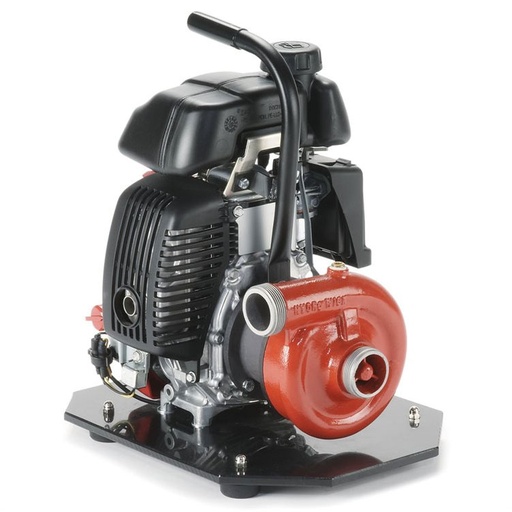

![[482010125] WICK 100-4H™ Fire Forestry Pump 2.5hp Honda 4-stroke](https://cdn.wfrfire.com/web/image/product.template/220/image_512/%5B482010125%5D%20WICK%20100-4H%E2%84%A2%20Fire%20Forestry%20Pump%202.5hp%20Honda%204-stroke?unique=b69e804)

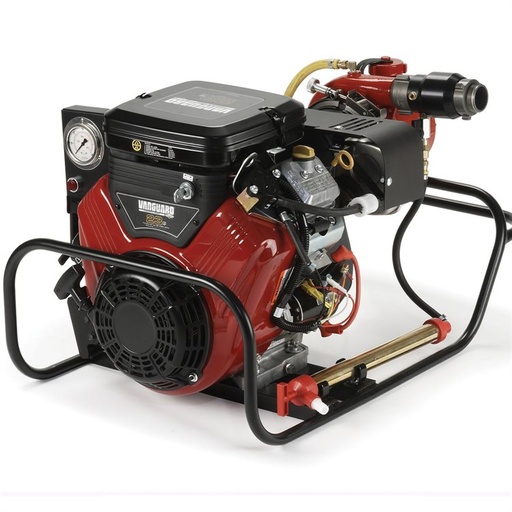

![[P-8631] WICK XP4-23 Fire Forestry Pump, 23hp, 4-stroke B&S Tubular Frame](https://cdn.wfrfire.com/web/image/product.template/8631/image_512/%5BP-8631%5D%20WICK%20XP4-23%20Fire%20Forestry%20Pump%2C%2023hp%2C%204-stroke%20B%26S%20Tubular%20Frame?unique=b69e804)
