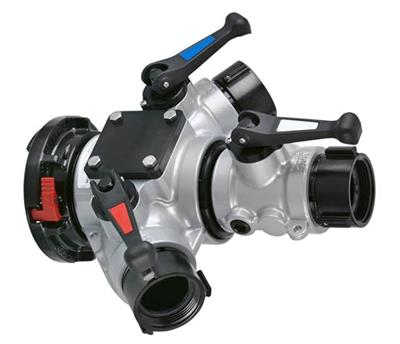

3-Way Valved Siamese Manifold is a rugged siamese manifold with three
2.5" (64 mm) valved inlet ports, each with a full 2.5" (65mm) waterway.
Maximum operating pressure is 300 psi (21 bar). Valve seats are field
replaceable. Quarter turn valve handles operate with low force to move
even under pressure. Automatic valve lock keeps its position while
flowing at partial openings. Folding handles minimize storage space.
Aluminum casting is hardcoat anodized and silver TFT Powder Coat finish
inside and out for maximum corrosion protection. Optional adjustable
pressure relief valve. Optional rugged .75" (19 mm) air bleed valve to
quickly bleed air from the lines or to drain water from the valve
housing. Contact TFT customer service for configurations not shown.
* The most common configuration listed above is with Storz swivel and female outlets
Available options upon request:
Rigid vs swivel
Pressure Relief Valve
TFT 3 Way Valved Siamese Manifold
No PRV (Pressure Relief Valve)
With PRV (Pressure Relief Valve)
100mm (4") Storz x Three (3) 65mm (2.5") BAT outlet
125mm (5") Storz x Three (3) 65mm (2.5") BAT outlet
125mm (5") Storz x Three (3) 65mm (2.5") AMA outlet
