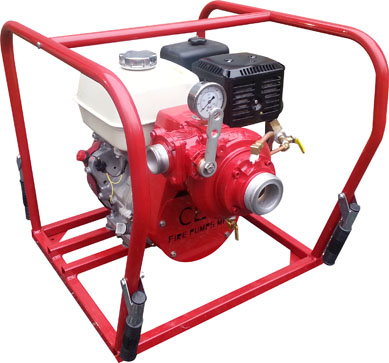

Fire Pump 11hp HP - Manual Start - CET

This light weight Honda powered pump is the most powerful on the market in its category. You get the highest volume in its range. Engine and pump are mounted on a protective frame made of steel with shock absorbers and folding handles

Also available in skid version

ENGINE SPECIFICATIONS

• Honda, model GX340, air cooled engine
• Single cylinder, 4-stroke gasoline engine
• Manual recoil start
• 1.6 gallon (6.1 l) integrated fuel tank

INCLUDED ACCESSORIES

• Pressure gauge
• Low oil alert

PUMP UNIT SPECIFICATIONS

• Transmission drive C.E.T. single stage centrifugal pump
• Pump body made from resistant aluminum alloy
• Bronze impeller with Mechanical shaft seal
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift.
• One 1.5” (38 mm) delivery outlet with 1/4-turn ball valve
• BAT, WCT, NHT, NPSH, CSA
• One 2.5” (65 mm) suction inlet
• BAT, WCT, NHT, NPSH, CSA
• Dimensions: Length: 24" (609 mm); Width: 26.75" (679 mm); Height: 23.88" (606 mm)
• Weight: 125 lbs. (57 kg)

PERFORMANCE

125 GPM @ 10 PSI, 100 GPM @ 50 PSI, 65 GPM @ 100 PSI, 35 GPM @ 150 PSI, 5 GPM @ 200 PSI

LIMITED WARRANTY

3 YEARS
