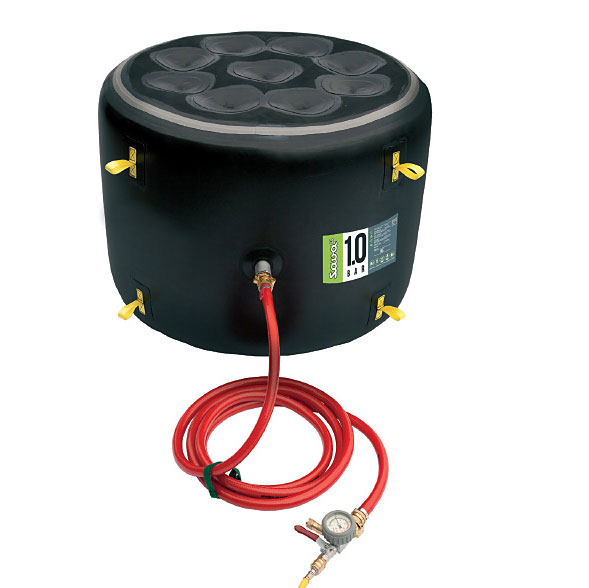

Medium-pressure
lifting bags provide high lifts. They have a soft footprint which makes
them ideal for lifting softer structures since the lifting force is
spread over a wider area
This product is only the air bag. See the connection details below and the related products to complete the set up required
Hook-up/Connection details:
- Connect SCBA bottle to regulator
- Connect high pressure hose to regulator
- Connect other end of high pressure hose to controller
- Connect low pressure hoses between controller and bags
Technical Data
| Model# | Diameter | Height | Weight | Working Pressure | Air Requirement | Max Lifting Capacity | Max Lifting Height | Inflation Valve Thread Size |
| MA | 61 cm (24") | 5 cm (2") | 17 lbs (7.5 kg) | 14.5 psi (1 bar) | 9 cu ft | 3 tons | 43 cm (17") | R 3/8"-male |
| MB | 76 cm (30") | 5 cm (2") | 27 lbs (12 kg) | 14.5 psi (1 bar) | 19 cu ft | 4.7 tons | 59 cm (23") | R 3/8"-male |
| MC | 91 cm (36") | 5 cm (2") | 33 lbs (15 kg) | 14.5 psi (1 bar) | 28 cu ft | 6.7 tons | 61 cm (24") | R 3/8"-male |
| MD | 122 cm (48") | 8 cm (3") | 77 lbs (35 kg) | 14.5 psi (1 bar) | 83 cu ft | 12 tons | 100 cm (39") | R 3/8"-male |
* Top Grid pads can be supplied upon request
