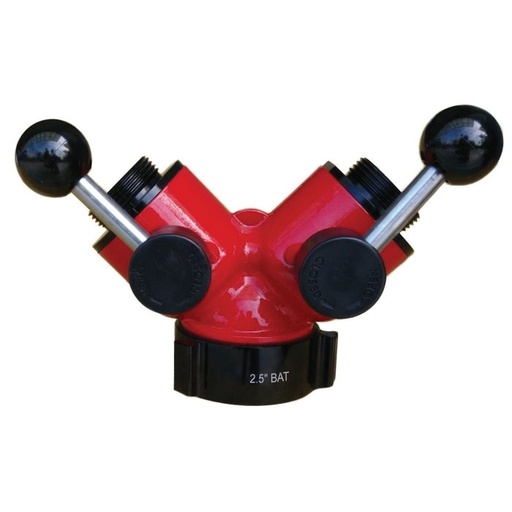

Gated Wye 315 - Parts Only

P-7997
https://www.wfrfire.com/web/image/product.template/9381/image_1920?unique=0200914
  • Product Parts

This combination does not exist.

Frontier

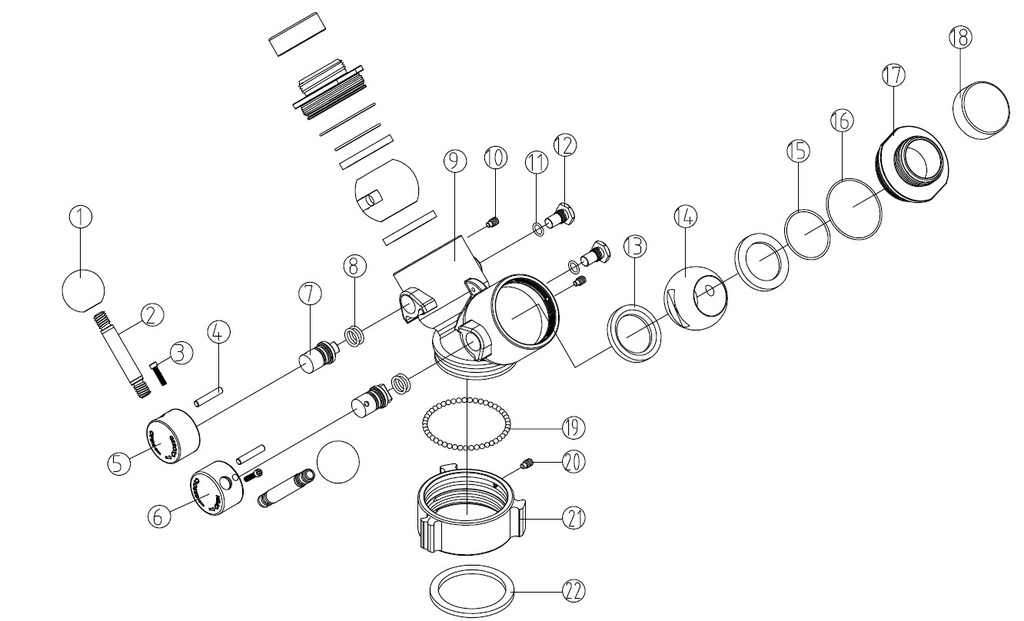

  • NO. PARTS NO. DESCRIPTION QTY
    Wye　＃315
    0010 - 14206000 Handle Ball 2
    0020 - F3201000 Handle Rod 2
    0030 - 18101050 Screw 2
    0040 - 18401130 Pin 2
    0050 - F2204010 Cap-Left hand lever 1
    0060 - F2205010 Cap-Right hand lever 1
    0070 - 22203010 Trunnion 2
    0080 - 14000360 O-Ring (P-014) 4
    0090 - 42200011 Wye Body 315 1
    0100 - 18104090 Socket Set Screw 2
    0110 - 14000350 O-Ring (P-010) 2
    0120 - 18105010 Screw 2
    0130 - 14200010 Seat 4
    0140 - 14207010 Ball 2
    0150 - 14000380 O-Ring (S-046) 2
    0160 - 14000100 O-Ring (AS-035) 2
    0170 - F2202100 Adapter 2
    0180 - F4201010 Adapter Cover 2
    0190 - 17000000 Ball Bearing 47
    0200 - 18104080 Socket Set Screw 1
    0210 - F2201110 Swivel 2.5" 1
    0220 - 14001030 Gasket 1


Specifications for Gated Wye 315 - Parts Only

Product Parts Gasket or Handle Ball or Handle Rod or Screw or Pin or Cap-Left hand lever or Cap-Right hand lever or Trunnion or O-Ring (P-014) or Wye Body 315 or Socket Set Screw or O-Ring (P-010) or Screw 18105010 or Seat or Ball or O-Ring (S-046) or O-Ring (AS-035) or Adapter or Adapter Cover or Ball Bearing or Socket Set Screw 18104080 or Swivel 2.5"
