Elevated monitors are ideally suited for problem applications that are difficult to reach from ground level with fixed or portable equipment. Typical installations include dock protection and high hazard petrochemical areas. Elevating the monitor serves high-hazard areas that may otherwise be obstructed, putting the monitor at the appropriate height to reach the target.

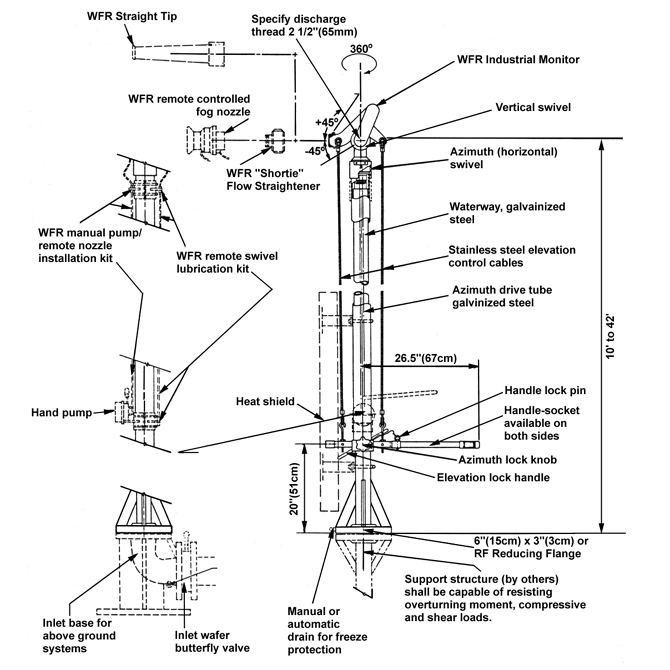

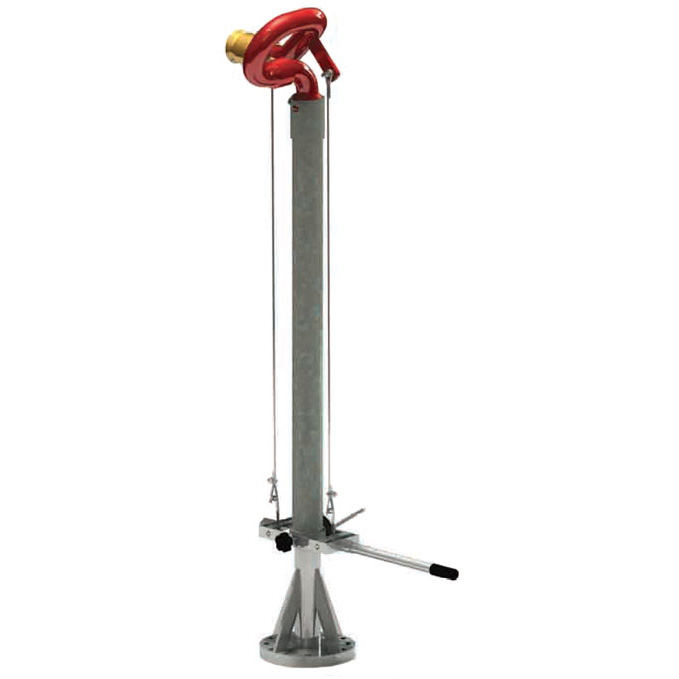

Freestanding monitors range from 10 to 42 feet (3 to 13m) depending upon the flow/distance requirement and water/pressure available for the application. Freestanding monitors have an “inner” waterway with an outer drive tube for horizontal movement at the base, along with vertical motion handle control with stainless steel cable attached to the monitor for vertical option.
- Waterways available in 2.5" (64mm), 3" (76cm) and 4" (102cm), depending on flow rate
- 360° horizontal motion ± 45° vertical motion with position locks in each plane
- Red epoxy coat monitor finish
- Galvanized steel drive tube
- Stainless steel elevation cables
- Elevation and rotation locks
- Vertical motion control handle
Options
- WFR straight tips
- Flow straighteners to maximize reach
- Above ground intake base assembly and inlet butterfly valve
- Manual hydraulic pump (for fog nozzle actuation)
- Pump to nozzle installation kit/remote swivels grease kit
- Manual drain for freeze protection
- Heat shield
Sizes:
- 15' (4.6m)
- 20' (6.1m)
- 25' (7.6m)
- 30' (9m)
- 35' (10.6m)
- 42' (12.8m)

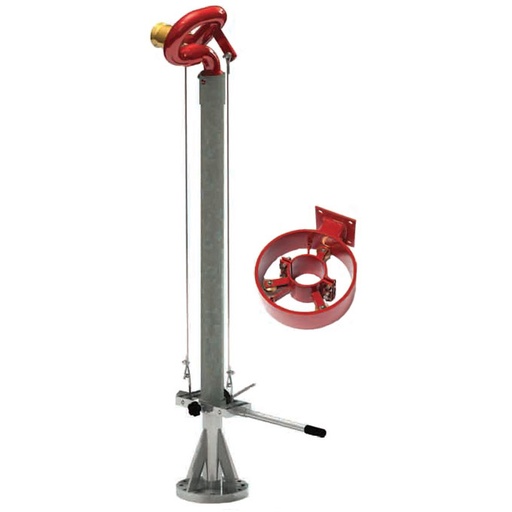

![[443515100] Supported Elevated WFR Monitor](/web/image/product.product/457/image_512/%5B443515100%5D%20Supported%20Elevated%20WFR%20Monitor?unique=8052dd1)

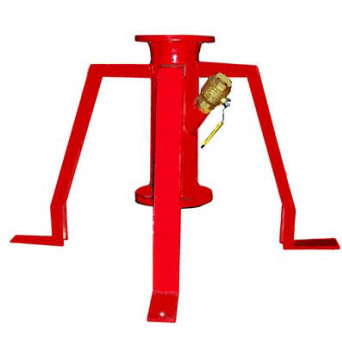

![[443525100] Elevated Monitor Support Base (4" base monitor)](/web/image/product.product/4675/image_512/%5B443525100%5D%20Elevated%20Monitor%20Support%20Base%20%284%22%20base%20monitor%29?unique=8052dd1)
![[443525310] Mounting Base for Elevated Monitor 90 degree](/web/image/product.product/454/image_512/%5B443525310%5D%20Mounting%20Base%20for%20Elevated%20Monitor%2090%20degree?unique=8052dd1)
![[463285100] Remote Control Nozzle w/ Cable Drive for Elevated Monitor (350gpm)](/web/image/product.product/4678/image_512/%5B463285100%5D%20Remote%20Control%20Nozzle%20w-%20Cable%20Drive%20for%20Elevated%20Monitor%20%28350gpm%29?unique=8052dd1)

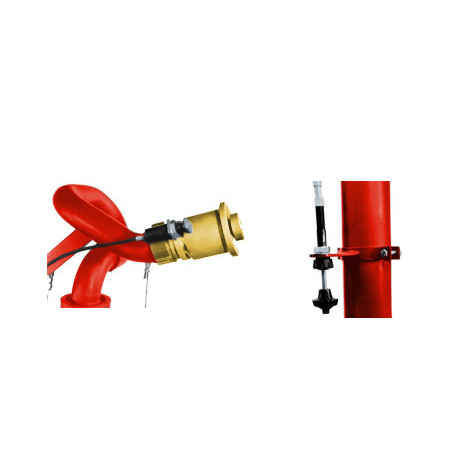

![[463290100] Push/Pull Remote Control for Nozzle for Elevated Monitor](/web/image/product.product/456/image_512/%5B463290100%5D%20Push-Pull%20Remote%20Control%20for%20Nozzle%20for%20Elevated%20Monitor?unique=8052dd1)
