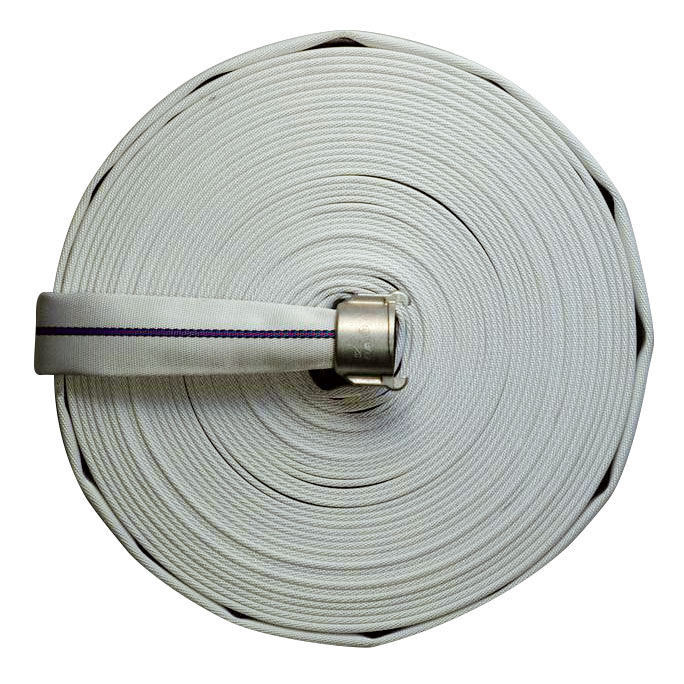

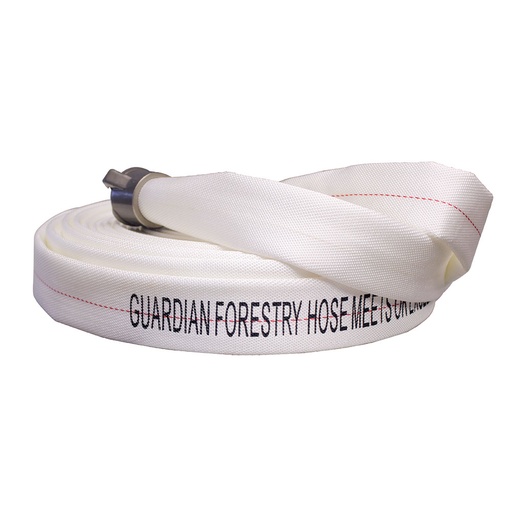

- ForestGuard II Forestry Hose
An all synthetic, tough, ULC approved, non-percolating forestry hose, perfect for handling fire fighting, tank fill or high volume feeder lines.
- Tough in ready for action but light in weight
- Patented Mertex® lining process produces an amazingly thin but smooth inner waterway, yielding an extremely low friction loss for maximum flow
- Available with Permatek™ HP treatment in a variety of colours, for even greater visibility and abrasion resistance
- Resistant to most chemicals, petrol products, ozone and UV exposure, hydrolysis, rot and mildew
- Will remain flexible to -55°C (-65°F)
- Couplings:
- Threaded: Anozided Aluminum
- QC: Forged Aluminum Merlug
- Meets or exceeds all performance requirements of NFPA 1961, Underwriter's Laboratories of Canada Spec S518.1, Factory Mutual, and USDA Spec 5100-187 for 1" (25mm) and 1.5" (38mm)
Additional options upon request:
- Available in other sizes (44mm and 65mm) and lengths
- Available in other colors: Beige, Forest green, Orange, Red, Blue, Green, Yellow, Purple
- ULC labeling must be requested is needed on the hose
- Other stenciling requests
Hose Size | Service Pressure | Proof Pressure | Burst Pressure | Coil Dia./100' | Weight/100' Uncpld |
---|---|---|---|---|---|
1" (25mm) | 300 psi | 600 psi | 1,000 psi | 14" (36cm) | 8lbs. (3.6kg) |
1.5" (38mm) | 300 psi | 600 psi | 1,000 psi | 14" (36cm) | 12lbs. (5.4kg) |
Specifications for ForestGuard II Forestry Hose
Hose Configuration | 38mm (1.5") NPSH x 25ft or 25mm (1") QC x 50ft or 25mm (1") NPSH x 50ft or 25mm (1") QC x 100ft or 25mm (1") NPSH x 100ft or 25mm (1") NHT x 100ft or 25mm (1") NHT x 50ft or 38mm (1.5") QC x 100ft or 38mm (1.5") NPSH x 100ft or 38mm (1.5") QC x 50ft or 38mm (1.5") NPSH x 50ft or 38mm (1.5") QC x 25ft or 44mm (1.75") NPSH x 100ft or 65mm (2.5") BAT x 50ft or 65mm (2.5") BAT x 100ft or 65mm (2.5") BAT x 25ft or 65mm (2.5") QC x 50ft |
