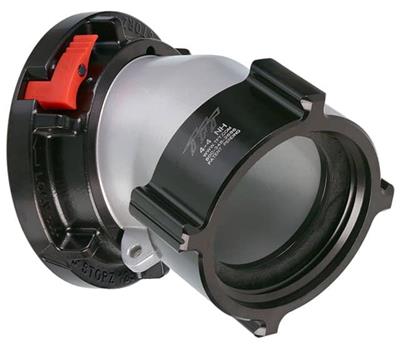

Elbow 30 degree - Storz Solid x Female Swivel (Rocker Lug)

P-7997
https://www.wfrfire.com/web/image/product.template/7532/image_1920?unique=0200914
  • Hardware Configuration

This combination does not exist.


TFT AH series Storz elbows are cast to a 30-degree down angle for easy connection and to relieve the weight of the hose when connected. Their maximum operating pressure is 300 psi (20 bar) and they are compliant to NFPA 1964 2018 edition which dictates a 900 psi (62 bar) hydrostatic strength test. The aluminum parts are hardcoat anodized per MIL-A-8625 Type III, Class 2 for maximum corrosion protection then powder coated silver. Hose couplings are attached using polymer bearing rings which provide electrical isolation to help prevent galvanic corrosion. All Storz adapters are supplied with pressure gaskets. Suction gaskets are available. All 4” and 5” Storz Rigid coupling may be switched from rigid to swivel by loosening the lock screw.



Specifications for Elbow 30 degree - Storz Solid x Female Swivel (Rocker Lug)

Hardware Configuration 100mm (4") Storz x 77mm (3") NHT or 100mm (4") Storz x 100mm (4") NHT or 100mm (4") Storz x 114mm (4.5") NHT or 100mm (4") Storz x 125mm (5") NHT or 100mm (4") Storz x 65mm (2.5") NHT or 100mm (4") Storz x 100mm (4") NPT or 100mm (4") Storz x 100mm (4") NPSH or 125mm (5") Storz x 77mm (3") NHT or 125mm (5") Storz x 100mm (4") NHT or 125mm (5") Storz x 114mm (4.5") NHT or 125mm (5") Storz x 125mm (5") NHT or 125mm (5") Storz x 150mm (6") NPT or 125mm (5") Storz x 65mm (2.5") NHT or 125mm (5") Storz x 100mm (4") NPT or 150mm (6") Storz x 125mm (5") NHT or 150mm (6") Storz x 150mm (6") NPT
Product Image
Elbow 30 degree - Storz Solid x Female Swivel (Rocker Lug)
