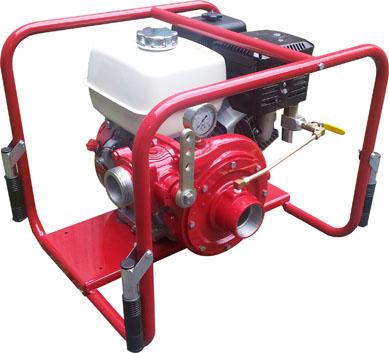

Fire Pump 11hp HV - Manual Start - CET

HONDA POWERED PUMP Model PFP-11HPHND-M

This light weight Honda powered pump is the most powerful on the market in its category. You get the highest volume in its range. Engine and pump are mounted on a protective frame made of steel with shock absorbers and folding handles

Also available in skid version

ENGINE SPECIFICATIONS

• Honda, model GX340, air cooled engine
• Single cylinder, 4-stroke gasoline engine
• Manual recoil start
• 1.6 gallon (6.1 l) integrated fuel tank

INCLUDED ACCESSORIES

• Pressure gauge
• Low oil alert

PUMP UNIT SPECIFICATIONS

• Direct drive C.E.T. single stage centrifugal pump
• Pump body made from resistant aluminum alloy
• Bronze impeller with Mechanical shaft seal
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift.
• One 2 1 ⁄2” (65 mm) delivery outlet with 1 ⁄4-turn ball valve
• BAT, WCT, NHT, NPSH, CSA
• One 2 1 ⁄2” (65 mm) suction inlet
• BAT, WCT, NHT, NPSH, CSA
• Dimensions: Length: 22" (560 mm); Width: 27-1/4" (690 mm); Height: 20-1/4" (515 mm)
• Weight: 115 lbs. (57 kg)

PERFORMANCE

• 290 GPM @ 10 PSI
• 190 GPM @ 50 PSI
• 120 GPM @ 75 PSI
• 80 GPM @ 100 PSI

LIMITED WARRANTY    3 YEARS
