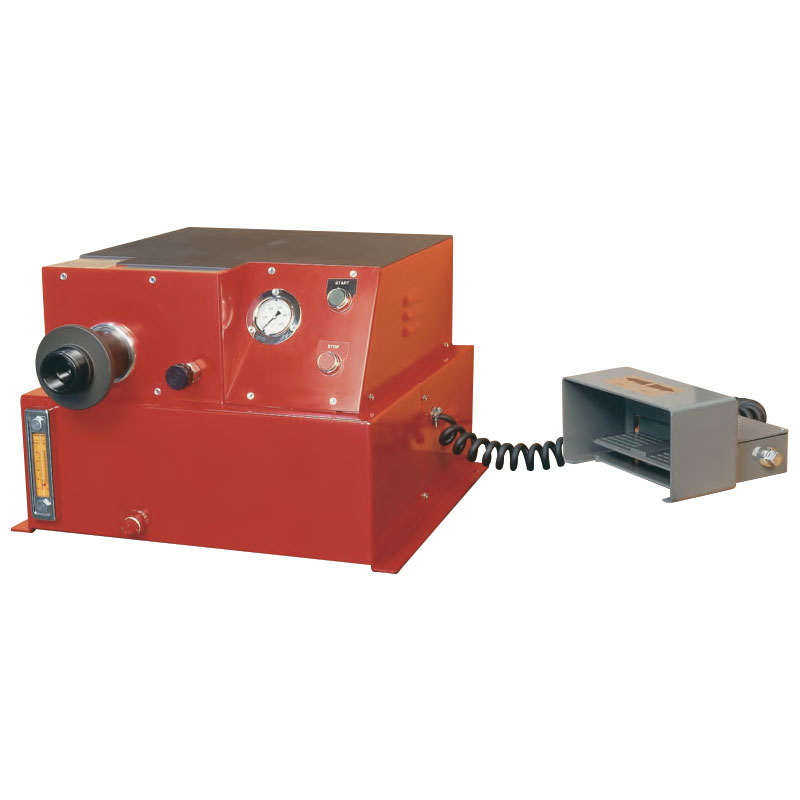

The Brute Model 2 hose expander unit is made for smooth & simple
operation. Every attachment is a secure fit, assuring a safe hose and
coupling assembly. The Brute Model 2 will come with operating
instructions, including simple diagrams to make each operation easily
Designed for hose manufacturers, high-volume distributors, and fire departments.
Used to attached 1" - 6" sized couplings.
3,000 PSI pump.
3,450 RPM motor.
1.5 HP, single phase, 220 volts.
Cylinder: 6" stroke, 4" bore.
Total Thrust: 38,000#.
Oil Capacity: 9.5 gallons.
Manually set external pressure relief valve.
Dimensions: 22" W x 22" D x 16" H
Weight: 350 lbs (158.8 kg)

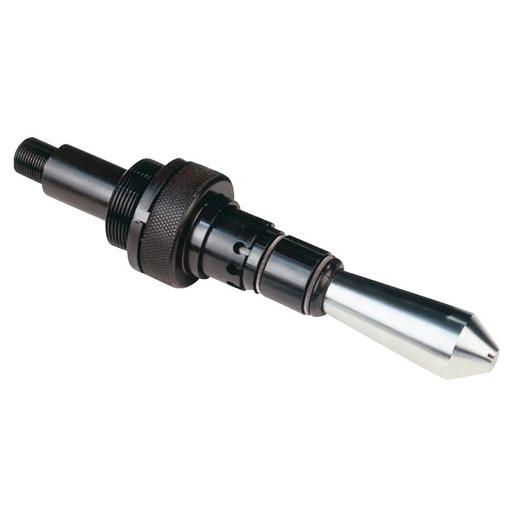

NOTE: The Brute Model 2 does NOT include any expansion unit
assemblies. They are sold separately - see Accessory Products for more
